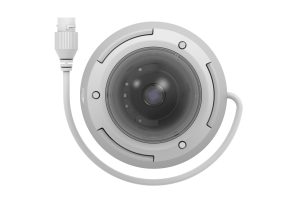

Cam5MP Dome IP67
The EnGenius Cloud Camera Cam5MP Dome (ECC100) is a cloud-managed outdoor surveillance solution for SMBs seeking scalable security. It enables seamless remote monitoring via the cloud dashboard and mobile app. This camera includes 256GB of built-in storage for reliable HD video recording, reducing reliance on traditional NVRs. Enhanced with a 5MP Sony Starvis sensor with HDR, a 132° viewing angle, and a 20m IR range, it delivers clear imaging in all lighting conditions. IP67 and IK10-rated, it is built to withstand harsh environments. Advanced AI technology detects unusual people and vehicles in real time, triggering instant alerts and enabling AI-powered searches to reduce footage review time from hours to minutes.
V1.0
1/2.8 “ Sony Starvis 5MP CMOS
Fixed 3.16mm
H: 102°, V: 71.6°, D: 132°
Built-in IR LED illumination and IR cut filter
>20m / 66ft
Manual, Pan: 0° ~ 350°, Tilt: 0° ~ 90°, Roll: 0° ~ 350°
5MP 2592 x 1944 (4:3)
20 FPS
H.265, H.264
768Kbps ~ 2.5Mbps (Optional)
AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation
AAC, G.711
Built-in, 5m / 15ft distance
Not supported
Built-in
History search, People counting
History search, Vehicle counting
Event alert
Event alert, Object counting
Event alert, Object counting
Support
256GB on board
24/7 seamless, Auto Recycling
20 days based on video bitrate
Support EnGenius NVS and Cloud storage
System power and status indicator
Supported
Internal
10/100 MbE RJ45 port
PoE 802.3af Class 2
6.1W
-20°C ~ 50°C / -4°F ~ 122°F
98％
CE, FCC
Aluminum alloy, Polycarbonate
IP67
IK10
Ø121.7 x 94.8 mm (Ø4.79 x 3.73″)
525g / 18.5oz
Chrome, Safari, Edge
Cloud To-Go on iOS and Android
Cam5MP Dome IP67 |
Cam5MP Bullet IP66 |
Cam8MP Dome IP67 |
||
|---|---|---|---|---|
| Model Number | ECC100 | ECC120 | ECC500 | |
| Resolution | 5MP | 5MP | 4K | |
| Field of View | H: 102° | H: 78° | H: 97° ~ 35.3° | |
| Optical Zoom | - | - | 3x | |
| IR Night Vision | >20m / 66ft | 30m / 98ft | 30m / 98ft | |
| Audio | Microphone | V | Microphone | |
| Object Detection and Tracking | V | - | V | |
| Object Attribute | - | - | V | |
| Facial Recognition | - | - | V | |
| License Plate Recognition | - | - | V | |
| Storage | 256GB | 256GB | 512GB | |
| Deployment | PoE | PoE | PoE | |
| Weatherproofing | IP67 | IP66 | IP67 | |
| Resistance | IK10 | - | IK10 | |
|
