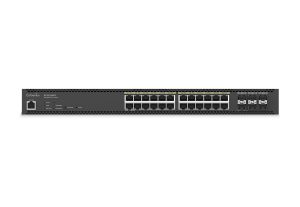

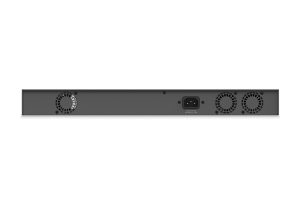

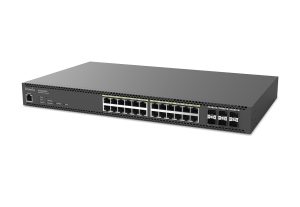

CloudSwitch MGPlus 24 Full PoE 6 SFP+

Cloud Managed 24-port 740W PoE++ Multi-Gigabit 2.5 Gb Switch with 6 x SFP+ Uplink Ports

ECS2530FP

Product Highlight

EnGenius Cloud Managed Layer 2+ Multi-Gigabit 2.5Gb Switch, ECS2530FP, provides SMBs with an easy-to-use and cost-effective network solution. With its 24-Port 2.5G PoE as well as 6-Port 10G SFP+ uplink with a 740W budget, it ensures high-speed data transfer for bandwidth-intensive applications. With zero-touch provisioning and centralized cloud management, it simplifies network management and saves time.

  • 24× 2.5G PoE Ports to unleash elevated speeds for NAS, workstations, or Wi-Fi 6 APs
  • 6× 10G SFP+ (fiber) uplink ports to high-speed NAS and servers for a high-performance network
  • 8× 802.3af/at/bt PoE++ ports, 16× 802.3af/at PoE+ ports with 740W power budget
  • Zero-touch provisioning, centralized cloud management, and visualized monitoring
  • Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
  • Robust security that supports Port-based/MAC-based ACL, Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication, and more
  • Optimized for quality voice and video traffic with Voice-VLAN feature
  • PD Lifeguard – Real-time detecting and auto-reboot PoE power for failed camera
  • Continuous PoE Power – Steady supply of PoE power for the camera during switch upgrades

Technical Specifications

Port Standards

802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control

Network Port – Multi-Gigabit Ethernet Ports

24x 100/1000/2500 Mbps Ports

Network Port – SFP+ Ports/

6x SFP+ Ports

Switching Capacity

240Gbps

SDRAM

512MB

Flash Memory

128MB

PoE Capable Ports

Ports 1-16 (802.3af/at), Ports 17-24 (802.3af/at/bt:90w)

Total PoE Budget

740w

Power Source

100 to 240 VAC, 50/60Hz

Physical Interface

System Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud
Local Web GUI

MAC Address Table

16k

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast/Unknown Unicast Storm Control

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

Operating: 5% – 95%

Dimensions & Weight

Device Dimensions & Weights

Weight: 4 kg
Width: 260mm
Length: 440mm
Height: 44mm

Package Contents

1x Cloud Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

CloudSwitch MGPlus 24 Full PoE 6 SFP+

CloudSwitch MGPlus 24 Full PoE

CloudSwitch MGPlus 48 Full PoE

CloudSwitch MGPlus 8

CloudSwitch MGPlus 8 Full PoE

CloudSwitch MGPlus 8 Full PoE

Model Number ECS2530FP ECS2528FP ECS2552FP ECS2512 ECS2510FP ECS2512FP
Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ports - 16 32 - - -
Multi-G Ports 24x 2.5G 8 x 2.5G 16 x 2.5G 8x2.5G 8 8 x 2.5G
SFP Ports - - - - - -
SFP+ Ports 6 4 4 4 2 4
RJ45 Console Ports Yes Yes Yes Yes Yes Yes
PoE Capable Ports Ports 1-16 at ; Ports 17-24 bt Ports 1 - 24 Ports 1 - 48 - Ports 1-8 Ports 1 - 8
Power-over-Ethernet 802.3af/at/bt 802.3af/at 802.3af/at - 802.3af/at 802.3af/at/bt
Total PoE Budget 740w 410W 740W - 240W 240 W
Form Factor 19” 1U 19”1U 19”1U 13”1U 13" 1U 13”1U
Switching Capacity 240Gbps 152 Gbps 224 Gbps 120 Gbps 80Gbps 120 Gbps
Packet Forwarding Rate 178.57 Mpps - - - - -
MAC Address Table Size 16k 16K 32K 16k 16k 16k
Packet Buffer Memory 1.5MB - - 512KB - 512KB
Full load Power consumption - - - 23.52 Watts - 299 Watts
PoE Extended Mode - - - - - -
PD Lifeguard Yes - - - - -
Continuous PoE Power Yes - - - - -
Dimensions 440mm x 260mm x 44mm 440 x 260 x 44 mm 440 x 310 x 44 mm 330 x 230 x 44 mm 330 x 230 x 44 mm 330 x 230 x 44 mm
Cloud Managed Mode Yes EnGenius Cloud EnGenius Cloud Yes EnGenius Cloud Yes
On-premises Managed - - - - - -
Standalone Mode Yes Yes Yes Yes Yes Yes
