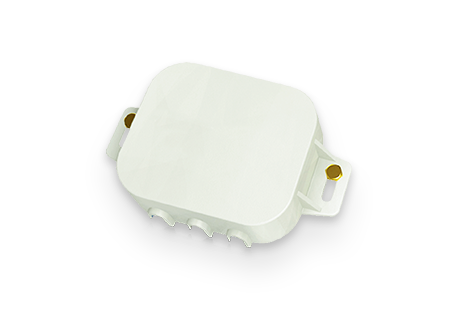

ESA-7500

Surge Arrester

Product Highlight

The unit meets or exceeds CAT5e performance for the two data pairs. In addition, the unit is compatible with 802.3af Power-over-Ethernet (PoE) devices. Integral to the design is protection for the two Ethernet data pairs and the PoE DC power feed. This unit supports normal and reverse polarity PoE.

  •  Superior lightning and surge protection
  •  Compatible with Power-over-Ethernet (PoE)
  •  Supports normal and reverse polarity PoE

Downloads

File Name Type
download iconESA-7500 Datasheet EN Data Sheet
download iconESA-7500 Quick Guide Quick Guide

Technical Specifications

Ethernet Cable Support

 10/100 Base-T CAT5 protection.

Lightening Protection

RJ-45 ; Surge absorber ES75XPA*10

PCBA components

PCB: 2-layer FR-4 , 50x40x1.6mm
EARTH PARTS INCLUDE SCREW

Environmental & Physical

Operation temperature

-20°C~ +60°C

Storage temperature

-40°C~ +85°C

Humidity

5% ~ 95% typical

Dimensions & Weight

Dimension

130 x 78 x 50mm
