Cloud7 4x4x4 S

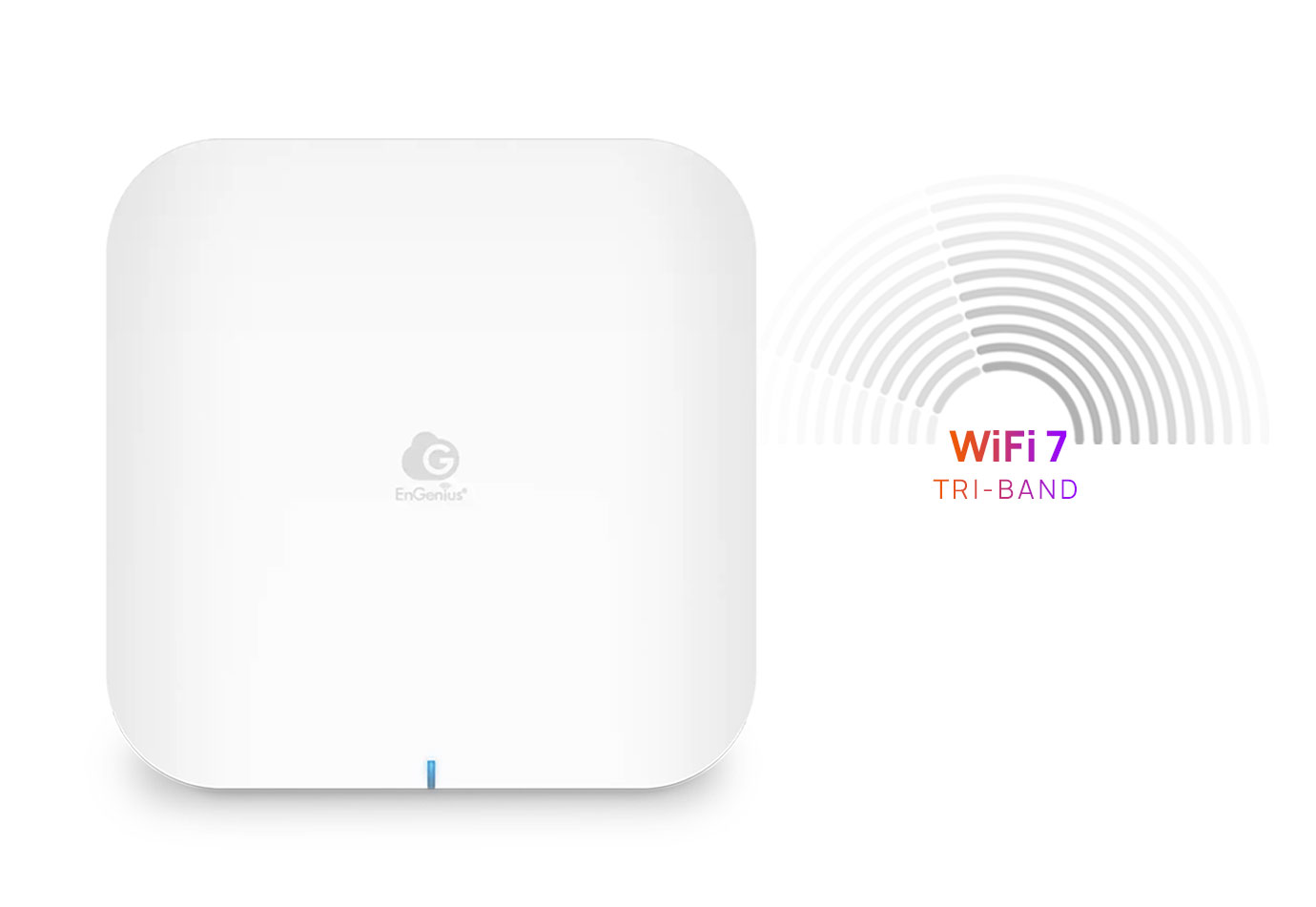

Cloud Managed Wi-Fi 7 4×4x4 Indoor Access Point

ECW536S
Tri-Band
BE19000

Product Highlight

EnGenius Cloud Managed Wi-Fi 7 4x4x4 Access Point ECW536S supports tri-concurrent 802.11be Wi-Fi 7 architecture, delivering supercharged speeds up to11,600 Mbps on 6 GHz, 5,800 Mbps (5 GHz), and up to 1,400 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

  • Tri- concurrent 802.11be Wi-Fi 7 architecture & backward-compatible
  • Supercharged speeds up to 11,600 Mbps on 6 GHz, 5,800 Mbps (5 GHz) & up to1,400 Mbps (2.4 GHz)
  • 10 GbE realizes greater throughput and supports 802.3bt and 60W PoE injector input for flexible installation over 100 meters (328 feet)
  • WPA3 & WPA2-AES authentication support
  • Wireless security detection and protection by WIPS radio
  • BLE client list by beacon scan
  • Cloud Managed with AP & Mesh mode
  • Quick-scan device register & configuration and remote monitoring & troubleshooting
  • Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
  • Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Technical Specifications

Standards

IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab

Antenna

4 x 2.4 GHz: 5 dBi (Integrated Omni-Directional)
4 x 5 GHz: 6 dBi (Integrated Omni-Directional)
4 x 6 GHz: 5 dBi (Integrated Omni-Directional)

Scanning Radio

Yes

BLE

Yes

Physical Interfaces

1 x 10GE Port (PoE++)
1 x 10GE Port
1 x DC Jack
1 x Reset Button

LED Indicators

1 x Multi-color LED

Power Source

Power-over-Ethernet: 802.3bt Input
12VDC / 3A Power Adapter

Maximum Power Consumption

37W

Wireless & Radio Specifications

Operating Frequency

Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5925 ~ 7125 MHz

Transmit Power

Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

4 × 4:4

SU-MIMO Capability

Four (4) spatial stream SU-MIMO up to 1,400 Mbps @ VHT40 (2.4 GHz)
Four (4) spatial stream SU-MIMO up to 5,800 Mbps @ HE160 (5 GHz)
Four (4) spatial stream SU-MIMO up to 11,600 Mbps @ EHT320 (6 GHz)

MU-MIMO Capability

Four (4) spatial stream MU-MIMO up to 1,400 Mbps @ VHT40 (2.4 GHz)
Four (4) spatial stream MU-MIMO up to 5,800 Mbps @ HE160 (5 GHz)
Four (4) spatial stream MU-MIMO up to 11,600 Mbps @ EHT320 (6 GHz)

Supported Data Rates

802.11be:
2.4 GHz: Max 1,400 (MCS0–MCS13, NSS=1–4)
5 GHz: Max 5,800 (MCS0–MCS13, NSS=1–4)
6 GHz: Max 11,600 (MCS0–MCS13, NSS=1–4)

802.11ax:
2.4 GHz: 9–1,148 (MCS0–MCS11, NSS=1–4)
5 GHz: 18–4,800 (MCS0–MCS11, NSS=1–4)
6 GHz: 18–4,800 (MCS0–MCS11, NSS=1–4)

802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5–600 (MCS0–MCS31)
802.11ac: 6.5–1,733 (MCS0–MCS9, NSS=1–4)

Supported Radio Technologies

802.11be/ax: OFDMA
802.11a/g/n/ac: OFDM
802.11b: DSSS

Channelization

802.11be: EHT 20/40/80/160/320 MHz
802.11ax: HE 20/40/80/160 MHz
802.11ac: VHT 20/40/80 MHz
802.11n: HT 20/40 MHz
802.11n (2.4 GHz): HT40 MHz (256-QAM)
802.11n/ac/ax: Packet aggregation (A-MPDU, A-SPDU)

Supported Modulation

802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

DFS Certification

FCC / CE / IC

AirGuard (WIPS/WIDS)

Yes

Zero-wait DFS

Yes

Dedicated Scanning Radio

Yes

Max Concurrent User

512

Client Balancing

Yes

Auto Channel Selection

Yes

Management Features

Multiple BSSID

8 SSIDs on both 2.4GHz, 5GHz and 6GHz bands

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliance With IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control

Interface

IPv4, IPv6

Local Web Access

Supports HTTP or HTTPS

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~50 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

Weight

1270g

Dimensions

Width: 230 mm
Length: 230 mm
Height: 39.5mm

Package Contents

1 – ECW536S Cloud Managed Indoor Access Point
1 – Ceiling Mount Base
1 – Ceiling and Wall Mount Screw Kit
1 – T-rail Mount kit
1 – Product Card

Regulatory Compliance

FCC
CE
IC
UKCA

Model Comparison

Cloud7 4x4x4 S

Cloud7 2x2

Cloud7 2x2x2

Cloud7 2x2x2

Cloud7 2x3x3 Lite

Cloud7 4x4x4

Model Number ECW536S ECW510 ECW520 ECW526 ECW516L ECW536
Wi-Fi Standard -
Radio -
Max. Data Rates(2.4 GHz) -
Max. Data Rates(5 GHz) -
Max. Data Rates(6 GHz) -
Radio Chains -
Transmit Power on(2.4 GHz) -
Transmit Power on(5 GHz) -
Transmit Power on(6 GHz) -
Antenna -
Power-over-Ethernet -
Scanning Radio Yes
BLE Yes
Power Consumption (Peak) 37 W
Ethernet Ports -
Mounting Type -
Dimensions -
Mesh Technology -
Cloud To-Go app -
EnWiFi app -
