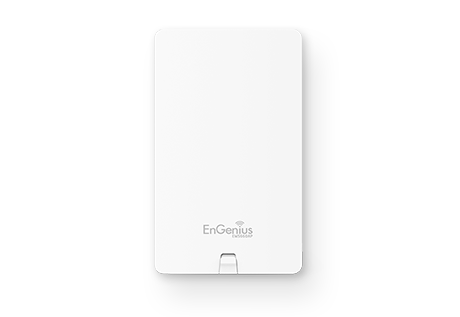

The EWS660AP expands 11ac Wi-Fi to outdoor locations with dual-band concurrent connectivity and increased user capacity for busy courtyards, restaurant patios and campus quads. Band Steering shifts dual-band devices to 5 GHz, improving network efficiency.
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at
IEEE 802.1r
IEEE 802.1k
IEEE 802.11x
Memory: 128 MB
Flash Memory 16 MB
Internal Omni-Directional Antennas
5 dBi on 2.4 GHz & 5 GHz
2 x 10/100/1000 Gigabit Ethernet Ports
– LAN1: Supports 802.3at PoE Input
– LAN2: Data Pass Through
1 x Reset Button
1 x Power Connector
Kensington Security Slot
1 x Power
WLAN (Wireless Connection)
2.4 GHz
5 GHz
2 x LAN
External Power Adapter on PoE injector
DC IN, 48 V/0.8A
IEEE 802.3at Compliant Source
Active Ethernet (PoE)
Wall Mount
Pole Mount
IP55-Rated Enclosure
Dual-Radio Concurrent 2.4GHz & 5GHz
Access Point
Mesh Access Point
2.4GHz:
2400MHz ~ 2835MHz
5GHz:
5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz
Up to 15 dBm on 2.4 GHz
Up to 15 dBm on 5 GHz
Max transmit power is limited by regulatory power
3 x 3:3
2.4 GHz: Max 450
5 GHz: Max 1300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3)
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Supports up to 16 SSIDs, 8 SSIDs per radio
Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
Compliant with IEEE 802.11e Standard
WMM
v1, v2c, v3
I/II, Private MIB
Standalone (Individually Managed)
Managed Mode (with Neutron Series Switch/ezMaster)
AP Auto Discovery and Provisioning
AP Auto IP Assignment
AP Group Management
Remote AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP – Multiple SSIDs
Secured Guest Network
Captive Portal
Access Point Status Monitoring
Rogue AP Detection
Wireless Client Monitoring
Background Scanning
Auto Transmit Power
Auto Channel
Email Alert
Wireless Traffic & Usage Statistics
Real-time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
SSL Certificate
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Traffic Shaping
Web Interface (HTTP)
CLI (Telnet)
Managed Mode (by Neutron Switch/ezMaster)
Auto Reboot
One-Click Firmware Upgrade
Firmware Upgrade: Web interface or CLI (FTP/HTTP)
WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
SSH Support
Client Isolation
L2 Isolation
Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C
Operating: (90% or less
Storage: 90% or less
Weight: 1.89 lbs.
Width: 7.13″ (181 mm)
Length: 11.97″ (304 mm)
Height: 1.81″ (46 mm)
– EWS660AP 11ac Outdoor AP
– 48 V/0.8A Power Adapter
– PoE Injector
– Pole Mount Ring
– Mounting Screw Set
– Quick Installation Guide
FCC
