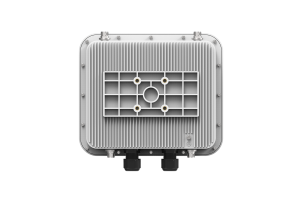

The EOC655, an Outdoor 5GHz Dual Radio 2x2 Access Point with N-Type Connectors, is tailored for ISPs and Smart Cities. It delivers superior throughput in dense RF environments and is versatile for both PtP and PtMP applications. Simplified setup and troubleshooting are facilitated by a 2.4GHz radio and mobile app integration. Featuring built-in GPS for precise device placement and network mapping, it also includes IP67-rated durability and 'dying gasp' power failure detection. With AES-256 encryption for security and SkyPoint NMS for web-based management, the EOC655 excels in performance and ease of use.
Qualcomm Chipset – Dual Core CPU, ARM A53, 1.0 GHz
IEEE 802.11ax on 5 GHz
DDR3 1GB, Flash 32 MB, eMMC 8GB
On board GPS with integrated Antenna,1PPS pulse, GPS Synchronization
40ms (Max)
To monitor board temperature
Antenna Alignment
For Radio Management
2x 2.4GHz: 3.5dBi (Integrated Omni-Directional)
2x 5GHz (Radio1): N-Type Connector
2x 5GHz (Radio2): N-Type Connector
N-Type Female
1x 1G LAN-1 port (802.3at PoE)
1x 2.5G LAN-2 port (Proprietary PoE)
IEEE802.3at or
Proprietary 48V/1A or Direct DC Input up-to 56V LAN2 Port
Base Station ( BSU ), Subscriber ( SU )
16
Proprietary polling based OFDMA Scheduling Protocol
5.1 GHz – 5.9 GHz (Broadband Connectivity)
2.4 GHz / Bluetooth (Radio Management)
20 / 40 / 80 / 160 MHz
5 MHz
Up to 27 dBm (Combined)
Automatically detect optimal data rate for given link
Selects optimal channel to operate to maintain SLAs (CIR & MIR)
Automatically adapt the transmit power
Auto Channel Selection(ACS), Dynamic Channel Selection(DCS), Background Scan(BG Scan) features aid to adapt to varying RF medium
AES 256
Provides RF medium statistics
Dual 2x 2:2
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
1 x GE PoE+
1 x 2.5GE Proprietary PoE
10/100/1000/2500Mbps, Half/Full Duplex, Auto Negotiation
9K bytes
Passive 48V/1A, 6KV Surge Protection
STP Cat5e: MAX 130 meters
FTP Cat6: MAX 180 meters
6KV Surge Protection on all Ethernet Ports
21W
v1, v2c, v3
Internal MAC Address Control List, Radius based Authentication
Downlink and Uplink traffic shaping
SSH, Web, TFTP, HTTP, HTTPS, Syslog
Android & IOS based Application for Radio Management
Alignment aid provided via variable audible tone generation algorithm
Bridging
IPv4, IPv6
802.1Q: Transparent, Access, Trunk, Q-in-Q
DHCP Server
To improve the multicast traffic performance, IGMP Snooping
Fault Link Management
MAC, IP, Protocol, Port
Stratum 1 NTP Server using GPS – less than 1msec accuracy
Asymmetric UL/DL committed and maximum information rate per Service Flow
802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s
Real Time priority-based services
Operation: -10ºC to +60ºC / -14°F to +140°F
Storage: -30ºC to +80ºC / -22°F to +176°F
Operating: 90% or less
Storage: 90% or less
IP67
200Kmph
Contact: 4KV Air: 8KV
2.02 kgs / 4.45 lbs
267x227x82mm
267*258.1*82mm (w/n-type & cable gland)
1 – EOC655 Outdoor Access Point
1 – Pole-Mounting Brackets
1 – PoE Injector with AC Power Cable
1 – Ethernet Cable Cat5e 1.5 mts
1 – Grounding Cable 1.8 mts
CB
Yes
Yes
FCC
CE
IC
UKCA
100K hours
Broadband Outdoor Access Point |
Broadband Outdoor Access Point |
Broadband Outdoor CPE |
Broadband Outdoor CPE |
Broadband Outdoor Access Point |
|
|---|---|---|---|---|---|
| Model Number | EOC655 | EOC655-C18 | EOC610 | EOC600 | EOC655-C23 |
| Chipset | - | - | - | - | IPQ5018 + QCN6102 + QCN9072 + QCA8081 |
| Radio | 5 GHz / 5GHz | 5 GHz / 5GHz | 5GHz | 5GHz | 5 GHz / 5GHz |
| Management Radio | - | - | - | - | 2.4GHz |
| Data Rate (2.4 GHz) | - | - | - | - | - |
| Data Rate (5 GHz) | Up to 2400Mbps | Up to 2400Mbps | 1200 Mbps | 1200 Mbps | Up to 2400Mbps |
| Radio Chains | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 |
| Tx Power (2.4 GHz) | 25dBm | 25dBm | 15dBm | 9dBm | 25dBm |
| Tx Power (5 GHz) | 27dBm / 24dBm | 27dBm / 24dBm | 26dBm | 26dBm | 27dBm / 24dBm |
| Antennas (2.4 GHz) | 3.5dBi | 3.5dBi | 3.9dBi | 2.12dBi | 3.5dBi |
| Antennas (5 GHz) | - | - | - | - | - |
| Antenna Beamwidth | - | - | - | - | - |
| Power-over-Ethernet | 802.3af/at / Proprietary 48~56V | 802.3af/at / Proprietary 48~56V | Proprietary 54V | Proprietary 54V | 802.3af/at / Proprietary 56V |
| Ethernet Ports | 1x 2.5G Proprietary Port ; 1x GE PoE+ /Proprietary Port ; 6KV Surge Protection on all Ethernet Ports | 1x 2.5G Proprietary Port ; 1x GE PoE+ /Proprietary Port ; 6KV Surge Protection on all Ethernet Ports | 1x GE Proprietary PoE Port ; 1x GE Port | 1x GE Proprietary PoE Port 1x GE Port | 1x 2.5G Proprietary Port ; 1x GE PoE+ /Proprietary Port ; 6KV Surge Protection on all Ethernet Ports |
| Mounting Type | Pole mount | Pole mount | Wall/Pole mount | Wall/Pole mount | Pole mount |
| IP Rating | - | - | - | - | - |
| Dimensions | 267x227x82mm;267*258.1*82mm (w/n-type & cable gland) | 267x227x82mm;267*255.1*82mm (w/n-type & cable gland) | Φ190 x 38 mm | 260 x 84 x 55 mm | 305x305x82mm ; 305*305*82mm (w/n-type & cable gland) |
| Operating Modes | - | - | base station(BSU)/subscriber(SU) | base station(BSU)/subscriber(SU) | Base station(BSU)/ Subscriber(SU) |
| MU-MIMO | Yes | Yes | Yes | Yes | Yes |
| GPS | - | - | - | - | Yes |
| Compass | - | - | - | - | Yes |
| Dying Gasp | - | - | - | - | Yes |
| Mobile app | Yes(SkyConnect) | Yes(SkyConnect) | Yes(SkyConnect) | Yes(SkyConnect) | Yes(SkyConnect) |
|
