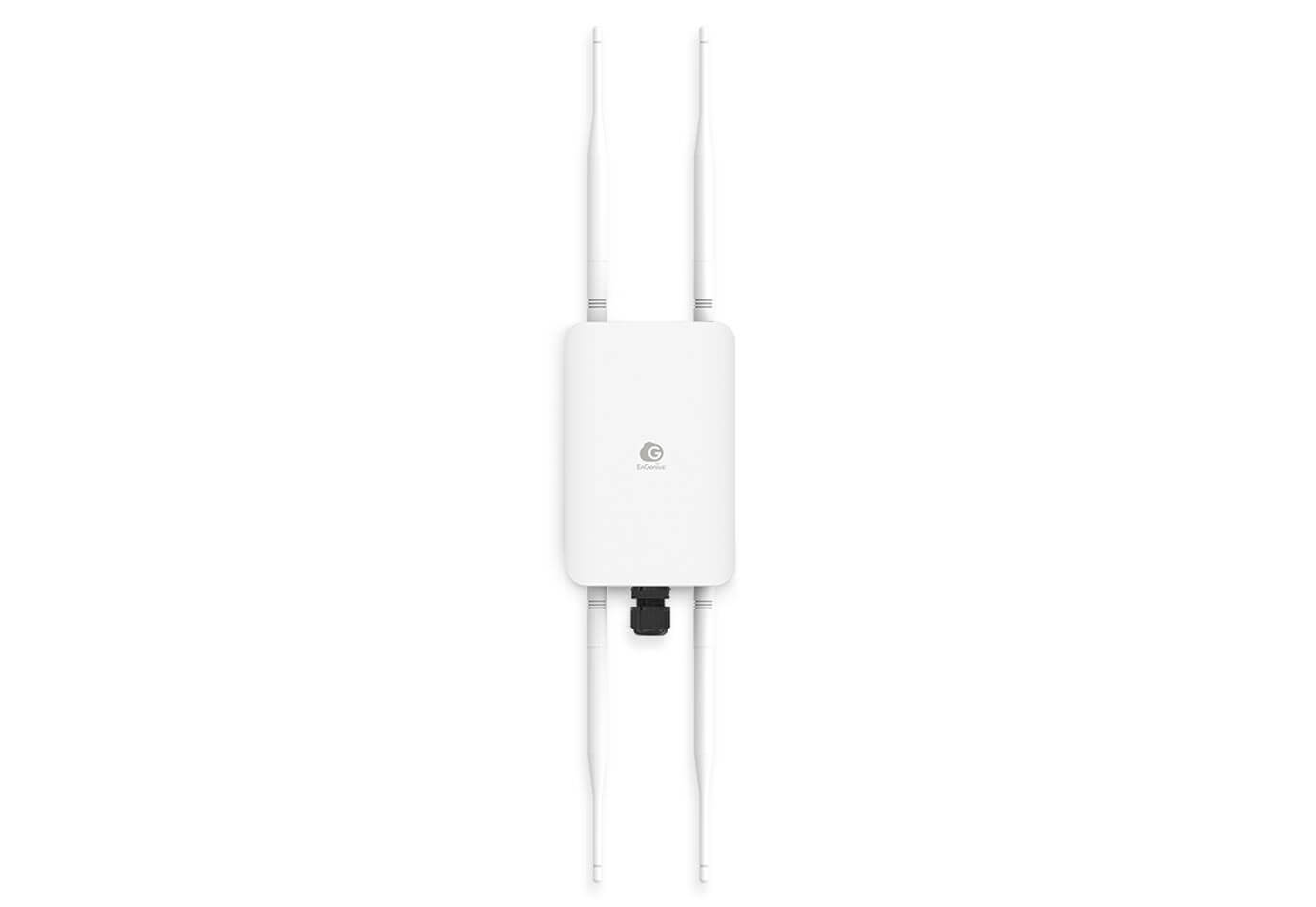

Cloud5 2×2 Outdoor
Điểm truy cập ngoại trời không dây 11ac Wave 2 2×2 của EnGenius Cloud ECW160 hỗ trợ kết nối không dây MU-MIMO, cung cấp tốc độ lên đến 867 Mbps trên băng tần 5 GHz và 400 Mbps trên băng tần 2.4 GHz. Vỏ của nó được đánh giá IP67 chống thời tiết và chống bụi, chịu được môi trường khắc nghiệt và hỗ trợ mạng Mesh giúp đơn giản hóa việc cài đặt và tự phục hồi.
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3 u/ab
IEEE 802.3az
2 x 2.4 GHz: 5 dBi(External Omni-Directional)
2 x 5 GHz: 5 dBi(External Omni-Directional)
N/A
N/A
1 x GE Port (PoE+)
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power-over-Ethernet: 802.3af/at Input
Active Ethernet (PoE)
12.6W
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Managed mode: AP, AP Mesh, Mesh
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz,5725 MHz ~ 5850 MHz
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
2 × 2:2
Two(2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio.
Two (2) Spatial Stream MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5GHz simultaneously.
2.4 GHz: Max 400 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: Max 867 (MCS0 to MCS11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM uner HT40)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11n/ac: 2×2 MIMO with 2 Streams
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports High Throughput (HT) Under the 2.4 GHz Radio—HT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: A-MPDU, A-SPDU
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
CE
N/A
N/A
N/A
128 Per radio
Yes
Yes
8 SSIDs on both 2.4GHz and 5GHz bands
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Supports 802.1d Spanning Tree Protocol
Compliance With IEEE 802.11e Standard
WMM
v1, v2c, v3
I/II, Private MIB
802.11r/k
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
IPv4, IPv6
Supports HTTP or HTTPS
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40Fº~176ºF/-40ºC~80ºC
Operating: 90% or less
Storage: 90% or less
IP67
1KV
Contact: 4KV Air: 8 K
829.5 g
Width: 111.2 mm
Length: 173.6 mm
Height: 30.29 mm
1 – ECW160 Cloud Managed Outdoor Access Point
2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
2 – 2.4GHz 5dBi SMA Antennas
2 – 5GHz 5dBi SMA Antennas
1 – Product Card
FCC
CE
IC
Cloud5 2x2 Outdoor |
Cloud5 2x2 |
Cloud6 2x2 |
Cloud6 4x4 |
Cloud5 2x2 Wallplate |
Cloud6 2x2 Outdoor |
|
|---|---|---|---|---|---|---|
| Model Number | ECW160 | ECW120 | ECW220 | ECW230 | ECW115 | ECW260 |
| Wi-Fi Standard | 802.11a/b/g/n/ac Wave 2 | 11ac Wave 2 | Wi-Fi 6 (11ax) | Wi-Fi 6 (11ax) | 11ac Wave 2 | 802.11a/b/g/n/ac/ax |
| Radio | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz |
| Max. Data Rates(2.4 GHz) | 400 Mbps | 400 Mbps | 600 Mbps | 1,200 Mbps | 400 Mbps | 574 Mbps |
| Max. Data Rates(5 GHz) | 867 Mbps | 867 Mbps | 1,200 Mbps | 2,400 Mbps | 867 Mbps | 1,200 Mbps |
| Radio Chains | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 | 4 x 4:4 | 2 × 2:2 | 2 x 2:2 |
| Transmit Power on(2.4 GHz) | Up to 23 dBm | 23 dBm | 22 dBm | 23 dBm | 17 dBm | Up to 23 dBm |
| Transmit Power on(5 GHz) | Up to 23 dBm | 23 dBm | 22 dBm | 23 dBm | 17 dBm | Up to 25 dBm |
| Integrated Antenna | - | - | - | - | - | - |
| External Antenna | - | - | - | - | - | - |
| Power-over-Ethernet | 802.3af/at | 802.3af | 802.3af | 802.3af/at | 802.3af/at | 802.3af/at |
| Ethernet Ports | 1x GE PoE+ port | 1x GE PoE port | 1x GE PoE port | 1x 2.5GE PoE+ port | 2x GE PoE+ ports ; 1x GE PSE Out port | 1x 2.5GE PoE+ port |
| Mounting Type | Pole / Wall | Wall / Ceiling | Wall / Ceiling | Wall / Ceiling | Wall / Ceiling | Pole / Wall |
| IP Rating | - | - | - | - | - | - |
| Dimensions | 112 x 173 x 30 mm | 161.5 x 161.5 x 41.6 mm | 160 x 160 x 33 mm | 205 x 205 x 33.2 mm | 140 x 90 x 40 mm | 190 x 124 x 52.5 mm |
| Mesh Technology | Yes | Yes | Yes | Yes | Yes | Yes |
| Cloud To-Go app | Yes | Yes | Yes | Yes | Yes | Yes |
| EnWiFi app | - | - | - | - | - | - |
|
