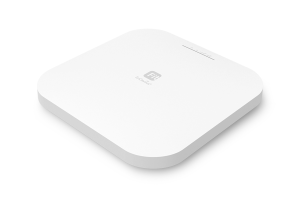

Fit6 4×4 Lite
Engenius Fit6 4x4 Lite 802.11ax hiệu suất i tốc độ tối đa 1,148 Mbps trên tần số 2,4GHz và tốc độ 2,400 Mbps trên tần số 5GHz! được bảo vệ bởi giao thức mã hóa WPA3/WPA2PSK AES hàng đầu cho bảo mật .
802.11a/b/g/n/ac/ax
5dBi
5dBi
1 x 10/100/1000/2500 BASE-T DC12V Reset/Reboot button
1 x Power 1 x LAN 1 x 2.4 GHz 1 x 5 GHz
PoE 802.3at DC12V
17W
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Managed mode: AP, AP Mesh, Mesh
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
4 × 4:4
Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio.
Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
128 per radio
32ºF~104ºF (0 ºC~40 ºC)
3-40 ºF~176 ºF (-40 ºC~80 ºC)
Storage: 90% or less
570g
205 x 205 x 33 mm
1 – EWS276-FIT Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card
CB
N/A
Yes
Yes
FCC CE IC UKCA
Fit6 4x4 Lite |
Fit6 2x2 |
Fit6 4x4 |
Fit6 2x2 Lite |
|
|---|---|---|---|---|
| Model Number | EWS276-FIT | EWS357-FIT | EWS377-FIT | EWS356-FIT |
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax | 802.11a/b/g/n/ac/ax | 802.11a/b/g/n/ac/ax | 802.11a/b/g/n/ac/ax |
| Radio | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz |
| Max. Data Rates(2.4 GHz) | 1,148 Mbps | 574 Mbps | 1,148 Mbps | 574 Mbps |
| Max. Data Rates(5 GHz) | 2,400 Mbps | 1,200 Mbps | 2,400 Mbps | 2,400 Mbps |
| Radio Chains | 4 x 4:4 | 2 x 2:2 | 4 x 4:4 | 2 x 2:2 |
| Transmit Power on(2.4 GHz) | 23 dBm | 22 dBm | 23 dBm | 21 dBm |
| Transmit Power on(5 GHz) | 23 dBm | 22 dBm | 23 dBm | 21 dBm |
| Antenna | 2.4 GHz:4 x 5 dBi;5 GHz:4 x 5 dBi | 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) | 4 x 5 dBi (2.4 GHz); 4 x6 dBi (5 GHz) | 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) |
| Power-over-Ethernet | 802.3at | 802.3af/at | 802.3at | 802.3af |
| Ethernet Ports | 1x 2.5GE Port | 1x GE Port | 1x 2.5GE Port | 1x GE Port |
| Mounting Type | Wall/ Ceilling | Ceiling / Wall | Ceiling / Wall | Ceiling / Wall |
| Dimensions | 205 x 205 x 33 mm | 160 x 160 x 27 mm | 205 x 205 x 33.2 mm | 160 x 160 x 30 mm |
| Operating Modes | AP/ Mesh | AP/Mesh | AP/Mesh | AP |
| Mesh Technology | Yes | Yes | Yes | N/A |
| MU-MIMO | Yes | Yes | Yes | Yes |
| Beamforming | Yes | Yes | Yes | Yes |
| On-premise management (FitController) | Yes | Yes | Yes | Yes |
| Mobile app (FitExpress App) | Yes | Yes | Yes | Yes |
|
