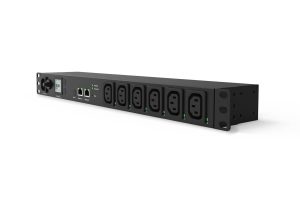

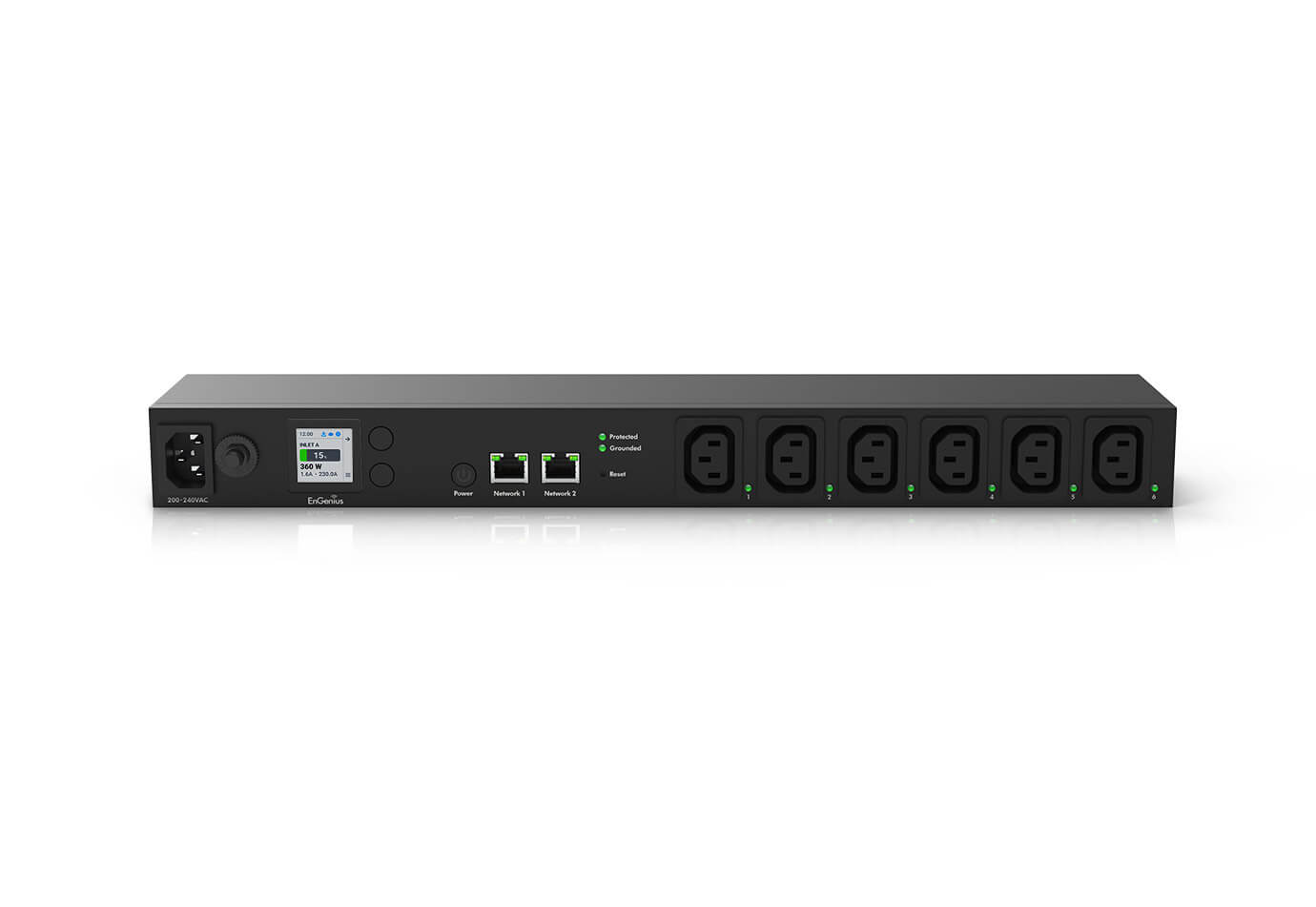

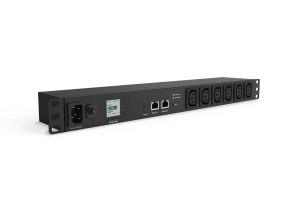

PDU 6P 10A 200-240V
Input
200-240V
50/60Hz
10A
H05VV-F 3G
CEE 7-VII
1830mm
1 x Outlet Power Switch
2 x LAN
1 x Outlet Power Indicator
1 x Grounded Indicator
1 x SPD Indicator
Output
200-240V
50/60Hz
10A
IEC-C13
6
12A
2400W for 240V
2 x 10/100/1000 BASE-T
IEC-C13 Inlet
Rest Button
12A Circuit Breaker
Operating: 0°C ~ +45°C
Storage: -30°C ~ +70°C
Humidity 5% ~ 95% RH Non-condensing
Yes
Yes
1124 g
440 x 44 x 85 mm
AL6063
1 – ECP106-INT PDU
1 – Inlet Power Cord
2 – C14 to C13 Plug Adapter
1 – Mounting Brackets
4 – Rubber Feet Cushion
8 – M3x5 Screws
4 – T4x19 Screws
4 – Spacer
1 –Drywall Anchor Kit
UL 62368-1
Yes
Yes
CE
RCM
PDU 6P 10A 200-240V |
PDU 12P 10A 200-240V |
|||
|---|---|---|---|---|
| Model Number | ECP106-INT | ECP212-INT | ||
| Dimensions | 440 x 44 x 85 mm | 440 x 88 x 101.9 mm | ||
| Weight | 1124 g | 2460 g | ||
| Enclosure Material | AL6063 | SECC | ||
| Networking Interfaces | (2) 10/100/1000 BASE-T | (2) 10/100/1000 BASE-T | ||
| Management Interface | Ethernet | Ethernet | ||
| VSWR | (6)IEC-C13, 200-240V AC, 10A max.,50/60Hz | (12)IEC-C13, 200-240V AC, 10A max.,50/60Hz | ||
| Power Method | 200-240VAC, 10A max.,50/60Hz | 200-240VAC, 10A max.,50/60Hz | ||
| Max. Power Consumption | 2400W for 240VAC | 2400W for 240VAC | ||
| Buttons | (1) Factory Reset (1) Circuit Breaker (1)Outlet Power Button (2)LCD Control Buttons | (1) Factory Reset (1) Circuit Breaker (1)Outlet Power Button (2)LCD Control Buttons | ||
| Protection | Surge Protection Gounded Protection | Surge Protection Gounded Protection | ||
| LCM Display | 1.3 RGB display, Non-touch Firmware Upgradable | 1.3 RGB display, Non-touch Firmware Upgradable | ||
| Operating Temperature | Operating: 0°C ~ +45°C | Operating: 0°C ~ +45°C | ||
| Operating Humidity | Humidity 5% ~ 95% RH Non-condensing | Humidity 5% ~ 95% RH Non-condensing | ||
| Certifications | CE,RCM,UL 62368-1 | CE,RCM,UL 62368-1 | ||
|
