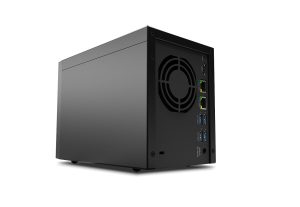

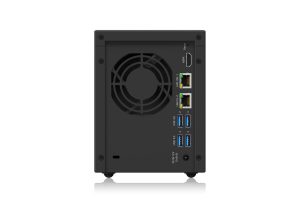

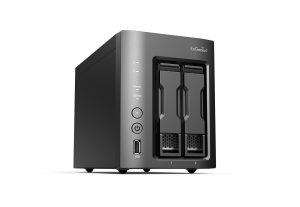

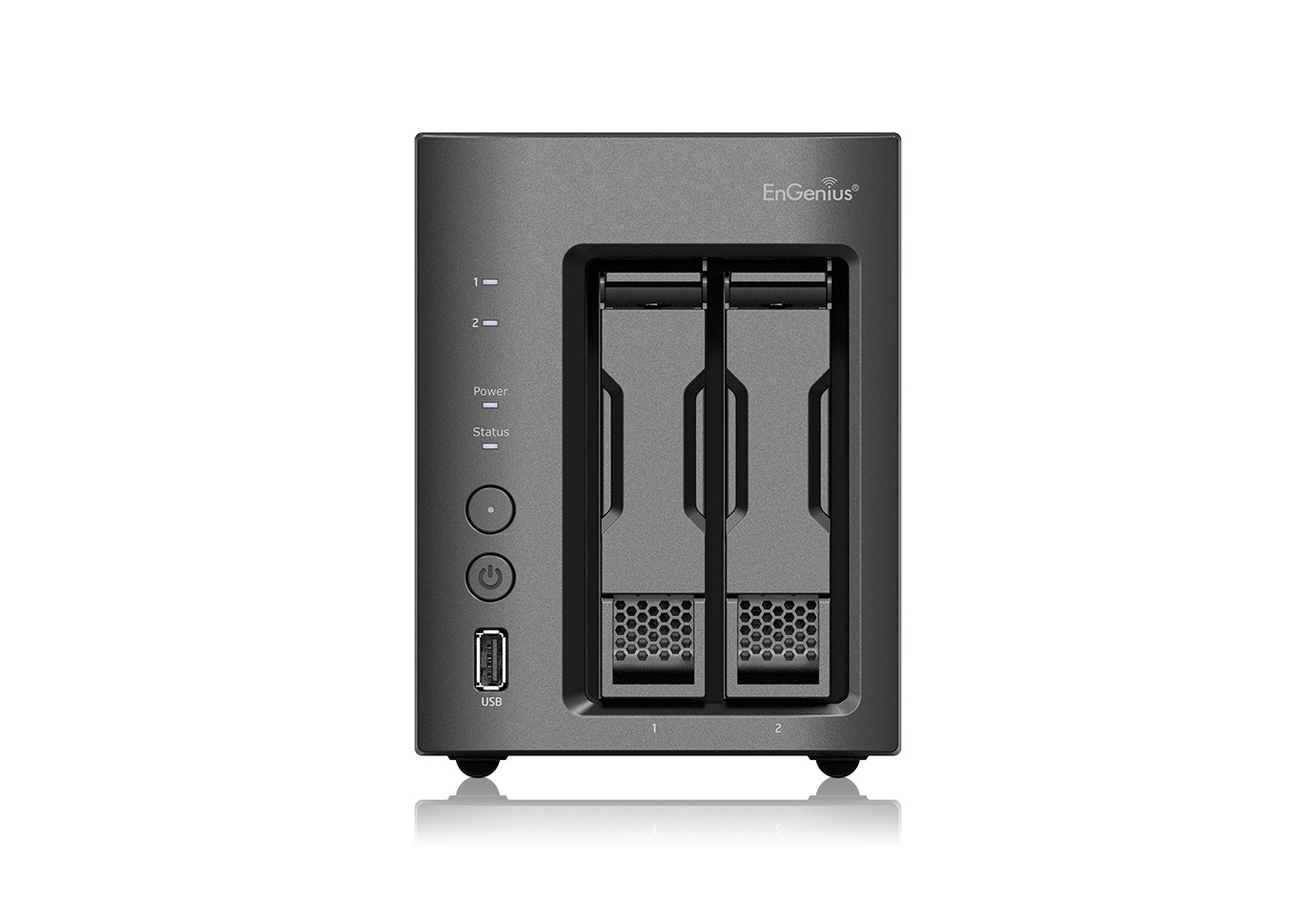

AI NVS 2Bay Tower
The EVS1002D is a compact 2-bay tower AI-NVS designed to transform legacy ONVIF/RTSP cameras into intelligent surveillance systems. Featuring GPU-powered Edge AI processing and Cloud AI integration, it delivers context-aware monitoring with intelligent incident detection across all connected cameras. Enterprise-grade RAID 1 storage ensures high-availability recording and uninterrupted data protection. Cloud-managed with smart search and timeline navigation capabilities, the EVS1002D provides enterprise intelligence in limited-space environments without requiring camera replacement.
16 cameras
FHD, 4MP, 5MP, 4K
ONVIF Profile S, RTSP, EnGenius
RAID 1
24/7 seamless recording and retention
2 cameras
30 EnGenius cameras
Intel Elkhart Lake x6211E
8GB
16GB
TPM v2.0
SATA 3.0 x 2
10GbE RJ45 x 1, 1GbE RJ-45 x 1
HDMI 1.4b x 1
3.0 Type A x 4, 2.0 Type A x 1
Yes
System x 1, CPU x 1
Yes
Power, Function
Power x 1, Function x 1, HDD x 2
DC12V@5A
92W
0~50°C (32~122°F)
10~85% RH
Event detection, Smart Motion Search, People Counting
Event detection, Smart Motion Search, Vehicle Counting
Natural Language Search, Contextual AI Analysis, SD-Alert
Yes
Aluminium alloy, Polycarbonate
118.8x 217.5 x 152.0 mm
1.862Kg
Chrome, Safari, Edge
Cloud To-Go on iOS and Android
AI NVS 2Bay Tower |
AI NVS 4Bay Tower |
|||
|---|---|---|---|---|
| Model Number | EVS1002D | EVS1004D | ||
| Form Factor | Compact Tower | Compact Tower | ||
Max 3rd-Party Cameras  Up to the indicated quantity. Actual capacity depends on other enabled features and system configuration. |
16 | 16 | ||
| Max AI Empower Up to the indicated quantity. Actual capacity depends on other enabled features and system configuration. |
2 | 2 | ||
| Max EnGenius Cameras (Storage) Up to the indicated quantity. Actual capacity depends on other enabled features and system configuration. |
30 EnGenius cameras | 30 EnGenius cameras | ||
| Storage Capacity | 2 Bays | 4 Bays | ||
| Data Protection | RAID 1 | RAID 1/5/6 | ||
|
