Broadband Outdoor CPE

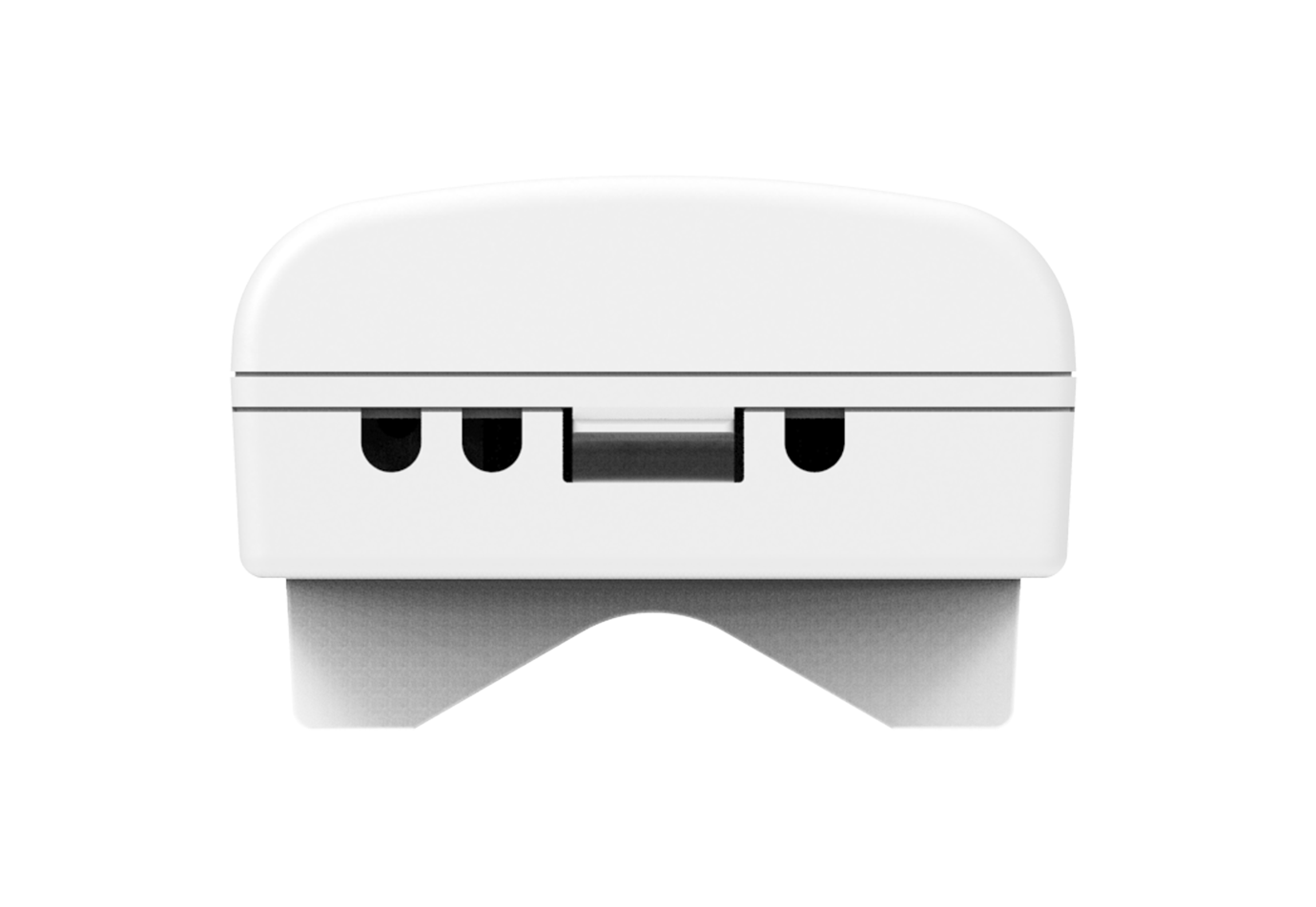

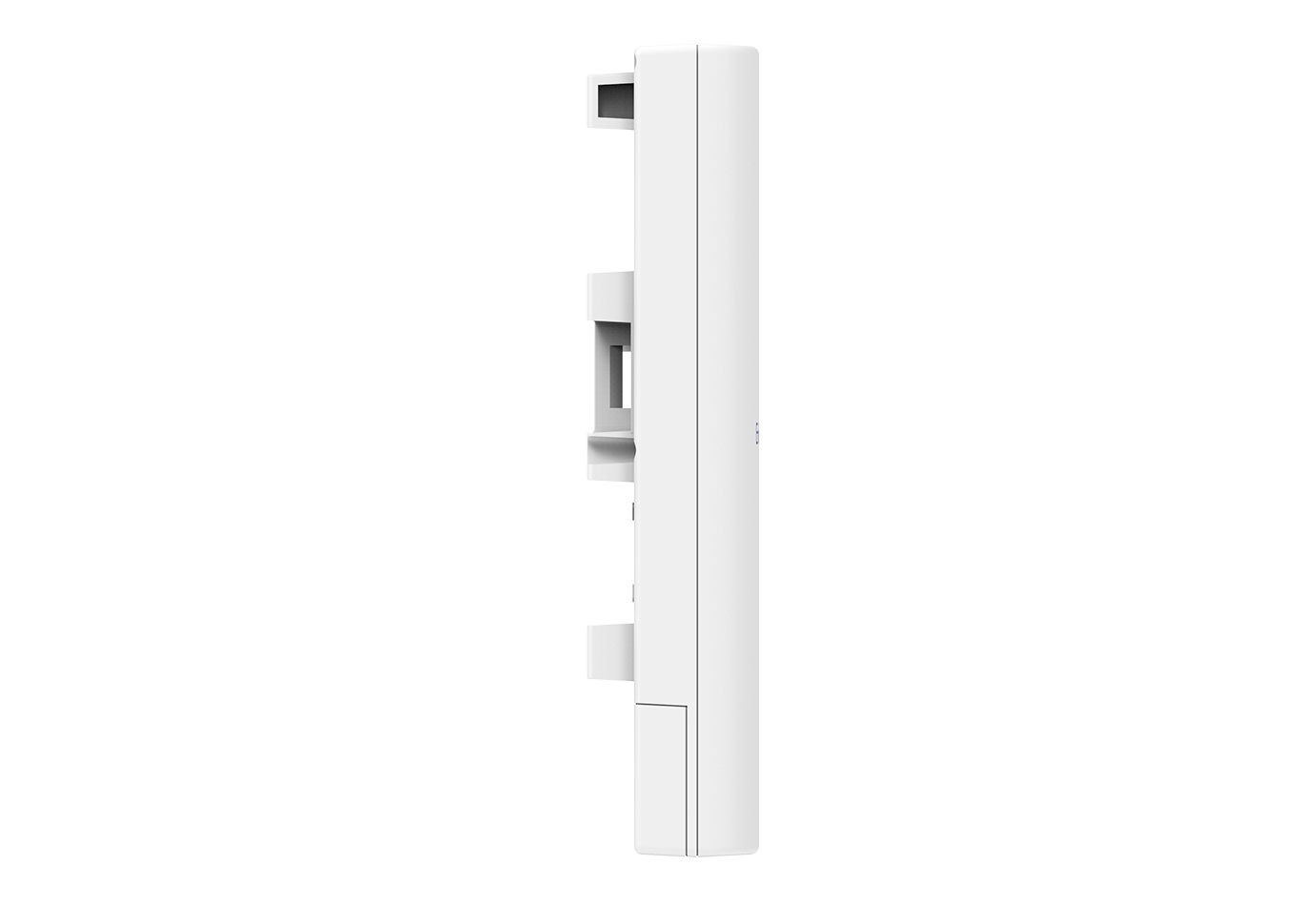

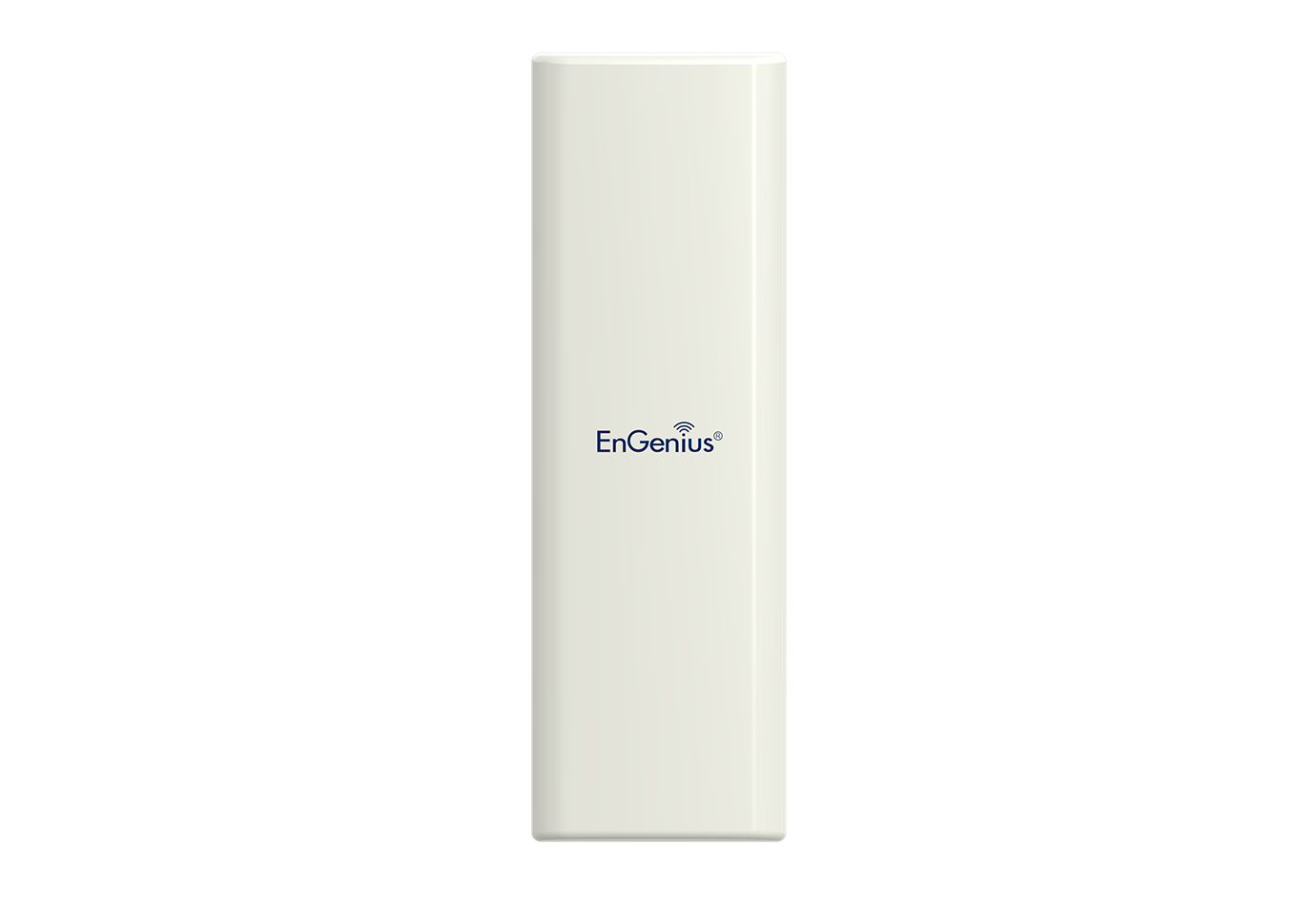

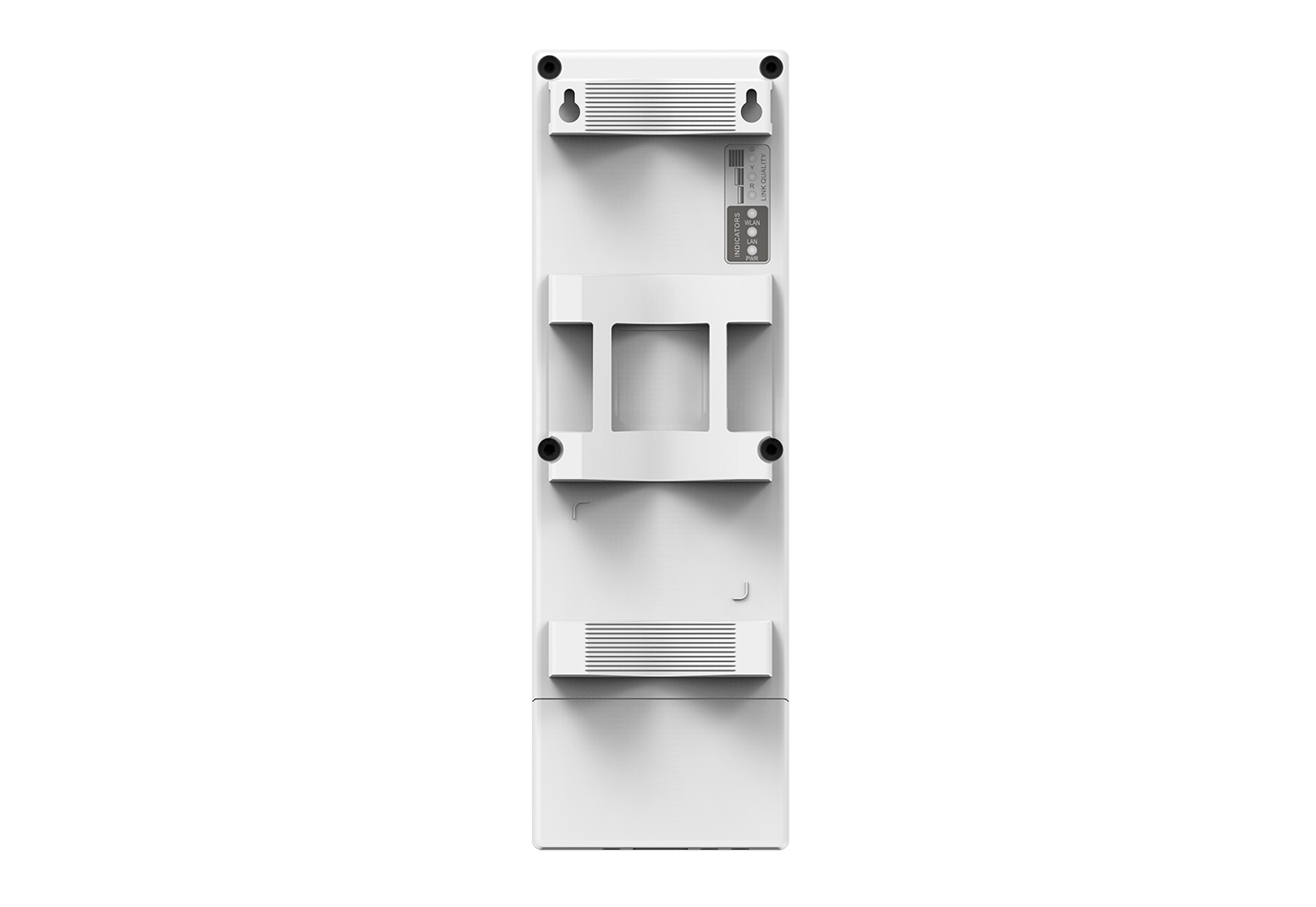

Outdoor 5GHz 2x2 CPE with 16dBi Patch Antenna

EOC600

Product Highlight

The EnGenius EOC600 802.11 ax 2x2 5GHz Broadband Outdoor Long Range CPE offers reliable and efficient outdoor Wi-Fi connectivity with EnGenius proprietary MAC and beamforming optimization. It features high 26 dBm transmit power and high gain 16 dBi integrated directional antenna for extended Wi-Fi range up to 3 miles point-to-point. It's also weatherproof and offers flexible operation modes with easy installation over 100 meters.

  • Single 5GHz Radio: Offers Upto 1,200 Mbps link capacity, ideal for Dual Sector and repeater mode PtP and PTMP setups deployments, and supports up to 16 devices in PtMP setups.
  • Automatic RF Corrections: Enhance network resilience by improving stability and reducing interruptions.
  • Dynamic Data Rates: Adjusts transmission speeds based on signal quality for reliable and efficient connections.
  • Auto & Dynamic Channel Selection: Automatically chooses optimal channels to avoid interference and enhance signal quality.
  • Superior QoS over RF Links: Prioritizes critical traffic to ensure high service quality and better user experience.
  • Mobile App Radio Tuning: Integrates a 2.4GHz radio with a mobile app for easy PtP/PtMP setup, efficient antenna alignment, and streamlined troubleshooting.
  • Enhanced Connectivity: Employs 802.11ax technology with OFDMA, Beamforming, and MU-MIMO for improved throughput and coverage.
  • Multi-Tenant Network Efficiency: Utilizes VLAN, Q-in-Q, and filtering to manage multi-tenant networks effectively and reduce congestion.
  • Centralized NMS: Offers a comprehensive web-based platform for network performance, health, and security management.
  • Auto Provisioning: Streamlines large-scale network deployments with easy, centralized control.
  • Uncompromised Security: Ensures top-tier data protection with AES-256 encryption.
  • High gain 16 dBi Integrated directional antenna extend wireless networks up to 3 miles point-to-point.
  • IP55-rated weatherproof & dustproof housing.

Technical Specifications

Chipset

IPQ5018+QCN6102, QCA8337

Standards

IEEE 802.11a/n/ac/ax on 5 GHz

Memory

DDR3 512MB, Flash 128MB

Antenna

2x 2.4GHz: –
2x 5GHz -: 16dBi

Physical Interfaces

1 x 10/100/1000 BASE-T(Proprietary PoE)
1 x 10/100/1000 BASE-T

Proceed reset and reboot when pushing this button

Power Source

Proprietary 54V (EPA5006GR)

Wireless & Radio Specifications

Operation Modes

Base station(BSU)/Subscriber(SU)

Max Subscribers

4

MAC Protocol

Proprietary polling based OFDMA Scheduling Protocol

Frequency Bands

5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Channel Bandwidth

20 / 40 / 80 / 160 MHz

Channel Spacing

5 MHz

Max Transmit Power

Up to 26 dBm (Combined)

Dynamic Data Rate Selection (DDRS)

Automatically detect optimal data rate for given link

Dynamic Channel Selection(DCS)

Selects optimal channel to operate to maintain SLAs (CIR & MIR)

Auto Transmit Power Control ( ATPC)

Automatically adapt the transmit power

Interference Mitigation

Auto Channel Selection(ACS), Dynamic Channel Selection(DCS), Background Scan(BG Scan) features aid to adapt to varying RF medium

Encryption

AES 256

Spectrum Analyzer

Provides RF medium statistics

Radio Chains

2x 2:2

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Ethernet

1x GE Proprietary PoE Port 1x GE Port

Speed

10/100/1000Mbps, Half/Full Duplex, Auto Negotiation

Jumbo Frame

9K bytes

PoE Source

Passive 54V /0.6A

Cable Length

STP Cat5e: MAX 130 meters FTP Cat6: MAX 180 meters

Surge Protection

1KV

Maximum Power Consumption

PoE: Max. 13W

Management Features

SNMP

v1, v2c, v3

Authentication

Internal MAC Address Control List, Radius based Authentication

Traffic Shaping

Downlink and Uplink traffic shaping

Remote

SSH, Web, TFTP, HTTP, HTTPS, Syslog

Smart Phone

Android & IOS based Application for Radio Management

Antenna Alignment

Alignment aid provided via variable audible tone generation algorithm

Operating Mode

Bridging

IP Stack

IPv4, IPv6

VLAN Tagging

802.1Q: Transparent, Access, Trunk, Q-in-Q

Gateway Features

DHCP Server

MAC-in-MAC

To improve the multicast traffic performance, IGMP Snooping

Ethernet-OAM

Fault Link Management

Packet Filtering

MAC, IP, Protocol, Port

NTP Server

Stratum 1 NTP Server using external server – less than 1msec accuracy

Asymmetric Bandwidth Control

Asymmetric UL/DL committed and maximum information rate per Service Flow

Packet Classification Capabilities

802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s

Scheduling

Real Time priority-based services

Environmental & Physical

Temperature Range

Operation: -4º~140ºF/-20ºC~60ºC Storage: -40Fº~176ºF/-40ºC~80ºC

Humidity (Non-condensing)

Storage: 90% or less

IP Rating

IP55

Wind loading

200Kmph

ESD Protection

Contact: 4KV Air: 8KV

Weight

610g

Dimensions

260 x 84 x 55 mm

Package Contents

1 – EOC600 Outdoor CPE 1 – EPA5006GR with AC cord 2 – Pole-Mounting Brackets 1 – Wall-Mount Screw Set 1 – Product Card

Safety Compliance

CB

WEEE

Yes

RoHS

Yes

Regulatory Compliance

FCC CE IC UKCA

MTBF

100K hours

Model Comparison

Broadband Outdoor CPE

Broadband Outdoor CPE

Broadband Outdoor Access Point

Broadband Outdoor Access Point

Broadband Outdoor Access Point

Model Number EOC600 EOC610 EOC655 EOC655-C18 EOC655-C23
Chipset IPQ5018+QCN6102, QCA8337 IPQ5018+QCN6102, QCA8337 IPQ5018 + QCN6102 + QCN9072 + QCA8081 IPQ5018 + QCN6102 + QCN9072 + QCA8081 IPQ5018 + QCN6102 + QCN9072 + QCA8081
Radio 5GHz 5GHz 5 GHz / 5GHz 5 GHz / 5GHz 5 GHz / 5GHz
Management Radio 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz
Data Rate (2.4 GHz) - - - - -
Data Rate (5 GHz) 1200 Mbps 1200 Mbps Up to 2400Mbps up to 2400Mbps Up to 2400Mbps
Radio Chains 2 x 2:2 2 x 2:2 2 x 2:2 2 x 2:2 2 x 2:2
Tx Power (2.4 GHz) 9dBm 15dBm 25dBm 25dBm 25dBm
Tx Power (5 GHz) 26dBm 26dBm 27dBm / 24dBm 27dBm / 24dBm 27dBm / 24dBm
Antennas (2.4 GHz) 2.12dBi 3.9dBi 3.5dBi 3.5dBi 3.5dBi
Antennas (5 GHz) 16dBi (Port1: 40°x20°;Port2: 40°x20°) 19 dBi (Port1: 25°x20°; Port2: 17°x24°) N-Type / N-Type 18dBi / N-Type 23dBi / N-Type
Antenna Beamwidth Azimuth:40°, Elevation:20° Azimuth:25°, Elevation:24° NA Azimuth:15°, Elevation:15° Azimuth:10°, Elevation:10°
Power-over-Ethernet Proprietary 54V Proprietary 54V 802.3af/at / Proprietary 48~56V 802.3af/at / Proprietary 48~56V 802.3af/at / Proprietary 56V
Ethernet Ports 1x GE Proprietary PoE Port 1x GE Port 1x GE Proprietary PoE Port ; 1x GE Port 1x 2.5G Proprietary Port ; 1x GE PoE+ /Proprietary Port ; 6KV Surge Protection on all Ethernet Ports 1x 2.5G Proprietary Port ; 1x GE PoE+ /Proprietary Port ; 6KV Surge Protection on all Ethernet Ports 1x 2.5G Proprietary Port ; 1x GE PoE+ /Proprietary Port ; 6KV Surge Protection on all Ethernet Ports
Mounting Type Wall/Pole mount Wall/Pole mount Pole mount Pole mount Pole mount
IP Rating IP55 IP55 IP67 IP67 IP67
Dimensions 260 x 84 x 55 mm Φ190 x 38 mm 267x227x82mm;267*258.1*82mm (w/n-type & cable gland) 267x227x82mm;267*255.1*82mm (w/n-type & cable gland) 305x305x82mm ; 305*305*82mm (w/n-type & cable gland)
Operating Modes Base station(BSU)/Subscriber(SU) Base station(BSU)/Subscriber(SU) - - Base station(BSU)/ Subscriber(SU)
MU-MIMO Yes Yes Yes Yes Yes
GPS - - Yes Yes Yes
Compass - - Yes Yes Yes
Dying Gasp - - Yes Yes Yes
Mobile app Yes(SkyConnect) Yes(SkyConnect) Yes(SkyConnect) Yes(SkyConnect) Yes(SkyConnect)
