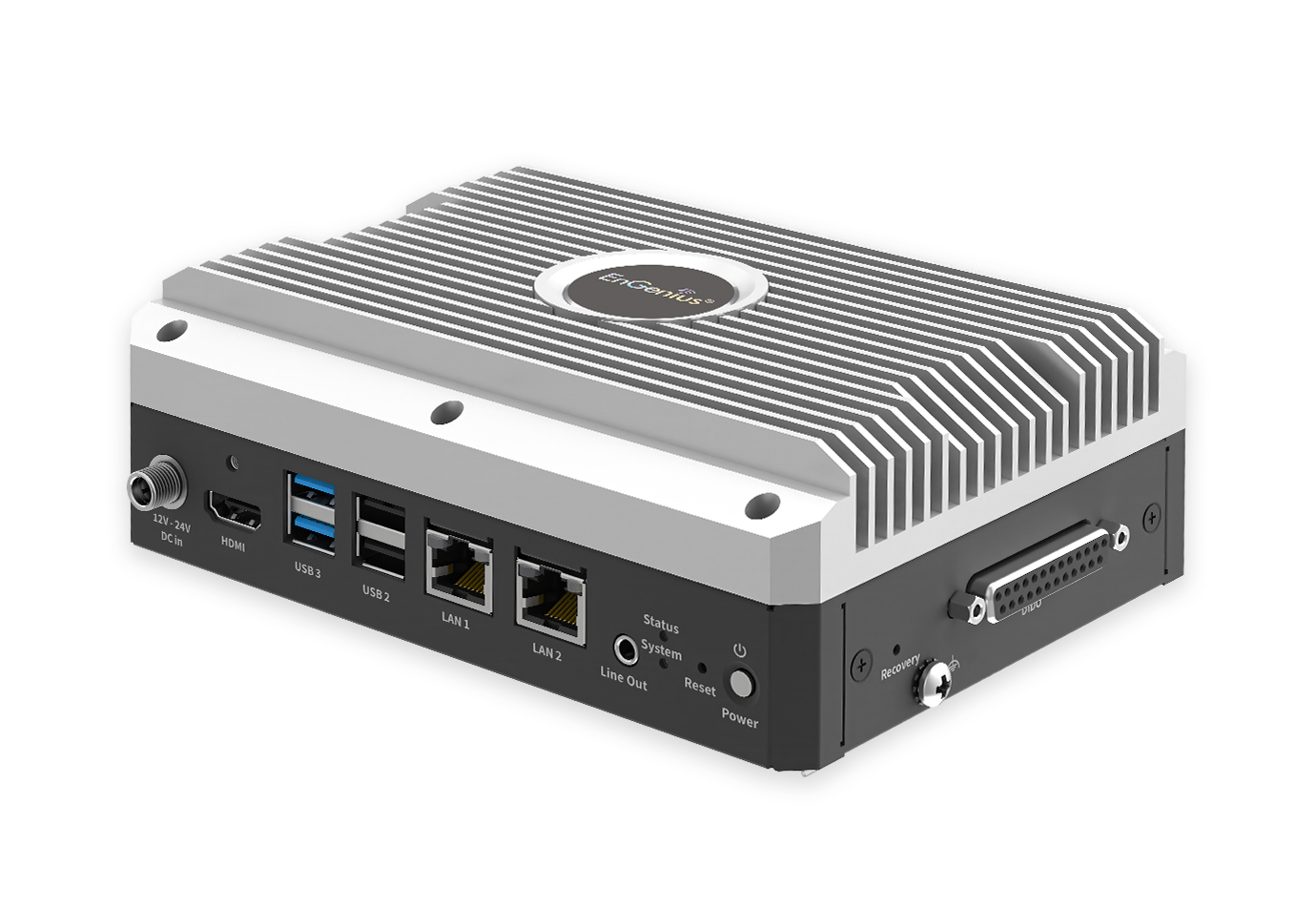

The E5-NB16 is a flagship industrial Edge AI Box designed to bring high-performance AI computing closer to where data is generated. With powerful NVIDIA® Jetson Orin™ NX 16GB computing, it enables real-time video analytics, intelligent automation, and AI-driven decision making for demanding edge applications while minimizing latency and cloud dependency.
NVIDIA® Jetson Orin™ NX
Up to 157 TOPS
8-core Arm Cortex-A78AE, up to 2.0GHz
1024-core NVIDIA® Ampere GPU, 32 Tensor Cores
16GB LPDDR5
NVIDIA® Linux L4T
NVIDIA® JetPack
2x NVDLA v2
256GB NVMe SSD
2 × Gigabit Ethernet
NA
2 × USB 3.2, 2 × USB 2.0
1 × HDMI® 1.4 output (Lockable)
2 × DB9 for RS232/422/485 combo port
1 × DB9 CAN port
DB25 Digital I/O (DIx4/ DOx4/ I2Cx1/ SPIx1 / UARTx1(TX/
3.5 mm Audio Jack
1 x DC Jack (Lockable)
12–24V DC
Fanless
10W- 25W, 40W super mode
-20°C ~ 70°C
-40°C ~ 85°C
5%~95% @ 40° C (non-condensing)
1 x Power button, 1 x Reset button, 1 x Recovery button
2 x LEDs
NVIDIA® Linux L4T
Ext4
Wayland / Weston
NVIDIA® JetPack SDK
VESA / DIN Rail / Wall Mount
170 × 125 × 60 mm
1.9kg
AI BOX 157 |
AI BOX 157W |
AI BOX 117 |
AI BOX 117W |
AI BOX 67 |
AI BOX 67W |
|
|---|---|---|---|---|---|---|
| Model Number | E5-NB16 | E5-NB16W | E5-NB08 | E5-NB08W | E5-NA08 | E5-NA08W |
| AI Platform | NVIDIA® Jetson Orin™ NX | NVIDIA® Jetson Orin™ NX | NVIDIA® Jetson Orin™ NX | NVIDIA® Jetson Orin™ NX | NVIDIA® Jetson Orin™ Nano | NVIDIA® Jetson Orin™ Nano |
| AI Performance | Up to 157 TOPS | Up to 157 TOPS | Up to 117 TOPS | Up to 117 TOPS | Up to 67 TOPS | Up to 67 TOPS |
| CPU | 8-core Arm Cortex-A78AE, up to 2.0GHz | 8-core Arm Cortex-A78AE, up to 2.0GHz | 6-core Arm Cortex-A78AE, up to 2.0GHz | 6-core Arm Cortex-A78AE, up to 2.0GHz | 6-core Arm Cortex-A78AE, up to 1.5GHz | 6-core Arm Cortex-A78AE, up to 1.5GHz |
| GPU | 1024-core NVIDIA® Ampere GPU, 32 Tensor Cores | 1024-core NVIDIA® Ampere GPU, 32 Tensor Cores | 1024-core NVIDIA® Ampere GPU, 32 Tensor Cores | 1024-core NVIDIA® Ampere GPU, 32 Tensor Cores | 1024-core NVIDIA® Ampere GPU, 32 Tensor Cores | 1024-core NVIDIA® Ampere GPU, 32 Tensor Cores |
| Memory | 16GB LPDDR5 | 16GB LPDDR5 | 8GB LPDDR5 | 8GB LPDDR5 | 8GB LPDDR5 | 8GB LPDDR5 |
| Operating System | NVIDIA® Linux L4T | NVIDIA® Linux L4T | NVIDIA® Linux L4T | NVIDIA® Linux L4T | NVIDIA® Linux L4T | NVIDIA® Linux L4T |
| AI Framework | NVIDIA® JetPack | NVIDIA® JetPack | NVIDIA® JetPack | NVIDIA® JetPack | NVIDIA® JetPack | NVIDIA® JetPack |
| Storage | 256GB NVMe SSD | 256GB NVMe SSD | 256GB NVMe SSD | 256GB NVMe SSD | 256GB NVMe SSD | 256GB NVMe SSD |
| Wireless | N/A | Wi-Fi6 2x2 | N/A | Wi-Fi6 2x2 | N/A | Wi-Fi6 2x2 |
| Ethernet | 2 × Gigabit Ethernet | 2 × Gigabit Ethernet | 2 × Gigabit Ethernet | 2 × Gigabit Ethernet | 2 × Gigabit Ethernet | 2 × Gigabit Ethernet |
| USB | 2 × USB 3.2, 2 × USB 2.0 | 2 × USB 3.2, 2 × USB 2.0 | 2 × USB 3.2, 2 × USB 2.0 | 2 × USB 3.2, 2 × USB 2.0 | 2 × USB 3.2, 2 × USB 2.0 | 2 × USB 3.2, 2 × USB 2.0 |
| Display | 1 × HDMI® | 1 × HDMI® | 1 × HDMI® | 1 × HDMI® | 1 × HDMI® | 1 × HDMI® |
| Serial Port | 2 × RS232/422/485 | 2 × RS232/422/485 | 2 × RS232/422/485 | 2 × RS232/422/485 | 2 × RS232/422/485 | 2 × RS232/422/485 |
| CAN Bus | 1 × DB9 CAN | 1 × DB9 CAN | 1 × DB9 CAN | 1 × DB9 CAN | 1 × DB9 CAN | 1 × DB9 CAN |
| GPIO | DB25 Digital I/O | DB25 Digital I/O | DB25 Digital I/O | DB25 Digital I/O | DB25 Digital I/O | DB25 Digital I/O |
| Audio | 3.5 mm Audio Jack | 3.5 mm Audio Jack | 3.5 mm Audio Jack | 3.5 mm Audio Jack | 3.5 mm Audio Jack | 3.5 mm Audio Jack |
| Power Input | 12–24V DC | 12–24V DC | 12–24V DC | 12–24V DC | 12–24V DC | 12–24V DC |
|
