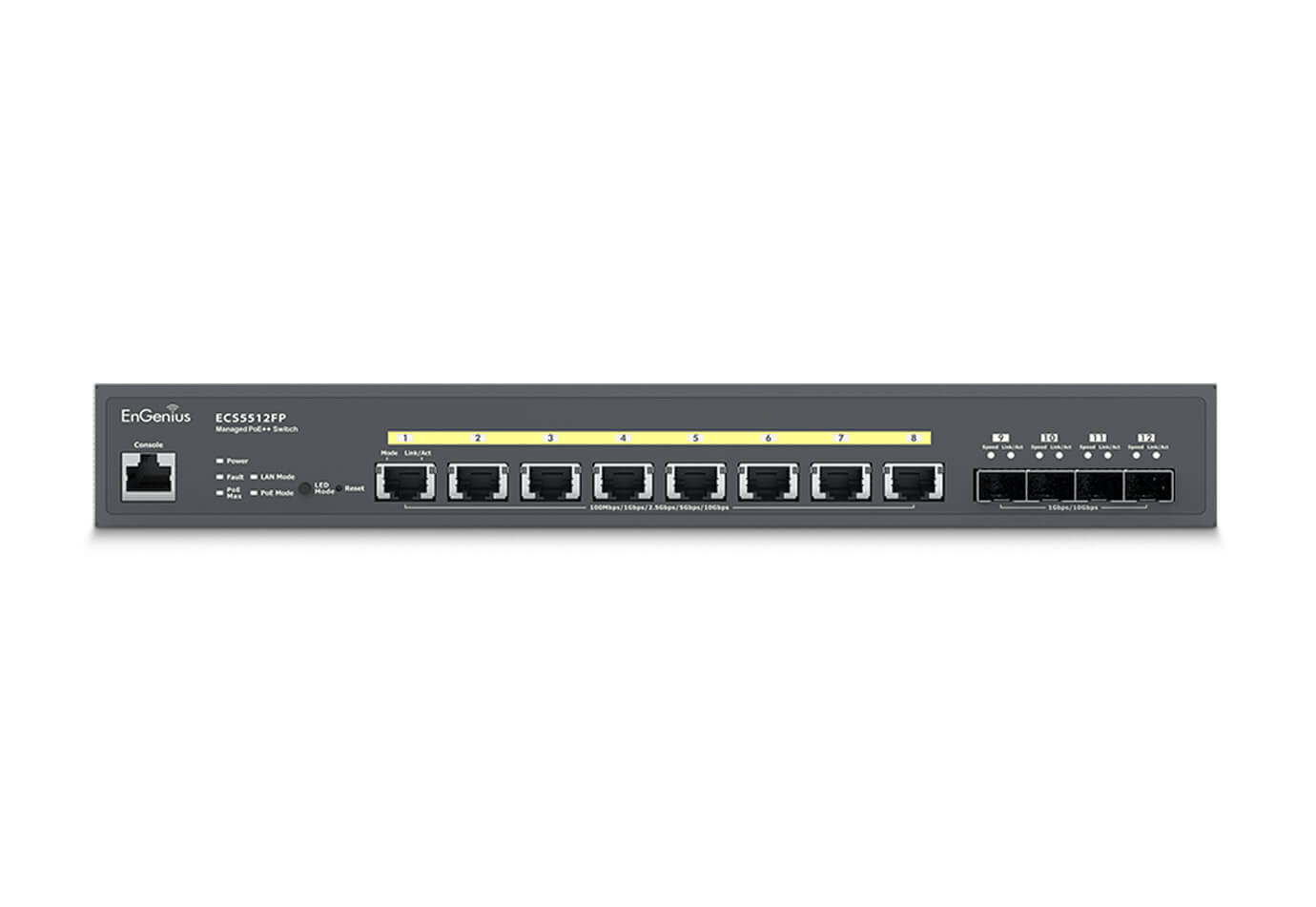

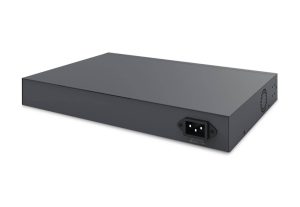

EnGenius Cloud Managed Layer 2+ Aggregate Switch, ECS5512FP is a reliable and easy-to-manage 8-Port 10G PoE++ with 4 -ports 10G SFP+ uplink ports switch that provides high-speed connectivity for your network devices with 420W power budget. Its Zero-touch provisioning and centralized cloud management make it easy to set up and manage your network from anywhere, anytime. With its Voice-VLAN feature and robust security, you can ensure quality voice and video traffic while protecting against malicious attacks.
File Name | Type |
---|---|
|
Data Sheet |
|
Data Sheet |
|
White Paper (Marketing Collaterals) |
|
User Manual |
|
Quick Guide |
|
Data Sheet |
|
Brochure |
|
User Manual |
|
Firmware |
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
8×100/1000/2500/5000/10000 Mbps Ports
240 Gbps
512 MB
128 MB
100 ~ 240VAC, 50/60Hz
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
EnGenius Cloud
Local Web GUI
32K
10K
Max 256 groups
MLD Snooping: v1
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Strict / WRR/ Strict + WRR
Port-based bandwidth control (Ingress)
Max. 256 Entries
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SNMP v1/v2c/v3 Support
RMON 1,2,3,9
Time Setting/Daylight saving
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
Voice VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
20 IPv6 address
Max. 192 ARP entries
Max. 63 entries
Max. 21 entries
Operating: 32°F to 122°F (0°C to 50°C)
5% – 95%
Weight: 3.1 kg
Width: 230 mm
Length: 330 mm
Height: 44 mm
1x Cloud Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
CloudSwitch Aggregate 8XG Full PoE |
CloudSwitch L2Plus 8 PoE |
CloudSwitch L2Plus 8 Full PoE |
CloudSwitch MGPlus 8 |
CloudSwitch MGPlus 8 Full PoE |
CloudSwitch Aggregate 8XG |
CloudSwitch L2Plus 24 |
CloudSwitch L2Plus 24 Full PoE |
CloudSwitch L2Plus 48 |
CloudSwitch L2Plus 48 Full PoE |
|
---|---|---|---|---|---|---|---|---|---|---|
Model Number | ECS5512FP | ECS1008P | ECS1112FP | ECS2512 | ECS2512FP | ECS5512 | ECS1528T | ECS1528FP | ECS1552 | ECS1552FP |
Switch Class | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ |
Gigabit Ports | - | 8 | 10 | - | - | - | 24 | 24 | 48 | 48 |
Multi-G Ports | 8 x 10G | - | - | 8x2.5G | 8 x 2.5G | 8 x 10G | - | - | - | - |
SFP Ports | - | - | 2 | - | - | - | - | - | - | - |
SFP+ Ports | 4 | - | - | 4 | 4 | 4 | 4 x 10G | 4 | 4 | 4 |
RJ45 Console Ports | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
PoE Capable Ports | Ports 1-8 | Ports 1-8 | Ports 1 - 8 | - | Ports 1 - 8 | - | - | Ports 1 - 24 | - | Ports 1-48 |
Power-over-Ethernet | 802.3af/at/bt | 802.3af | 802.3af/at | - | 802.3af/at/bt | - | - | 802.3af/at | - | 802.3af/at |
Total PoE Budget | 420W | 55W | 130W | - | 240 W | - | - | 410W | - | 740W |
Form Factor | 13"1U | 9.45 (Desktop) | 13"1U | 13”1U | 13”1U | 13"1U | 13"1U | 19"1U | 19"1U | 19"1U |
Switching Capacity | 240 Gbps | 16 Gbps | 24 Gbps | 120 Gbps | 120 Gbps | 240 Gbps | 128 Gbps | 128 Gbps | 176 Gbps | 176 Gbps |
Packet Forwarding Rate | - | - | - | - | - | - | - | - | - | - |
MAC Address Table Size | 32k | 8k | 8k | 16k | 16k | 32k | 16k | 16k | 32K | 32K |
Packet Buffer Memory | - | 512KB | - | 512KB | 512KB | - | - | - | - | - |
Full load Power consumption | - | 62.05 Watts | - | 23.52 Watts | 299 Watts | - | - | - | - | - |
PoE Extended Mode | - | Yes | - | - | - | - | - | - | - | - |
PD Lifeguard | - | Yes | - | - | - | - | - | - | - | - |
Continuous PoE Power | - | Yes | - | - | - | - | - | - | - | - |
Dimensions | 330 x 230 x 44 mm | 240 x 105 x 27 mm | 330 x 230 x 44 mm | 330 x 230 x 44 mm | 330 x 230 x 44 mm | 330 x 230 x 44 mm | 330 x 230 x 44 mm | 440 x 260 x 44 mm | 440 x 260 x 44 mm | 440 x 310 x 44 mm |
Cloud Managed Mode | EnGenius Cloud | Yes | EnGenius Cloud | Yes | Yes | EnGenius Cloud | EnGenius Cloud | EnGenius Cloud | EnGenius Cloud | EnGenius Cloud |
On-premises Managed | - | - | - | - | - | - | - | - | - | - |
Standalone Mode | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
