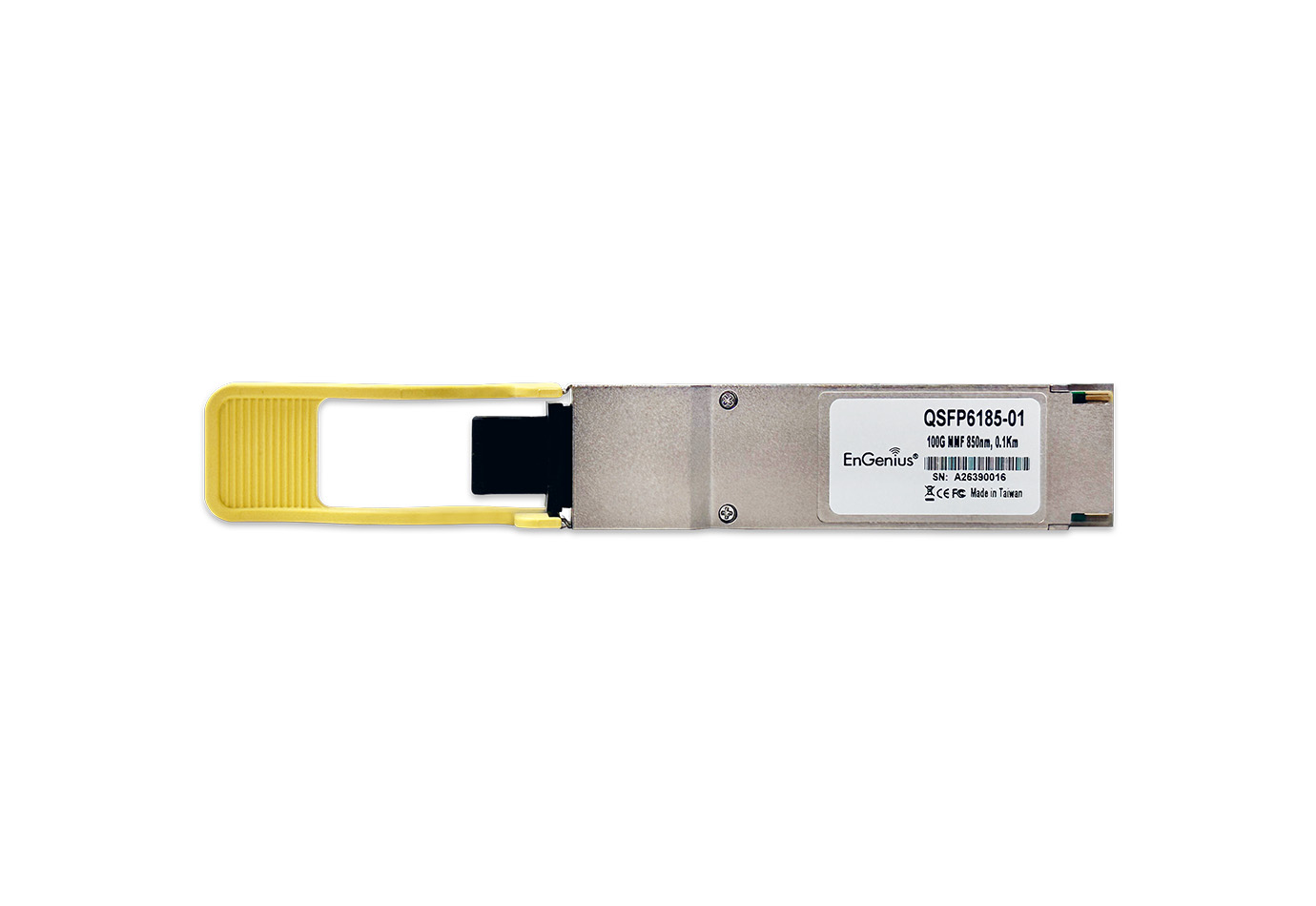

QSFP6185-01

100G QSFP28 SR4 Transceiver for High-Speed Data Centers

QSFP6185-01

Product Highlight

Deliver reliable 100Gbps connectivity with this QSFP28 SR4 transceiver, featuring 850nm multi-mode transmission up to 100 meters over OM4 fiber. Designed for high-density data center environments, it ensures stable performance, low power consumption, and seamless deployment with MPO/MTP connectivity.

  • 100Gbps data rate with 4×25Gbps channels
  • 850nm VCSEL for multi-mode fiber
  • Up to 100m transmission over OM4 MMF
  • QSFP28 MSA compliant design
  • MPO/MTP optical interface
  • Low power consumption ≤3.5W
  • Operating temperature: 0°C to 70°C
  • RoHS compliant

Technical Specifications

Connector Type

MTP/MPO

Data Rate

100 Gbps

Wavelength

850nm

Fiber Type

MMF

Max Transmission Distance

100m (OM4) / 70m (OM3)

Transmitter Characteristics

Supply Voltage

0.5 ~ 3.6V

Supply Current

1060 mA

Output Optical Power

-8.4 to 2.4 dBm

Receiver Characteristics

Supply Voltage

3.3V

Supply Current

1060 mA

Maximum Receiver Power

2.4 dBm

Optical Receiver Sensitivity

-9.2 dBm

Physical Specifications

Dimensions (WxDxH)

18.35 × 72.4 × 8.5 mm

Weight

40g

Environmental Limits

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Model Comparison

QSFP6185-01

SFP3510

SFP2500

SFP2313-20A

SFP3213-10A

Model Number QSFP6185-01 SFP3510 sfp2500 SFP2313-20A SFP3213-10A
Connector Type MTP/MPO RJ-45 RJ-45 LC LC
Data Rates 100 Gbps 10 Gbps 1.25 Gbps 1.25 Gbps 10 Gbps
Fiber Type MMF Copper Fiber to Copper SMF SMF
Max Transmission Dist. 100m (OM4) 100m 100m 20km 10km
View
View
View
View
View

Downloads

Type
Name
Version
Release Date
Download
Checksum
Data Sheet QSFP6185-01 Datasheet v1.0 July 07, 2026
