Fit6 2×2

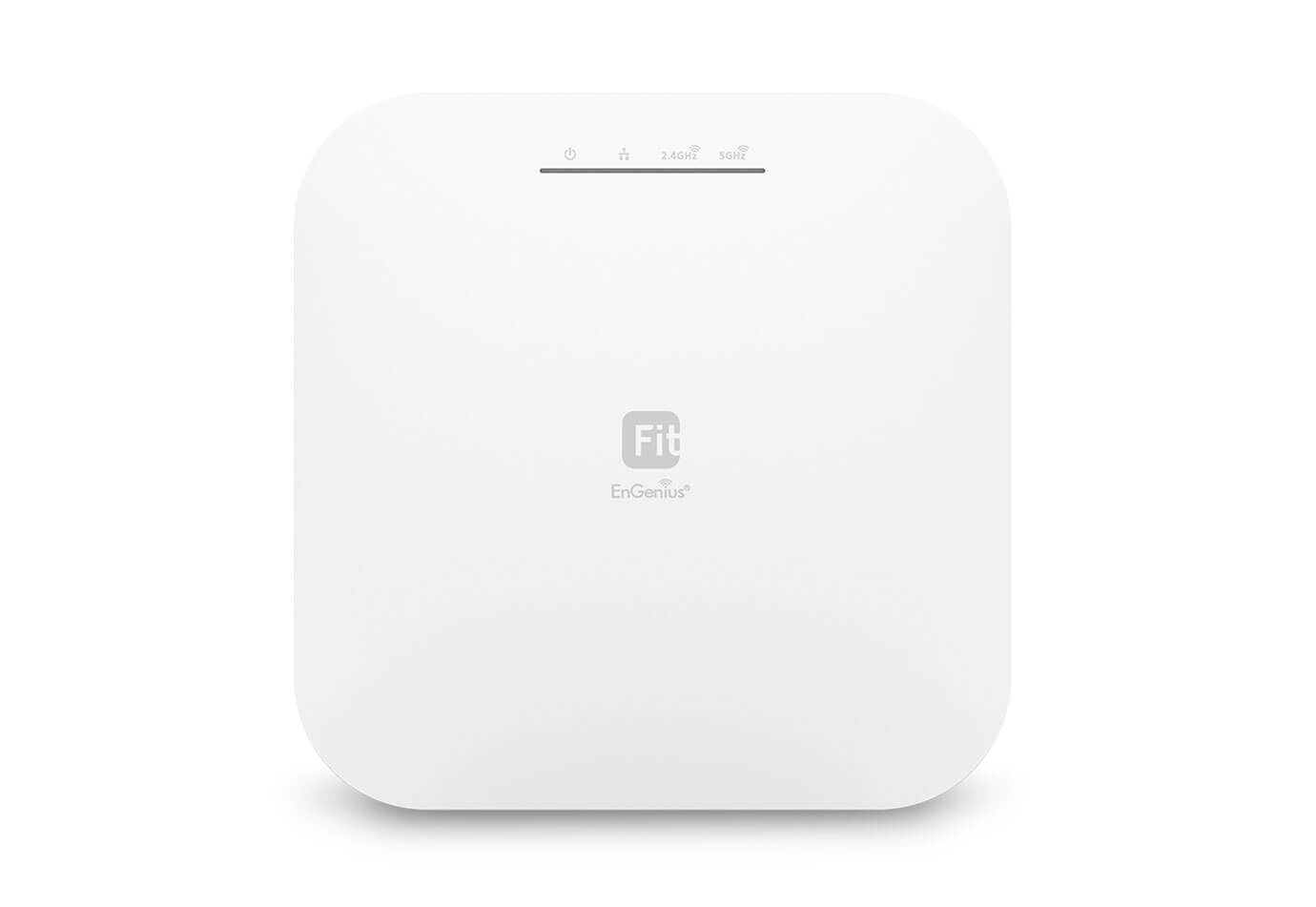

EnGenius Fit6 2x2 Managed Indoor Wireless Access Point offers advanced 802.11ax technology, granting users incredibly speedy and efficient performance with a maximum theoretical speed of 574 Mbps on the 2.4GHz frequency and an incredible 1,200 Mbps on 5GHz frequency! Furthermore it's safeguarded by top-tier WPA3/WPA2PSK AES encryption protocols for unparalleled security.
802.11a/b/g/n/ac/ax
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
1 x 10/100/1000 BASE-T
DC12V
Reset/Reboot button
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
PoE 802.3af/at
DC12V
12.8W
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Managed mode: AP, AP Mesh, Mesh
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Up to 22 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
2 × 2:2
Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio.
Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
5GHz radio.
Two(2) Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
802.11ax:
2.4 GHz: 9 to 287 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM) 802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK
128 per radio
Stand-Alone (Individually Managed)
FitXpress
FitController
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Storage: 90% or less
TBD
205 x 205 x 33 mm
1 – EWS276-FIT Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card
CB
N/A
Yes
Yes
FCC
CE
IC
UKCA
Fit6 2x2 |
Fit6 2x2 Lite |
Fit6 4x4 |
Fit6 4x4 Lite |
|
|---|---|---|---|---|
| Model Number | EWS357-FIT | EWS356-FIT | EWS377-FIT | EWS276-FIT |
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax | 802.11a/b/g/n/ac/ax | 802.11a/b/g/n/ac/ax | 802.11a/b/g/n/ac/ax |
| Radio | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz |
| Max. Data Rates(2.4 GHz) | 574 Mbps | 574 Mbps | 1,148 Mbps | 1,148 Mbps |
| Max. Data Rates(5 GHz) | 1,200 Mbps | 2,400 Mbps | 2,400 Mbps | 2,400 Mbps |
| Radio Chains | 2 x 2:2 | 2 x 2:2 | 4 x 4:4 | 4 x 4:4 |
| Transmit Power on(2.4 GHz) | 22 dBm | 21 dBm | 23 dBm | 23 dBm |
| Transmit Power on(5 GHz) | 22 dBm | 21 dBm | 23 dBm | 23 dBm |
| Antenna | 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) | 2 x 6 dBi (2.4 GHz); 2 x 7 dBi (5 GHz) | 4 x 5 dBi (2.4 GHz); 4 x6 dBi (5 GHz) | 2.4 GHz:4 x 5 dBi;5 GHz:4 x 5 dBi |
| Power-over-Ethernet | 802.3af/at | 802.3af | 802.3at | 802.3at |
| Ethernet Ports | 1x GE Port | 1x GE Port | 1x 2.5GE Port | 1x 2.5GE Port |
| Mounting Type | Ceiling / Wall | Ceiling / Wall | Ceiling / Wall | Wall/ Ceilling |
| Dimensions | 160 x 160 x 27 mm | 160 x 160 x 30 mm | 205 x 205 x 33.2 mm | 205 x 205 x 33 mm |
| Operating Modes | AP/Mesh | AP | AP/Mesh | AP/ Mesh |
| Mesh Technology | Yes | N/A | Yes | Yes |
| MU-MIMO | Yes | Yes | Yes | Yes |
| Beamforming | Yes | Yes | Yes | Yes |
| On-premise management (FitController) | Yes | Yes | Yes | Yes |
| Mobile app (FitExpress App) | Yes | Yes | Yes | Yes |
|
