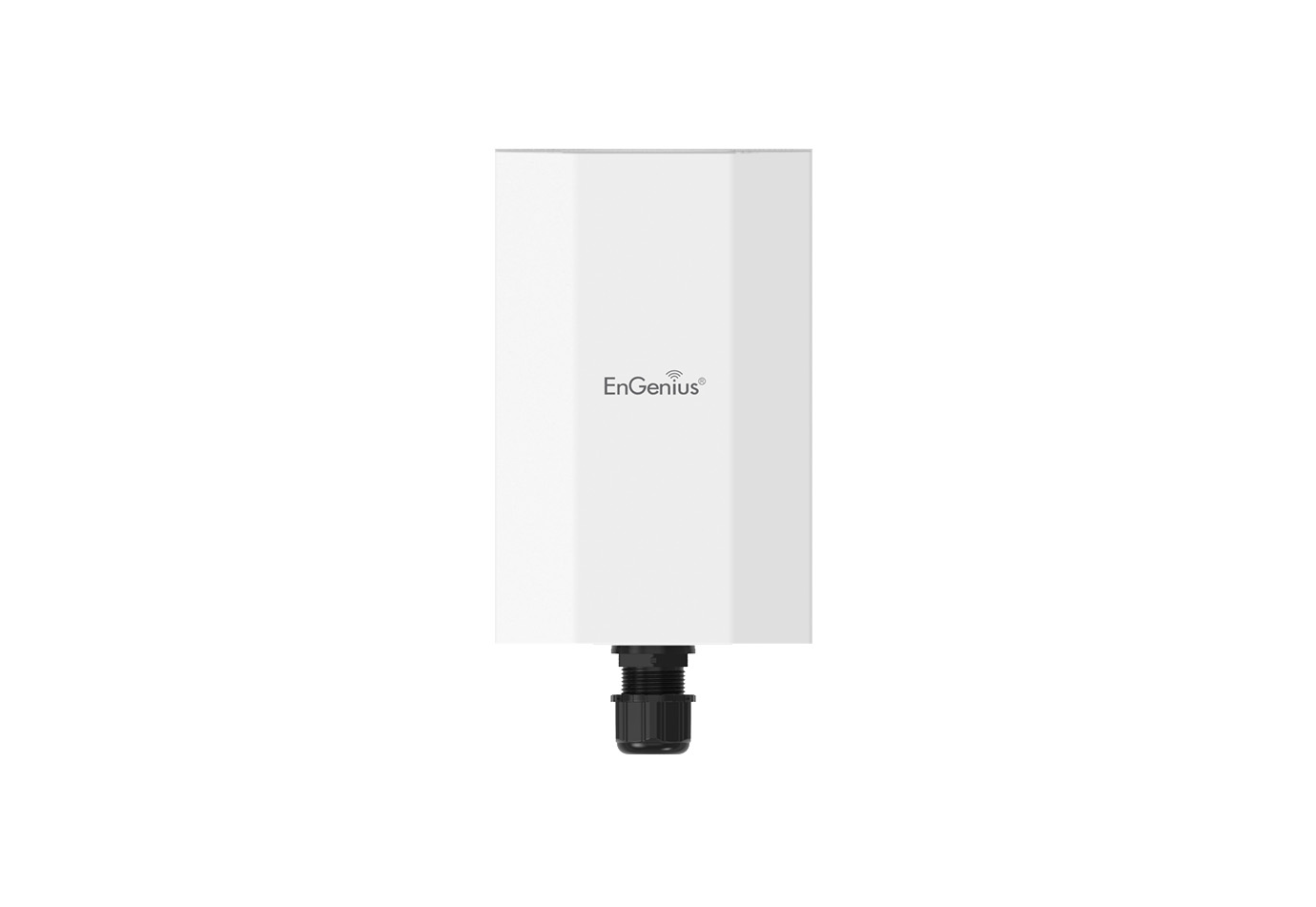

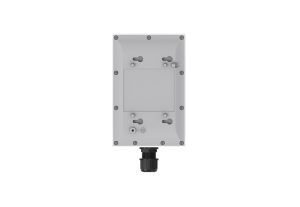

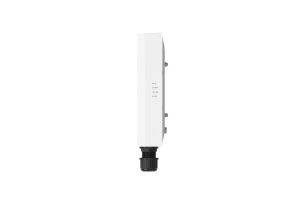

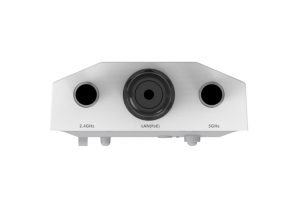

The EnGenius EOC620 802.11 ax 2x2 5GHz Broadband Outdoor Long Range mobile CPE offers reliable and efficient outdoor wireless connectivity with EnGenius proprietary MAC and polling protocal. It features high 26 dBm transmit power with SMA connectors to attach external antenna. It's IP67 weatherproof device suitable for transportation application.
IPQ6010+QCN5052, QCA8081
IEEE 802.11ax on 5 GHz
DDR3 512MB, Flash 128MB
2x 2.4GHz: 5 dBi External SMA
2x 5GHz : 5 dBi External SMA
1 x 2.5GE Port (PoE+)
Proceed reset and reboot when pushing this button
Proprietary 54V (EPA5006GR)
Base station(BSU)/Subscriber(SU)
4
Proprietary polling based OFDMA Scheduling Protocol
5 GHz: 5150 MHz ~ 5850 MHz
20 / 40 / 80 MHz
5 MHz
Up to 26 dBm (Combined)
Automatically detect optimal data rate for given link
Selects optimal channel to operate to maintain SLAs (CIR & MIR)
Automatically adapt the transmit power
Auto Channel Selection(ACS), Dynamic Channel Selection(DCS), Background Scan(BG Scan) features aid to adapt to varying RF medium
AES 256
Provides RF medium statistics
2x 2:2
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
1 x 2.5GE Port (PoE+)
10/100/1000/2500Mbps, Half/Full Duplex, Auto Negotiation
9K bytes
Passive 54V / 0.6A
STP Cat5e: MAX 130 meters
FTP Cat6: MAX 180 meters
1KV
PoE: Max. 15.9W
v1, v2c, v3
Internal MAC Address Control List
Downlink and Uplink traffic shaping
SSH, Web, TFTP, HTTP, HTTPS, Syslog
Android & IOS based Application for Radio Management
Alignment aid provided via variable audible tone generation algorithm
Bridging
IPv4
802.1Q: Transparent, Access, Trunk, Q-in-Q
DHCP Server
To improve the multicast traffic performance, IGMP Snooping
N/A
MAC, IP, Protocol, Port
Stratum 1 NTP Server using external server – less than 1msec accuracy
Asymmetric UL/DL committed and maximum information rate per Service Flow
802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s
Real Time priority-based services
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40º~176ºF/-40ºC~80ºC
Operating: 90% or less
Storage: 90% or less
IP67
165 Kmph
Contact: 4KV Air: 8KV
720 g
Width: 124 mm
Length: 190 mm
Height: 52.5 mm
1 – EOC620
2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
2 – 2.4GHz 5dBi SMA Antennas
2 – 5GHz 5dBi SMA Antennas
1 – Product Card
1 – EPA5006GR PoE Injector
CB
Yes
Yes
FCC
CE
IC
UKCA
VCCI
100K hours
Broadband Outdoor CPE |
Broadband Outdoor CPE |
Broadband Outdoor CPE |
||
|---|---|---|---|---|
| Model Number | EOC620 | EOC600 | EOC610 | |
| Chipset | IPQ6010+QCN5052, QCA8081 | IPQ5018+QCN6102, QCA8337 | IPQ5018+QCN6102, QCA8337 | |
| Radio | 5GHz | 5GHz | 5GHz | |
| Management Radio | 2.4GHz | 2.4GHz | 2.4GHz | |
| Data Rate (2.4 GHz) | - | - | - | |
| Data Rate (5 GHz) | 1200 Mbps | 1200 Mbps | 1200 Mbps | |
| Radio Chains | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 | |
| Tx Power (2.4 GHz) | 23 dBm | 9dBm | 15dBm | |
| Tx Power (5 GHz) | 25 dBm | 26dBm | 26dBm | |
| Antennas (2.4 GHz) | 2 x 5 dBi External Omni | 2.12dBi | 3.9dBi | |
| Antennas (5 GHz) | 2 x 5 dBi External Omni | 16dBi (Port1: 40°x20°;Port2: 40°x20°) | 19 dBi (Port1: 25°x20°; Port2: 17°x24°) | |
| Antenna Beamwidth | 360 ° | Azimuth:40°, Elevation:20° | Azimuth:25°, Elevation:24° | |
| Power-over-Ethernet | Proprietary 54V | Proprietary 54V | Proprietary 54V | |
| Ethernet Ports | 1x 2.5GE PoE+ port | 1x GE Proprietary PoE Port 1x GE Port | 1x GE Proprietary PoE Port ; 1x GE Port | |
| Mounting Type | Wall/Pole mount | Wall/Pole mount | Wall/Pole mount | |
| IP Rating | IP67 | IP55 | IP55 | |
| Dimensions | 124 x 190 x 52.5 mm | 260 x 84 x 55 mm | Φ190 x 38 mm | |
| Operating Modes | Base station(BSU)/ Subscriber(SU) | Base station(BSU)/Subscriber(SU) | Base station(BSU)/Subscriber(SU) | |
| MU-MIMO | Yes | Yes | Yes | |
| GPS | N/A | - | - | |
| Compass | N/A | - | - | |
| Dying Gasp | N/A | - | - | |
| Mobile app | Yes(SkyConnect) | Yes(SkyConnect) | Yes(SkyConnect) | |
|
