Cloud7 2×2

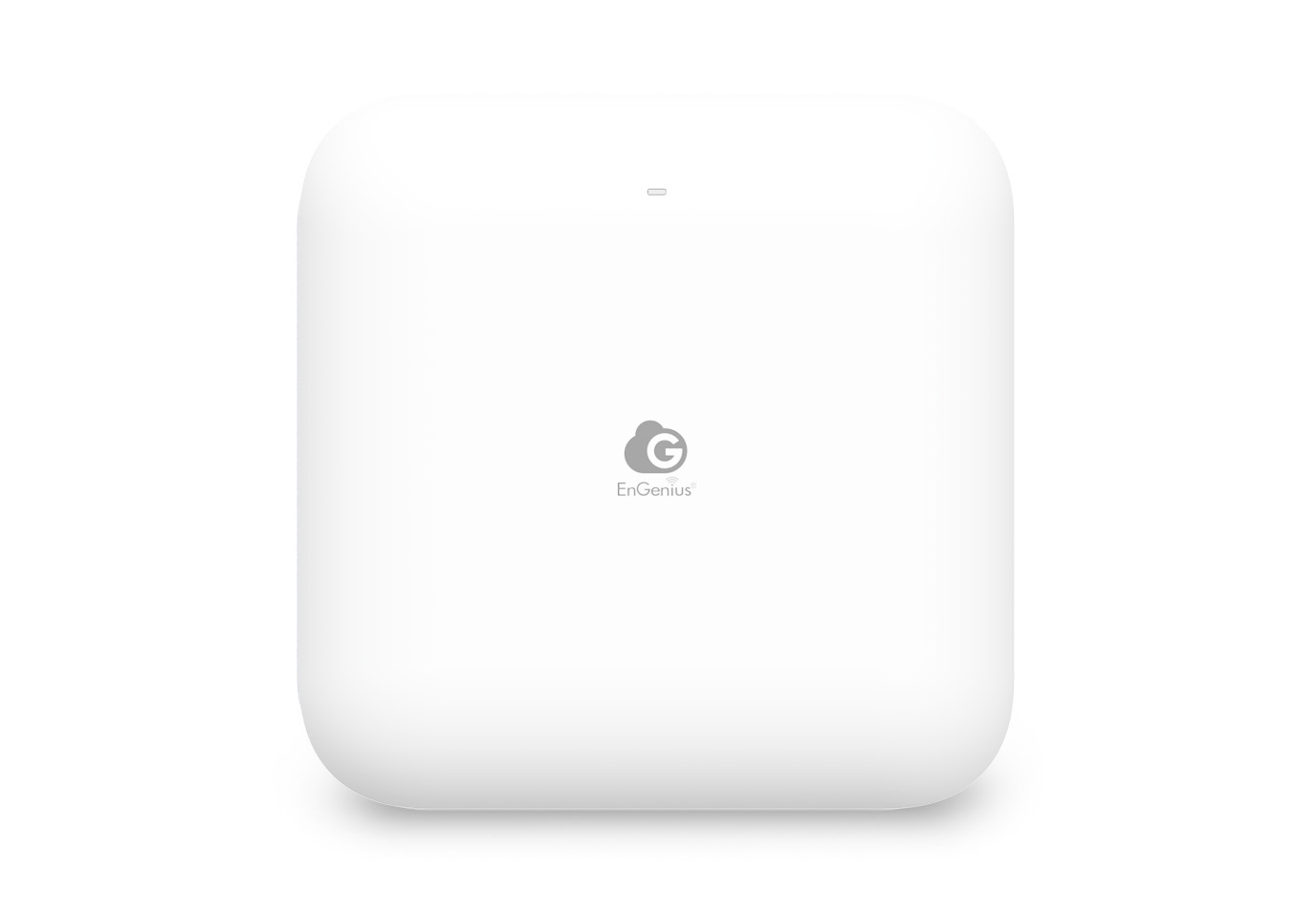

EnGenius Cloud Managed Wi-Fi 7 2x2 Access Point ECW510P supports dual concurrent 802.11be Wi-Fi 7 architecture, delivering supercharged speeds up to 4,300 Mbps (5 GHz), and up to 700 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab
2 x 2.4 GHz: 3 dBi(Integrated Omni-Directional)
2 x 5 GHz: 3.5 dBi(Integrated Omni-Directional)
N/A
N/A
1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset Button
1 x Multi-color LED
Power-over-Ethernet: 802.3at Input
12VDC /2.5A Power Adapter
21.384 W
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Managed mode: AP, AP Mesh, Mesh
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Up to 19 dBm on 2.4 GHz
Up to 19 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
2 × 2:2
Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with EHT240 to a 2×2 wireless device under the 5GHz radio.
Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with EHT240 to a 2×2 wireless device under the 5GHz radio simultaneously.
802.11be:
2.4 GHz: Max 700 (MCS0 to MCS13, NSS = 1 to 2)
5 GHz: Max 4,300 (MCS0 to MCS13, NSS = 1 to 2)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/240/320MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
FCC/CE/IC/JP
N/A
N/A
N/A
256
Yes
Yes
8 SSIDs on both 2.4GHz and 5GHz bands
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Supports 802.1d Spanning Tree Protocol
Compliance With IEEE 802.11e Standard
WMM
v1, v2c, v3
I/II, Private MIB
802.11k/v/r
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
IPv4
Supports HTTP or HTTPS
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -4 ºF~158 ºF (-20 ºC~70 ºC)
Operating: 90% or less
Storage: 90% or less
513.6g
Width: 158 mm
Length: 158 mm
Height: 35.8mm
1 – ECW510P Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card
FCC
IC
CE
UKCA
AU
JP
TW
Cloud7 2x2 |
Cloud7 2x2x2 |
Cloud7 4x4x4 |
Cloud7 2x3x3 Lite |
Cloud7 4x4x4 S |
Cloud7 2x2 |
Cloud7 2x2x2 |
|
|---|---|---|---|---|---|---|---|
| Model Number | ECW510P | ECW526 | ECW536 | ECW516L | ECW536S | ECW510 | ECW520 |
| Wi-Fi Standard | 11be | 11be | 11be | - | - | 11be | 11be |
| Radio | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz & 6 GHz | 2.4 GHz & 5 GHz & 6 GHz | - | - | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz & 6 GHz |
| Max. Data Rates(2.4 GHz) | 700 Mbps | 720 Mbps | 1,400 Mbps | - | - | 700 Mbps | 700 Mbps |
| Max. Data Rates(5 GHz) | 2,900 Mbps | 2,900 Mbps | 5,800 Mbps | - | - | 4,300 Mbps | 2,900 Mbps |
| Max. Data Rates(6 GHz) | - | 5,800 Mbps | 11,600 Mbps | - | - | - | 5,800 Mbps |
| Radio Chains | 2x2:2 | 2x2:2 | 4 × 4:4 | - | - | 2x2:2 | 2x2:2 |
| Transmit Power on(2.4 GHz) | - | - | - | - | - | - | - |
| Transmit Power on(5 GHz) | - | - | - | - | - | - | - |
| Transmit Power on(6 GHz) | - | 22 dBm | 24 dBm | - | - | - | 20 dBm |
| Antenna | 2.4 GHz:2 x 3 dBi Omni;5 GHz:2 x 3.5 dBi Omni; | 2 x 5 dBi Omni (2.4 GHz); 2 x 6 dBi Omni(5 GHz); 2 x 6 dBi Omni(6 GHz); | 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz); | - | - | 2.4 GHz:2.02 x 3 dBi Omni;5 GHz:2 x 5 dBi Omni; | 2.4 GHz:2 x 6 dBi Omni;5 GHz:2 x 6 dBi Omni;6 GHz:2 x 6 dBi Omni; |
| Power-over-Ethernet | 802.3at | 802.3at | 802.3bt | - | - | 802.3at | 802.3at |
| Scanning Radio | - | - | - | - | Yes | - | - |
| BLE | - | - | - | - | Yes | - | - |
| Power Consumption (Peak) | TBC | - | - | 20.7W | 37 W | 15.5 W | 25.4 W |
| Ethernet Ports | 1x 2.5GE PoE+port | 1x 10GE PoE+port | 1x 10GE PoE++port / 1x 10GE port | - | - | 1x 2.5GE PoE+port | 1x 2.5GE PoE+port |
| Mounting Type | Wall/ Ceilling | Wall/ Ceilling | Wall/ Ceiling | - | - | Wall/ Ceilling | Wall/ Ceilling |
| Dimensions | 158 x 158 x 35.8 mm | 190 x 190 x 39.5 mm | 230 x 230 x 39.5mm | - | - | 160 x 160 x 32 mm | 158 x 158 x 35.8 mm |
| Mesh Technology | Yes | Yes | Yes | - | - | Yes | Yes |
| Cloud To-Go app | Yes | Yes | Yes | - | - | Yes | Yes |
| EnWiFi app | - | - | - | - | - | - | - |
|
