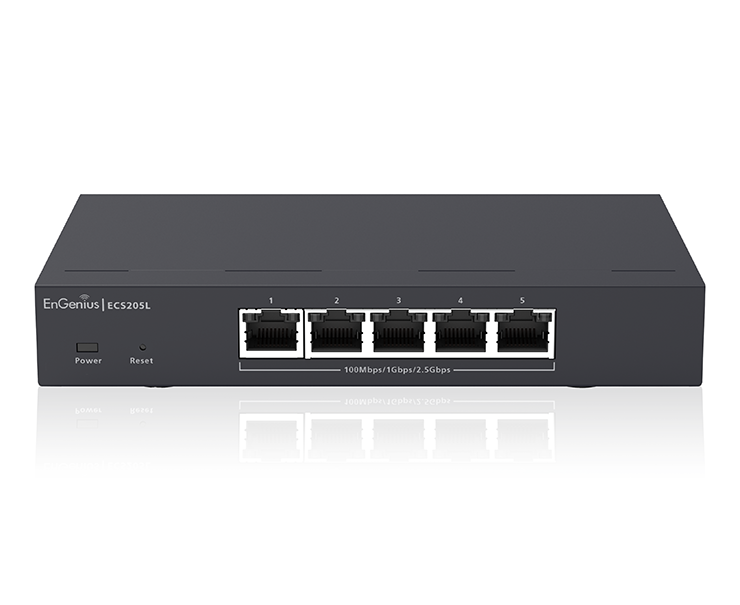

CloudSwitch MGLite 5
EnGenius Cloud Managed Cloud-Lite Multi-Gigabit 2.5Gb Switch, ECS205L provides SMBs with an easy-to-use and cost-effective network solution. It ensures high-speed data transfer for bandwidth-intensive applications with 5-Port 2.5G. With zero-touch provisioning and centralized cloud management, it simplifies network management and saves time.
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control
5×100/1000/2500 Mbps Ports
25Gbps
128MB
32MB
100 to 240 VAC, 50/60Hz
Power LED
Link/Activity/Speed (per Ethernet port)
EnGenius Cloud
Local Web GUI
4K
12K
Max 8 groups
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Strict / WRR/ Strict + WRR
Port-based bandwidth control (Ingress/Egress)
HTTP IPv4
HTTPS IPv4
Time Setting/Daylight saving
802.1w Rapid Spanning Tree
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
Voice VLAN
Port-based VLAN
CoS Mapping
IPv4 Settings
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast/Unknown Unicast Storm Control
Operating: 32°F to 104 °F (0°C to 40°C)
5% – 95%
Weight: 0.8 Ibs (0.4 kg)
Width: 4.13” (105 mm)
Length: 9,45” (240 mm)
Height: 1.06” (27 mm)
1x Cloud Managed Switch
1x Product Card
1x Power Adapter
1x Wall Mount Kit
1x Rubber Feet Cushion
CloudSwitch MGLite 5 |
CloudSwitch L2Plus 8 PoE |
CloudSwitch L2Plus 8 Full PoE |
CloudSwitch L2Plus 24 |
CloudSwitch L2Plus 24 PoE |
CloudSwitch L2Plus 24 Full PoE |
CloudSwitch L2Plus 48 |
CloudSwitch L2Plus 48 PoE |
CloudSwitch L2Plus 48 Full PoE |
|
|---|---|---|---|---|---|---|---|---|---|
| Model Number | ECS205L | ECS1008P | ECS1112FP | ECS1528T | ECS1528P | ECS1528FP | ECS1552 | ECS1552P | ECS1552FP |
| Switch Class | - | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ |
| Gigabit Ports | - | 8 | 10 | 24 | 24 | 24 | 48 | 48 | 48 |
| Multi-G Ports | - | - | - | - | - | - | - | - | - |
| SFP Ports | - | - | 2 | - | - | - | - | - | - |
| SFP+ Ports | - | - | - | 4 x 10G | 4 | 4 | 4 | 4 | 4 |
| QSFP28 Ports | - | - | - | - | - | - | - | - | - |
| MGNT Port | - | - | - | - | - | - | - | - | - |
| RJ45 Console Ports | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PoE Capable Ports | - | Ports 1-8 | Ports 1 - 8 | - | Ports 1-24 | Ports 1 - 24 | - | Ports 1-48 | Ports 1-48 |
| Power-over-Ethernet | - | 802.3af | 802.3af/at | - | 802.3af/at | 802.3af/at | - | 802.3af/at | 802.3af/at |
| Total PoE Budget | - | 55W | 130W | - | 240W | 410W | - | 410W | 740W |
| Form Factor | - | 9.45 (Desktop) | 13"1U | 13"1U | 19"1U | 19"1U | 19"1U | 19"1U | 19"1U |
| Switching Capacity | - | 16 Gbps | 24 Gbps | 128 Gbps | 128 Gbps | 128 Gbps | 176 Gbps | 176 Gbps | 176 Gbps |
| Packet Forwarding Rate | - | - | - | - | - | - | - | - | - |
| MAC Address Table Size | - | 8k | 8k | 16k | 16k | 16k | 32K | 32K | 32K |
| Packet Buffer Memory | - | 512KB | - | - | - | - | - | - | - |
| Full load Power consumption | - | 62.05 Watts | - | - | - | - | - | - | - |
| PoE Extended Mode | - | Yes | - | - | - | - | - | - | - |
| PD Lifeguard | - | Yes | - | - | - | - | - | - | - |
| Continuous PoE Power | - | Yes | - | - | - | - | - | - | - |
| Dimensions | - | 240 x 105 x 27 mm | 330 x 230 x 44 mm | 330 x 230 x 44 mm | 260 x 440 x 44 mm | 440 x 260 x 44 mm | 440 x 260 x 44 mm | 440 x 310 x 44 mm | 440 x 310 x 44 mm |
| Cloud Managed Mode | - | Yes | EnGenius Cloud | EnGenius Cloud | EnGenius Cloud | EnGenius Cloud | EnGenius Cloud | EnGenius Cloud | EnGenius Cloud |
| On-premises Managed | - | - | - | - | - | - | - | - | - |
| Standalone Mode | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
|
