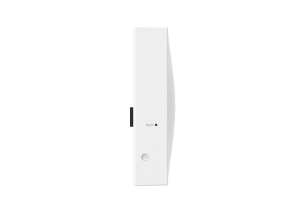

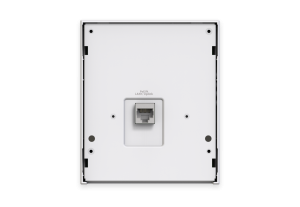

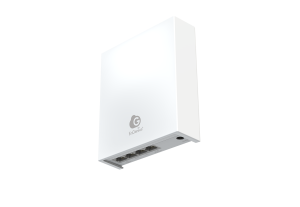

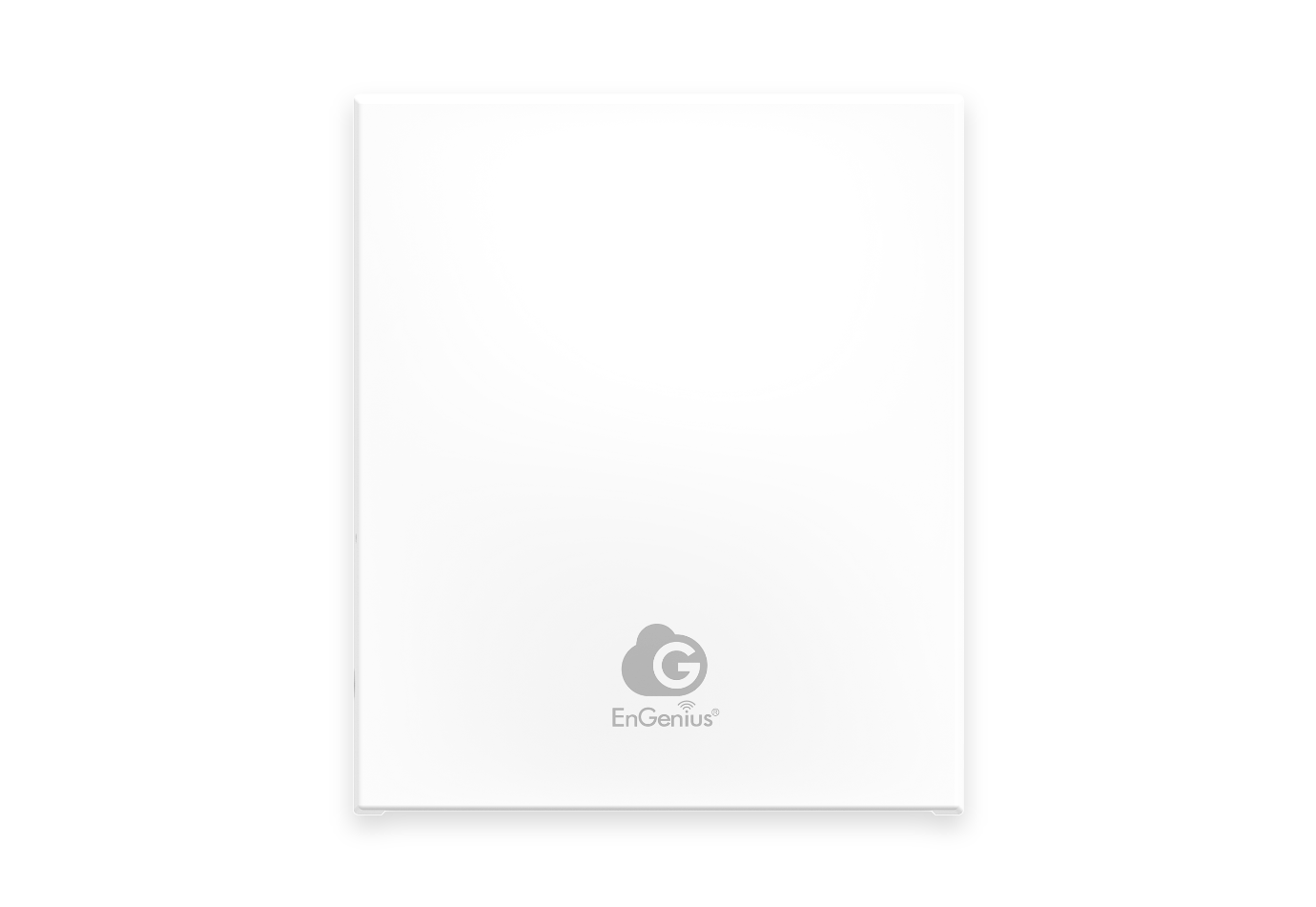

Cloud 7 2×2 Wallplate
EnGenius Cloud-Managed Wi-Fi 7 2x2 Access Point ECW515 delivers speeds up to 2,900 Mbps (5 GHz) and 700 Mbps (2.4 GHz). Featuring WPA3/WPA2-AES, Mesh support, remote management, and a built-in 4-port Gigabit switch, it ensures secure, reliable wired and wireless connectivity. Easily managed via EnGenius Cloud, it’s ideal for hotels, dorms, classrooms, and multi-tenant deployments.
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab
2 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
2 x 5 GHz: 5 dBi(Integrated Omni-Directional)
1 x 2.5GE Port (PoE+)
4 x 1GE Port
1 x DC Jack
1 x Reset Button
1 x Multi-color LED
Power-over-Ethernet: 802.3at Input
54VDC / 1A Power Adapter
DC in 26W, PoE in 18W
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Managed mode: AP, AP Mesh, Mesh
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Up to 21 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
2 × 2:2
Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 2,900 Mbps wireless data rate with EHT160 to a 2×2 wireless device under the 5GHz radio.
Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream MU-MIMO for up to 2,900 Mbps wireless data rate with EHT160 to a 2×2 wireless device under the 5GHz radio simultaneously.
802.11be:
2.4 GHz: Max 700 (MCS0 to MCS13, NSS = 1 to 2)
5 GHz: Max 2,900 (MCS0 to MCS13, NSS = 1 to 2)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1,200 (MCS0 to MCS11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 2)
802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
512
Yes
Yes
8 SSIDs on both 2.4GHz and 5GHz bands
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Supports 802.1d Spanning Tree Protocol
Compliance With IEEE 802.11e Standard
WMM
Compliance With IEEE 802.11e Standard
WMM
I/II, Private MIB
802.11r/k
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
IPv4, IPv6
Supports HTTP or HTTPS
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Operating: 90% or less
Storage: 90% or less
328g
Width: 110 mm
Length: 130 mm
Height: 42mm
1 – ECW515 Cloud Managed Indoor Access Point
1 – Mount Bracket
1 – Bracket Screws
1 – Product Card
FCC
CE
IC
UKCA
VCCI
AU
Cloud 7 2x2 Wallplate |
Cloud7 4x4x4 |
Cloud7 2x2x2 |
Cloud7 2x3x3 Lite |
Cloud7 2x2 |
Cloud7 2x2x2 |
|
|---|---|---|---|---|---|---|
| Model Number | ECW515 | ECW536 | ECW526 | ECW516L | ECW510 | ECW520 |
| Wi-Fi Standard | 11be | 11be | 11be | - | 11be | 11be |
| Radio | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz & 6 GHz | 2.4 GHz & 5 GHz & 6 GHz | - | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz & 6 GHz |
| Max. Data Rates(2.4 GHz) | 700 Mbps | 1,400 Mbps | 720 Mbps | - | 700 Mbps | 700 Mbps |
| Max. Data Rates(5 GHz) | 2,900 Mbps | 5,800 Mbps | 2,900 Mbps | - | 2,900 Mbps | 2,900 Mbps |
| Max. Data Rates(6 GHz) | - | 11,600 Mbps | 5,800 Mbps | - | - | 5,800 Mbps |
| Radio Chains | 2x2:2 | 4 × 4:4 | 2x2:2 | - | 2x2:2 | 2x2:2 |
| Transmit Power on(2.4 GHz) | 21 dBm | 25 dBm | 23 dBm | - | 21 dBm | 23 dBm |
| Transmit Power on(5 GHz) | 22 dBm | 24 dBm | 22 dBm | - | 20 dBm | 23 dBm |
| Transmit Power on(6 GHz) | - | - | - | - | - | - |
| Antenna | 2.4 GHz:2 x 3 dBi Omni;5 GHz:2 x 4 dBi Omni; | 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz); | 2 x 5 dBi Omni (2.4 GHz); 2 x 6 dBi Omni(5 GHz); 2 x 6 dBi Omni(6 GHz); | - | 2.4 GHz:2.02 x 3 dBi Omni;5 GHz:2 x 5 dBi Omni; | 2.4 GHz:2 x 6 dBi Omni;5 GHz:2 x 6 dBi Omni;6 GHz:2 x 6 dBi Omni; |
| Power-over-Ethernet | 802.3at | 802.3bt | 802.3at | - | 802.3at | 802.3at |
| Scanning Radio | - | - | - | - | - | - |
| BLE | - | - | - | - | - | - |
| Power Consumption (Peak) | DC in 26W, PoE in 18W | - | - | 20.7W | 15.5 W | 25.4 W |
| Ethernet Ports | 1x 2.5GE PoE+port ;4 x GE port; | 1x 10GE PoE++port / 1x 10GE port | 1x 10GE PoE+port | - | 1x 2.5GE PoE+port | 1x 2.5GE PoE+port |
| Mounting Type | Wall | Wall/ Ceiling | Wall/ Ceilling | - | Wall/ Ceilling | Wall/ Ceilling |
| Dimensions | 110 x 130 x 39.1 mm | 230 x 230 x 39.5mm | 190 x 190 x 39.5 mm | - | 160 x 160 x 32 mm | 158 x 158 x 35.8 mm |
| Mesh Technology | Yes | Yes | Yes | - | Yes | Yes |
| Cloud To-Go app | Yes | Yes | Yes | - | Yes | Yes |
| EnWiFi app | - | - | - | - | - | - |
|
