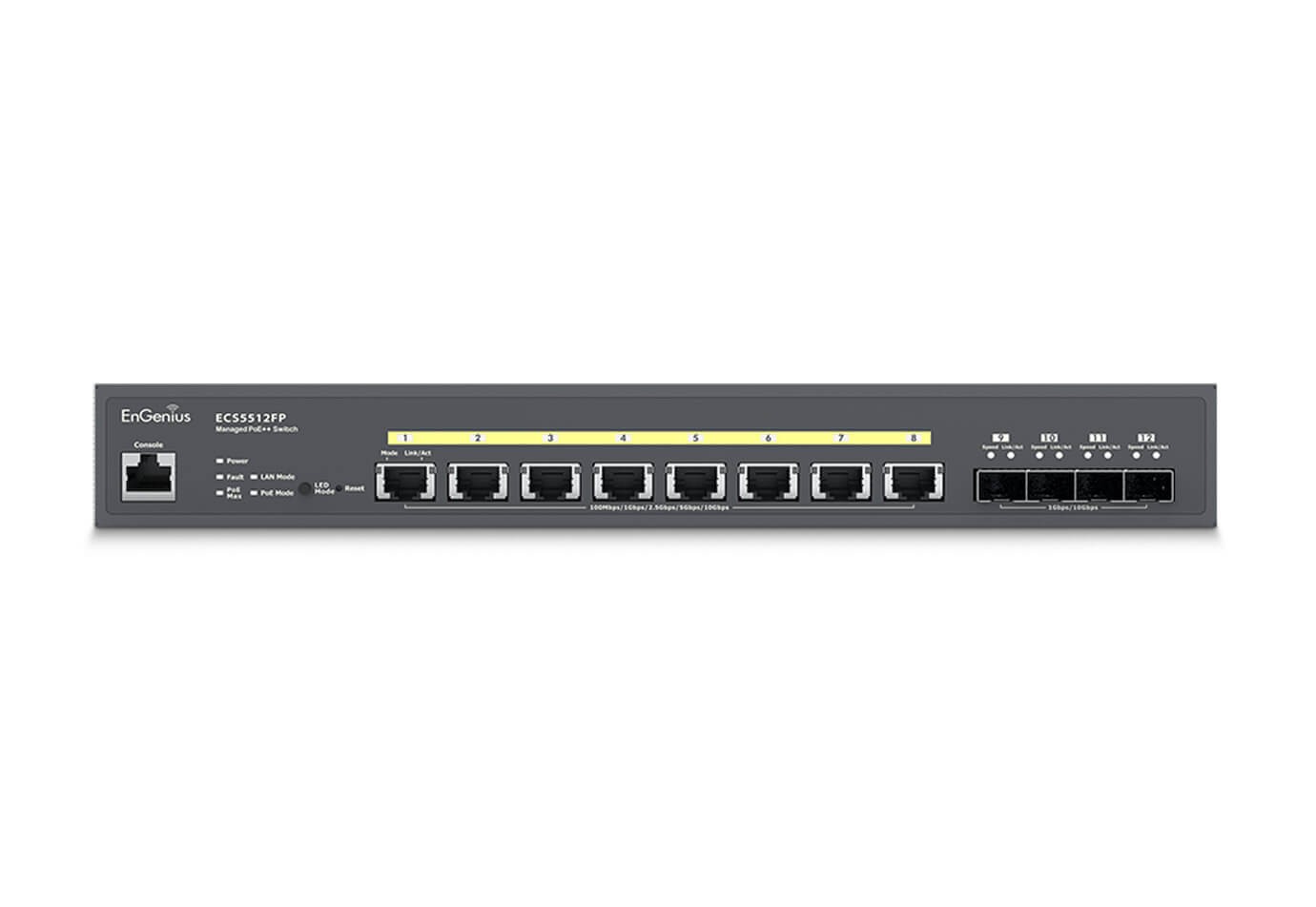

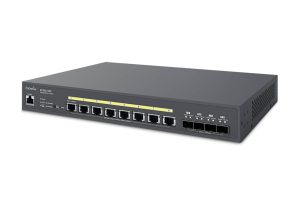

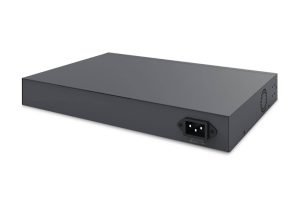

CloudSwitch Aggregate 8XG Full PoE

Switch de red PoE ++ de 8 puertos 10G Base-T 420W Gestionado por Cloud

ECS5512FP

Product Highlight

El Switch de 8 puertos ECS2512FP gestionado por Cloud presenta opciones de configuración, monitoreo y administración de red simplificadas junto con una interfaz web de sencillo uso.

Downloads

If you are unable to find the file, please get it in the download center.

Technical Specifications

Port Standards

802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control

Network Ports

8 x 100/1000/2500/5000/10000 Mbps Ports

Switching Capacity

240 Gbps

SDRAM

512 MB

Flash Memory

128 MB

Power Source

100 ~ 240VAC, 50/60Hz

Physical Interface

LED Indicators

Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED

Ports

Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud ezMaster Local Web GUI

MAC Address Table

32K

Jumbo Frame

9K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8

Trust Mode

Cos/802.1p DSCP CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Timebase ACL

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6

SSL Certificate

Certificate/Key Import

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1d Spanning tree Loopback Detection Multicast Filtering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IEEE 802. 3az Energy Efficient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS2512FP Device

Weight: 3.1  kg Width: 230 mm Length: 330 mm Height: 44 mm

Package Contents

1x ECS Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit

Warranty

2 Years

Model Comparison

CloudSwitch Aggregate 8XG Full PoE

CloudSwitch Aggregate 8XG

ECS2512

ECS2512FP

CloudSwitch L2Plus 48

ECS1528

CloudSwitch L2Plus 8 PoE

CloudSwitch L2Plus 8 Full PoE

CloudSwitch L2Plus 24 Full PoE

CloudSwitch L2Plus 48 Full PoE

Model Number ECS5512FP ECS5512 ECS2512 ECS2512FP ECS1552 ECS1008P ECS1112FP ECS1528FP ECS1552FP
Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ports - - - - N/A 24 8 10 24 48
Multi-G Ports 8 x 10G 8 x 10G 8 x 2.5G 8 x 2.5G - - - - - -
SFP Ports - - - - - - - 2 - -
SFP+ Ports - - 4 4 - 4 - - - -
RJ45 Console Port Yes Yes - Si Yes Si - Yes Yes Yes
PoE Capable Port Ports 1 - 8 - - Ports 1 - 8 - - Ports 1 - 8 Ports 1 - 8 Ports 1 - 24 Ports 1 - 48
Power-over-Ethernet 802.3af/at/bt - - 802.3af/at/bt - - 802.3af 802.3af/at 802.3af/at 802.3af/at
Total PoE Budget 420 W - - 240W - - 55W 130W 410W 740W
Form Factor 13”1U 13”1U 13”1U 13”1U 19”1U 19”1U 9.45 (Desktop) 13”1U 19”1U 19”1U
Switching Capacity 240 Gbps 240 Gbps 120 Gbps 120 Gbps 176 Gbps 128 Gbps 16 Gbps 24 Gbps 128Gbps 176 Gbps
Packet Forwarding Rate - - - - - - - - - -
MAC Address Table Size 32K 32K 16K 16K 32k 16K 8K 8K 16K 32K
Continuous PoE Power - - - - - - - - - -
Dimensions 230 x 330 x 44 mm 230 x 330 x 44 mm 330 x 230 x 44 mm 330 x 230 x 44 mm 260 x 440 x 44 mm 440 x 200 x 44 mm 105 x 240 x 27mm 330 x 230 x 44 mm 260 x 440 x 44 mm 310 x 440 x44 mm
Cloud Managed Mode Yes Yes EnGenius Cloud EnGenius Cloud Yes EnGenius Cloud Yes EnGenius Cloud Yes Yes
On-premises Managed Yes Yes Yes Yes Yes Yes Yes - Yes Yes
Standalone Mode Yes Yes Si Si Yes Si Yes Yes Yes Yes
