Sistema Wi-Fi para el Hogar EnMesh™

Product Highlight

El sistema Wi-Fi para el hogar EnMesh cubre su hogar o pequeña oficina con un servicio de Wi-Fi rápido y fiable, eliminando los puntos muertos y el retraso en el búfer. EnMesh simplifica la configuración Wi-Fi y el control de red a través de la aplicación móvil de EnMesh y utiliza sensores inteligentes para detectar la mejor conexión, solucionando problemas de red a través de la tecnología de malla.

* Velocidad AC1200 Admite video y audio sin búfer en todas las habitaciones
* Mesh (malla) Wi-Fi simplificada: sin cables y sin software para configurar
* Configuración rápida paso a paso a través de la aplicación móvil EnMesh ™ y Bluetooth®
* Funciones completas de visión de red, control y resolución de problemas
* Disponible en Pack Unitario (EMR3000) y Triple (EMR3000-KIT)
* Coberturas del Pack (x1) Aprox. 150 metros cuadrados; Cobertura del Pack (x3) aprox. 450 metros cuadrados.


File Name Type
download iconEMR3000 FW v1.6.7 Firmware
download iconEMR3000v2 CE-DoC EU CE Declaration
download iconEMR3000 FW v1.6.5 Firmware
download iconEMR3000 QIG EN Quick Guide
download iconEMR3000 Datasheet EN Data Sheet

If you are unable to find the file, please get it in the download center.

Technical Specifications


IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac on 5 GHz


(4) Integrated Omni-Directional Antennas

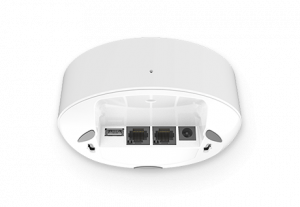

Physical Interface

2 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Ports (1 WAN, 1 LAN)
1 x USB 2.0 Port

1 x DC Jack
1 x Reset Button
2 x Wall Mount Holes

LED Indicators

1 x 4 Color-Status LED –
White: Mesh & Internet Connection Status
Blue: Bluetooth Connection Status
Red: No Internet Connection or No Mesh Connection
Orange: Mesh Connection Signal is Weak

Power Source

Power Adapter: 12V/1.5A


Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Router Mode
Mesh AP Mode

Max. Nodes


Wireless Initial Setup

Bluetooth® Ready
EnMesh App Required

Frequency Radio

2.4 GHz: 2400 MHz ~ 2835 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 20 dBm on 2.4 GHz
Up to 19 dBm on 5 GHz

Radio Chains/Spatial Stream

2 x 2:2 MIMO

Max. Speeds

300 Mbps on 2.4 GHz
867 Mbps on 5 GHz

Supported Data Rates (Mbps)

2.4 GHz: Max 300
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)


802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11a/b/g Supports High Throughput (HT)—20 MHz

Supported Modulation

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM


System Features


Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
AirPrint® Server Support
Restore Factory Settings
Auto Reboot
Internet Speed Test
Mesh Connection Status
USB Features: SAMBA
UPnP Support
System Recovery
Manual/Auto Firmware Update
Band Steering
Port Forwarding
UID/DDNS Remote Control

Parental Controls

Wi-Fi Access Scheduler
Pause Internet
Guest Network per Band
Website & Keyword Filter – coming soon
– IP
– Port

QoS (Quality of Service)

– coming soon

Wireless Security

WPA2 Enterprise (AES)
SSID Password

Network Services

Static IP

Mobile App

EnMesh (setup, monitoring, parental control)
EnFile (private cloud storage)
Available for iPhone® & Android™

Environmental & Physical

Temperature Range

Operating: 32 ºF~104 ºF (0 ºC~40 ºC)
Storage: -4 ºF~140 ºF (-20 ºC~60 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

EMR3000 Device

Weight: .5 lbs (234 g)
Width: 5” (126.8 mm)
Length: 5” (126.8)
Height: 1.86” (47.2 mm)

EMR3000 Package Contents

1 x EMR3000 Dual-Band AC1200 Mesh Router
1 x Power Adapter
1 x Quick Start Guide
1 x RJ-45 Ethernet Cable

EMR3000-KIT Package Contents

3 x EMR3000 Dual-Band AC1200 Mesh Routers
3 x Power Adapter
1 x Quick Start Guide
1 x RJ-45 Ethernet Cable




Model Comparison



Model Number
Wi-Fi Standard 802.11ac 802.11ac
Radio - -
Max. Data Rates(2.4 GHz) 300 Mbps 300 Mbps
Max. Data Rates(5 GHz) 867 Mbps 867 Mbps
Radio Chains 2x2:2 MIMO 2x2:2 MIMO
Transmit Power on(2.4 GHz) - -
Transmit Power on(5 GHz) - -
Antenna 4 * Integrated Omni-Directional 4 * Integrated Omni-Directional
Ethernet Ports - -
Dimensions 127 x 47.2mm (Diameter x Height) 127 x 47.2mm (Diameter x Height)
Mesh Technology - -
EnMesh app - -
EnFile app - -
