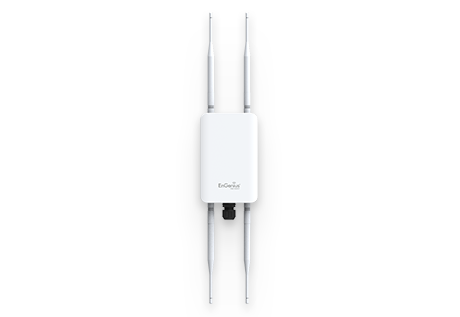

Extienda su cobertura inalámbrica de alta velocidad en exteriores con el ENH1350EXT, un punto de acceso inalámbrico AC1300 Doble Banda Wave 2 para Exteriores 11ac, 2x2, MU-MIMO, Mesh. Alcanzando velocidades de 867 Mbps en 5 GHz y de 400 Mbps en la banda de frecuencia de 2.4 GHz. Este AP rico en funciones aprovecha una tecnología avanzada de antena Wi-Fi y Beamforming, maximizando el rendimiento y la fiabilidad al tiempo que aumenta en gran medida las capacidades de usuarios de la red de exterior. El AP está diseñado para operar en condiciones ambientales adversas e incluye una robusta carcasa impermeable y a prueba de polvo con clasificación IP67 para protegerlo de los elementos adversos.
| File Name | Type |
|---|---|
 ENH1350EXT FW v3.7.5_c1.9.51
|
Firmware |
|
ENH1350EXT Datasheet EU
|
Data Sheet |
|
ENH1350EXT FWv3.5.7_c1.9.04
|
Firmware |
|
ENH1350EXT ECW160 CE-DoC EU
|
CE Declaration |
|
ENH1350EXT UM EN
|
User Manual |
|
ENH1350EXT QIG EN
|
Quick Guide |
|
ENH1350EXT-FWv3.9.3.2_c1.9.51
|
Firmware |
|
ENH1350EXT-v3.9.1.7_c1.9.51
|
Firmware |
|
ENH1350EXT-all-v3.7.20.1_c1.9.51
|
Firmware |
|
ENH1350EXT FW v3.7.8.2 c1.9.51
|
Firmware |
If you are unable to find the file, please get it in the download center.
IEEE 802.11b/g/n on 2.4GHz
IEEE802.11a/n/ac on 5GHz
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type
1 x 10/100/1000 Gigabit Ethernet Ports
1 x Reset Button
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power-over-Ethernet:
IEEE 802.3af PoE input
and Proprietary 48V
12.6W
1KV
Air: 8KV
Dual-Radio Concurrent 2.4GHz & 5 GHz
Access Point Mode (AP Mode)
Client Bridge Mode (CB Mode)
WDS: AP Mode and Bridge Mode (Mesh Mode Coming Soon)
2.4GHz: 2400 MHz ~ 2835 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
2.4 GHz: 23 dBm
5 GHz: 23 dBm
2 x 2:2
Two (2) Spatial Stream SU-MIMO up to 1267 Mbps to a single client
Two (2) Spatial Stream MU-MIMO up to 1267 Mbps to two (2) MU-MIMO capable wireless devices simultaneously
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2×2 MIMO with 2 Streams
802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz
802.11n supports high throughput (HT)—HT 20/40 MHz
802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Supports 16 SSIDs (8 SSIDs per band)
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass-Through
Management VLAN
Compliant with IEEE 802.11e Standard
RSSI Threshold
Traffic Shaping
Save Configuration as Default
Auto Transmit Power
Auto Channel Selection
Site Survey
PMK Caching
Distance Control (ACK Timeout)
Multicast Supported
Fast Roaming
Email Alerts
Wi-Fi Scheduler
Client Traffic Status
Guest Network
RADIUS Accounting
Power Save Mode (U-APSD Support)
CLI Support
v1, v2c, v3
I/II, Private MIB
WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 64 MACs per SSID
Wireless STA (Client) Connected List
Https
SSH
Client Isolation
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -22Fº~176ºF/-40ºC~80ºC
Operating: 90% or less
Storage: 90% or less
IP67-Rated Enclosure
Width: 4.37” (111.2 mm)
Length: 6.83” (173.6 mm)
Height” 1.19” (30.29 mm)
1 – ENH1350EXT Dual-Band AC1300 Outdoor Access Point
1 – Power Adapter (54V/0.6A)
1 – Proprietary PoE Adapter (EPA5006GR)
2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
2 – 2.4GHz 5dBi SMA Antennas
2 – 5GHz 5dBi SMA Antennas
1 – Quick Installation Guide
FCC
CE
ENH1350EXT |
ENS620EXT |
EWS660AP |
EWS860AP |
|
|---|---|---|---|---|
| Model Number | ||||
| Wi-Fi Standard | 802.11ac Wave2 | 802.11ac Wave2 | 802.11ac | 802.11ac |
| Radio | 2.4 GHz & 5GHz | 2.4 GHz & 5GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz |
| Max. Data Rates(2.4 GHz) | 400 Mbps | 400 Mbps | 450 Mbps | 450 Mbps |
| Max. Data Rates(5 GHz) | 867 Mbps | 867 Mbps | 1,300 Mbps | 1,300 Mbps |
| Max. Data Rates(6 GHz) | - | - | - | - |
| Radio Chains | 2 x 2:2 | 2 x 2:2 | 3 x 3:3 | 3 x 3:3 |
| Transmit Power on(2.4 GHz) | Up to 23 dBm | Up to 27 dBm | 5 dBi | Up to 29 dBm |
| Transmit Power on(5 GHz) | Up to 23 dBm | Up to 27 dBm | 5 dBi | Up to 29 dBm |
| Transmit Power on(6 GHz) | - | - | - | - |
| Antenna | 4 x 5 dBi Omni SMA-Type (Detachable) | 4 x 5 dBi Omni SMA-Type (Detachable) | 3 x 5 dBi (2.4 GHz) Omni ; 3 x 5 dBi (5 GHz) Omni(Internal) | 3 x 5 dBi (2.4 GHz) Omni ; 3 x 7 dBi (5 GHz) Omni (Detachable) |
| Power-over-Ethernet | 802.3af/at | 24V Proprietary | 802.3at PoE I | 802.3at (at in + af out) |
| Scanning Radio | - | - | - | - |
| BLE | - | - | - | - |
| Ethernet Ports | 1 x 10/100/1000 Ethernet Port | 2 x 10/100/1000 Ethernet Ports | 2 x 10/100/1000 Gigabit Ethernet Ports | 2 x 10/100/1000 Ethernet Ports |
| Mounting Type | Pole/Wall | Pole / Wall | Pole / Wall | Ceiling / Wall |
| Dimensions | 111.2 x 173.6 x 30.29 mm | 191.6 x 114.3 x 47.7 mm | 181 x 304 x 46 mm | 285 x 217.93 x 53.34 mm |
| Mesh Technology | Yes | Yes | Yes | Yes |
| Cloud To-Go app | - | - | - | - |
| EnWiFi app | Yes | Yes | Yes | Yes |
|
