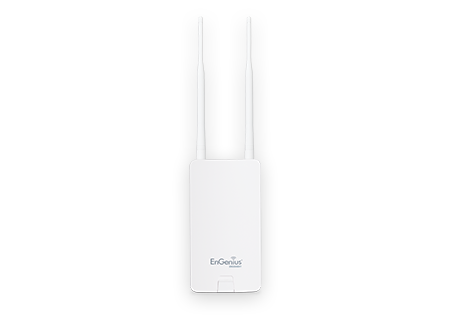

ENS500EXT

Punto de Acceso inalámbrico para exteriores; N300 5GHz Antenas Extraíbles

Product Highlight

Despliegue el ENS500EXT en áreas densamente pobladas donde prevalecen 2.4 GHz. Menos interferencia asegura velocidades constantes en entornos abarrotados para conexiones de un edificio a múltiples edificis a 1Km; o como AP proporcionando Wi-Fi a dispositivos móviles de 5 GHz en exteriores. Poténcielo con la antena sectorial SA5219 para rangos extendidos.

  • Velocidades de 11n a 300 Mbps en la banda de 5 GHz menos congestionada
  • La carcasa resistente a la intemperie con clasificación IP55 resiste climatologías adversas
  • (2) Antenas MIMO desmontables de 5 dBi Maximizan la cobertura de 360 °
  • PoE extiende alimentación a áreas no cableadas; Conecte una cámara IP o APs a través del segundo puerto

Downloads

File Name Type

If you are unable to find the file, please get it in the download center.

Technical Specifications

Standard

IEEE 802.11a/n on 5 GHz

Memory Capacity

Memory: 64 MB
Flash Memory 16 MB

Antenna

2 External Detachable Omni-Directional Antennas
5 dBi on 5 GHz

Physical Interface

2 x 10/100 Fast Ethernet Ports
1 x Reset Button

LED Indicators

1 x Power
WLAN (Wireless Connection)
5 GHz
2 x LAN

Power Source

PoE injector (EPA2406GP)
100V~240V AC, 50-60Hz
0.4A @ 120V AC
Surge Protection: 1KV
ESD Protection
Contact: 4KV
Air: 8KV

Mounting

Wall Mount
Pole Mount

Ingress Protection Marking

IP55-Rated Enclosure

Wireless & Radio Specifications

Operating Frequency

5GHz

Operation Modes

Access Point
Repeater
Client Bridge
Client Router
WDS: AP, Bridge

Frequency Radio

5GHz:
5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz

Transmit Power

Up to 26 dBm on 5 GHz
Max transmit power is limited by regulatory power

Radio Chains/Spatial Streams

2 x 2:2

Supported Data Rates (Mbps)

5 GHz: Max 300
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)

Supported Radio Technology

802.11a/n: Orthogonal frequency-division Multiplexing (OFDM)

Channelization

802.11n with 20/40 MHz channel width
802.11a with 20 MHz channel width

Supported Modulation

802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM

AP Radio Settings

AP Client Limiting
VLANs for AP – Multiple SSIDs
Wi-Fi Scheduler
Traffic Shaping
Client Traffic Status

Management Features

Multiple BSSID

Supports up to 4 SSIDs

VLAN Tagging

Supports 802.1q SSID-to-VLAN tagging
VLAN Pass-through

Spanning Tree

QoS

WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Deployment Options

Standalone (Individually Managed)

Configuration

Web Interface (HTTP)
CLI (Telnet)

Control Features

Auto Reboot
Firmware Upgrade

Security

WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support

Environmental & Physical

Temperature Range

Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C

Humidity (Non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

ENS500EXT Device

Weight: 0.66 lbs.
Width: 3.93″ (100 mm)
Length: 7.08″ (186 mm)
Height: 1.14″ (29 mm)

Package Contents

– ENS500EXT Outdoor AP
– PoE Injector (EPA2406GP)
– Pole Mount Ring
– Mounting Screw Set
– Quick Installation Guide
– 2 External Detachable Omni-Directional Antennas

Certifications

FCC
IC



Model Comparison

ENS500EXT

ENH1750EXT

ENS1750

ENS202EXT

ENH710EXT

ENH220EXT

Model Number
Wi-Fi Standard 802.11ax 802.11ax 802.11ac 802.11n 802.11ax 802.11ax
Radio 5 GHz - - 2.4 GHz - -
Max. Data Rates(2.4 GHz) - 450 Mbps 450 Mbps 300 300 Mbps 300Mbps
Max. Data Rates(5 GHz) 300 Mbps 1,300 Mbps 1,300 Mbps - 300 Mbps -
Max. Data Rates(6 GHz) - - - - - -
Radio Chains 2 x 2:2 3 x 3:3 3 x 3:3 2 x 2:2 2 x 2:2 2 x 2:2
Transmit Power on(2.4 GHz) - - - Up to 26 dBm - -
Transmit Power on(5 GHz) Up to 23 dBm - - - - -
Transmit Power on(6 GHz) - - - - - -
Antenna 2 x 5 dBi SMA-Type Omni (Detachable) 3 x 5 dBi (2.4 GHz) Omni ; 3 x 7 dBi (5 GHz) Omni (Detachable) 5 dBi Omni (Internal) 2 x 5 dBi SMA-Type Omni (Detachable) 2 x 5 dBi (2.4 GHz) N-Type Omni (Detachable) ; 2 x 7 dBi (5 GHz) N-Type Omni (Detachable) 2 x 5 dBi (2.4 GHz) N-Type Omni (Detachable)
Power-over-Ethernet 24V Proprietary - - 24V Proprietary - -
Ethernet Ports 2 x 10/100/1000 Ethernet Ports - - 2 x 10/100 Ethernet Ports - -
Mounting Type Pole/Wall - - Wall/Pole - -
Dimensions 100 x 186 x 29 mm 285 x 217.93 x 53.34 mm 181 x 304 x 46 mm 100 x 186 x 29 mm 285 x 217.93 x 53.34 mm 285 x 217.93 x 53.34 mm
Mesh Technology - - - - - -
Cloud To-Go app - - - - - -
EnWiFi app Yes - - Yes - -
