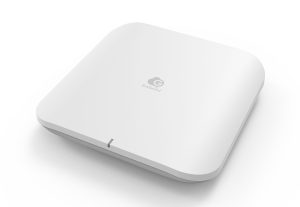

Cloud7 4x4x4 S
EnGenius Cloud Managed Wi-Fi 7 4x4x4 Access Point ECW536S supports tri-concurrent 802.11be Wi-Fi 7 architecture, delivering supercharged speeds up to11,600 Mbps on 6 GHz, 5,800 Mbps (5 GHz), and up to 1,400 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab
4 x 2.4 GHz: 5 dBi (Integrated Omni-Directional)
4 x 5 GHz: 6 dBi (Integrated Omni-Directional)
4 x 6 GHz: 5 dBi (Integrated Omni-Directional)
Yes
Yes

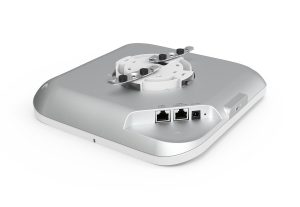

1 x 10GE Port (PoE++)
1 x 10GE Port
1 x DC Jack
1 x Reset Button
1 x Multi-color LED
Power-over-Ethernet: 802.3bt Input
12VDC / 3A Power Adapter
37W
Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz
Managed mode: AP, AP Mesh, Mesh
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5925 ~ 7125 MHz
Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
4 × 4:4
Four (4) spatial stream SU-MIMO up to 1,400 Mbps @ VHT40 (2.4 GHz)
Four (4) spatial stream SU-MIMO up to 5,800 Mbps @ HE160 (5 GHz)
Four (4) spatial stream SU-MIMO up to 11,600 Mbps @ EHT320 (6 GHz)
Four (4) spatial stream MU-MIMO up to 1,400 Mbps @ VHT40 (2.4 GHz)
Four (4) spatial stream MU-MIMO up to 5,800 Mbps @ HE160 (5 GHz)
Four (4) spatial stream MU-MIMO up to 11,600 Mbps @ EHT320 (6 GHz)
802.11be:
2.4 GHz: Max 1,400 (MCS0–MCS13, NSS=1–4)
5 GHz: Max 5,800 (MCS0–MCS13, NSS=1–4)
6 GHz: Max 11,600 (MCS0–MCS13, NSS=1–4)
802.11ax:
2.4 GHz: 9–1,148 (MCS0–MCS11, NSS=1–4)
5 GHz: 18–4,800 (MCS0–MCS11, NSS=1–4)
6 GHz: 18–4,800 (MCS0–MCS11, NSS=1–4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5–600 (MCS0–MCS31)
802.11ac: 6.5–1,733 (MCS0–MCS9, NSS=1–4)
802.11be/ax: OFDMA
802.11a/g/n/ac: OFDM
802.11b: DSSS
802.11be: EHT 20/40/80/160/320 MHz
802.11ax: HE 20/40/80/160 MHz
802.11ac: VHT 20/40/80 MHz
802.11n: HT 20/40 MHz
802.11n (2.4 GHz): HT40 MHz (256-QAM)
802.11n/ac/ax: Packet aggregation (A-MPDU, A-SPDU)
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
FCC / CE / IC
Yes
Yes
Yes
512
Yes
Yes
8 SSIDs on both 2.4GHz, 5GHz and 6GHz bands
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Supports 802.1d Spanning Tree Protocol
Compliance With IEEE 802.11e Standard
WMM
v1, v2c, v3
I/II, Private MIB
802.11r/k
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
IPv4, IPv6
Supports HTTP or HTTPS
Operating: 32ºF~104ºF (0 ºC~50 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Operating: 90% or less
Storage: 90% or less
1270g
Width: 230 mm
Length: 230 mm
Height: 39.5mm
1 – ECW536S Cloud Managed Indoor Access Point
1 – Ceiling Mount Base
1 – Ceiling and Wall Mount Screw Kit
1 – T-rail Mount kit
1 – Product Card
FCC
CE
IC
UKCA
Cloud7 4x4x4 S |
Cloud7 2x2x2 |
Cloud7 4x4x4 |
Cloud7 2x3x3 Lite |
|
|---|---|---|---|---|
| Model Number | ECW536S | ECW526 | ECW536 | ECW516L |
| Wi-Fi Standard | 11be | 11be | 11be | Wi-Fi 7 (11be) |
| Radio | 2.4 GHz & 5 GHz & 6 GHz | 2.4 GHz & 5 GHz & 6 GHz | 2.4 GHz & 5 GHz & 6 GHz | 2.4 GHz & 5 GHz & 6GHz |
| Max. Data Rates(2.4 GHz) | 1,400 Mbps | 700 Mbps | 1,400 Mbps | 700 Mbps |
| Max. Data Rates(5 GHz) | 5,800 Mbps | 2,900 Mbps | 5,800 Mbps | 4,300 Mbps |
| Max. Data Rates(6 GHz) | 11,600 Mbps | 5,800 Mbps | 11,600 Mbps | 8,700 Mbps |
| Radio Chains | 4 x 4:4 | 2x2:2 | 4 × 4:4 | 2 x 2:2(2.4GHz), 3x 3:3(5GHz & 6GHz) |
| Transmit Power on(2.4 GHz) | 25 dBm | 23 dBm | 25 dBm | 22 dBm |
| Transmit Power on(5 GHz) | 24 dBm | 22 dBm | 24 dBm | 22 dBm |
| Transmit Power on(6 GHz) | - | 24 dBm | 24 dBm | 22 dBm |
| Antenna | 2.4 GHz:4 x 5 dBi Omni;5 GHz:4 x 6 dBi Omni;6 GHz:4 x 5 dBi Omni; | 2 x 5 dBi Omni (2.4 GHz); 2 x 6 dBi Omni(5 GHz); 2 x 6 dBi Omni(6 GHz); | 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz); | 2 x 5 dBi (2.4 GHz) ; 3 x 5 dBi (5 GHz) ; 3 x 5 dBi 6 GHz) |
| Power-over-Ethernet | 802.3bt | 802.3at | 802.3bt | 802.3at |
| Scanning Radio | Yes | - | - | - |
| BLE | Yes | - | - | - |
| Power Consumption (Peak) | 37 W | - | - | - |
| Ethernet Ports | 1x 10GE PoE++port;1x 10GE port | 1x 10GE PoE+port | 1x 10GE PoE++port / 1x 10GE port | 1x 2.5GE PoE+ port |
| Mounting Type | Wall/ Ceilling | Wall/ Ceilling | Wall/ Ceiling | Wall/ Ceilling |
| Dimensions | 230 x 230 x 39.5mm | 190 x 190 x 39.5 mm | 230 x 230 x 39.5mm | 205 x 205 x 33 mm |
| Mesh Technology | Yes | Yes | Yes | Yes |
| Cloud To-Go app | Yes | Yes | Yes | Yes |
| EnWiFi app | - | - | - | - |
|
