Fit6 2×2 Lite

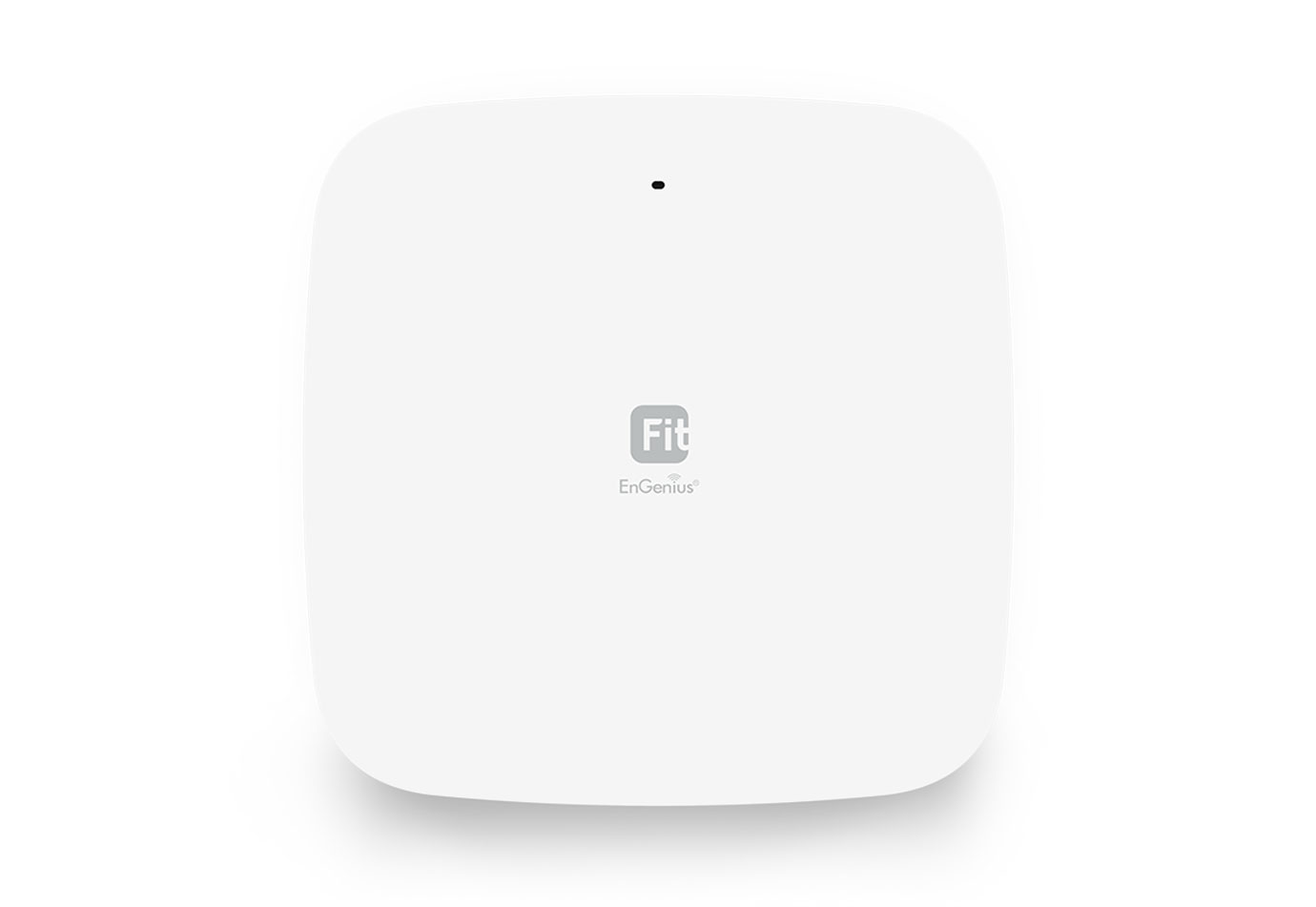

EnGenius Fit 802.11ax 2×2 Managed Dual Band Wireless Indoor Access Point

EWS356-FIT

Product Highlight

EnGenius Fit6 2x2 Lite Managed Indoor Wireless Access Point offers advanced 802.11ax technology, granting users incredibly speedy and efficient performance with a maximum theoretical speed of 574 Mbps on the 2.4GHz frequency and an incredible 2,400Mbps on 5GHz frequency! Furthermore it's safeguarded by top-tier WPA3/WPA2PSK AES encryption protocols for unparalleled security. security.
  • Architecture double concurrente 802.11ax et compatible avec les dispositifs clients 11ac/a/b/g/n
  • Support d'authentification WPA3 WPA2-AES
  • Antenne intégrée 2x2 de 5 dBi
  • Supporte jusqu'à 2 400 Mbps dans la bande de fréquence 5 GHz & 574 Mbps dans la bande de fréquence 2.4 GHz
  • Supporte les canaux DFS en 5 GHz
  • Gestion locale et à distance via le contrôleur Fitcon sans frais
  • Port PoE 802.3af de 1 GB pour un placement facile jusqu'à 328 pieds d'une source d'énergie.
  • Choix des modes AP et WDS pour répondre à vos exigences de gestion et de déploiement.

Product Intro Video

Technical Specifications

Standards

802.11a/b/g/n/ac/ax

Antenna

2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi

Physical Interface

1 x 10/100/1000 BASE-T
DC12V
Reset/Reboot button

LED Indicators

1 x Multi-color LED

Power Source

PoE 802.3af
DC12V

Maximum Power Consumption

10.7W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 21 dBm on 2.4 GHz Up to 21 dBm on 5 GHz (Maximum power is limited by regulatory domain)

Radio Chains

2 × 2:2

SU-MIMO Capability

Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio. Two (2) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE160 to a 2×2 wireless device under the 5GHz radio.

MU-MIMO Capability

Two (2) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):

802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM) 802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high-efficiency throughput (HE) —HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK

Max Concurrent User

128 per radio

Management Features

Deployment Options

Stand-Alone (Individually Managed) FitXpress FitController

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC) Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less Storage: 90% or less

Dimensions & Weight

EWS356-FIT Device

Weight: 380g Length: 160 mm Width: 160 mm Height: 30 mm

Package Contents

1 – EWS356-FIT Indoor Access Point 1 – Ceiling Mount Base (9/16” Trail) 1 – Ceiling Mount Base (15/16” Trail) 1 – Ceiling and Wall Mount Screw Kit 1 – Product Card

Compliance

FCC CE IC UKCA

Model Comparison

Fit6 2x2 Lite

Fit6 2x2

Fit6 4x4

Model Number EWS356-FIT EWS357-FIT EWS377-FIT
Wi-Fi Standard 802.11a/b/g/n/ac/ax 802.11a/b/g/n/ac/ax 802.11a/b/g/n/ac/ax
Radio 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz
Max. Data Rates(2.4 GHz) 574 Mbps 574 Mbps 1,148 Mbps
Max. Data Rates(5 GHz) 2,400 Mbps 1,200 Mbps 2,400 Mbps
Radio Chains 2 x 2:2 2 x 2:2 4 x 4:4
Transmit Power on(2.4 GHz) 21 dBm 22 dBm 23 dBm
Transmit Power on(5 GHz) 21 dBm 22 dBm 23 dBm
Antenna 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) 4 x 5 dBi (2.4 GHz); 4 x6 dBi (5 GHz)
Power-over-Ethernet 802.3af 802.3af/at 802.3at
Ethernet Ports 1x GE Port 1x GE Port 1x 2.5GE Port
Mounting Type Ceiling / Wall Wall/ Ceilling Wall/ Ceilling
Dimensions 160 x 160 x 30 mm 160 x 160 x 27 mm 205 x 205 x 33 mm
Operating Modes AP/Mesh AP/Mesh AP/Mesh
Mesh Technology Yes Yes Yes
MU-MIMO Yes Yes Yes
Beamforming Yes Yes Yes
On-premise management (FitController) Yes Yes Yes
Mobile app (FitExpress App) Yes Yes Yes
BUY
BUY
BUY
View
View
View
