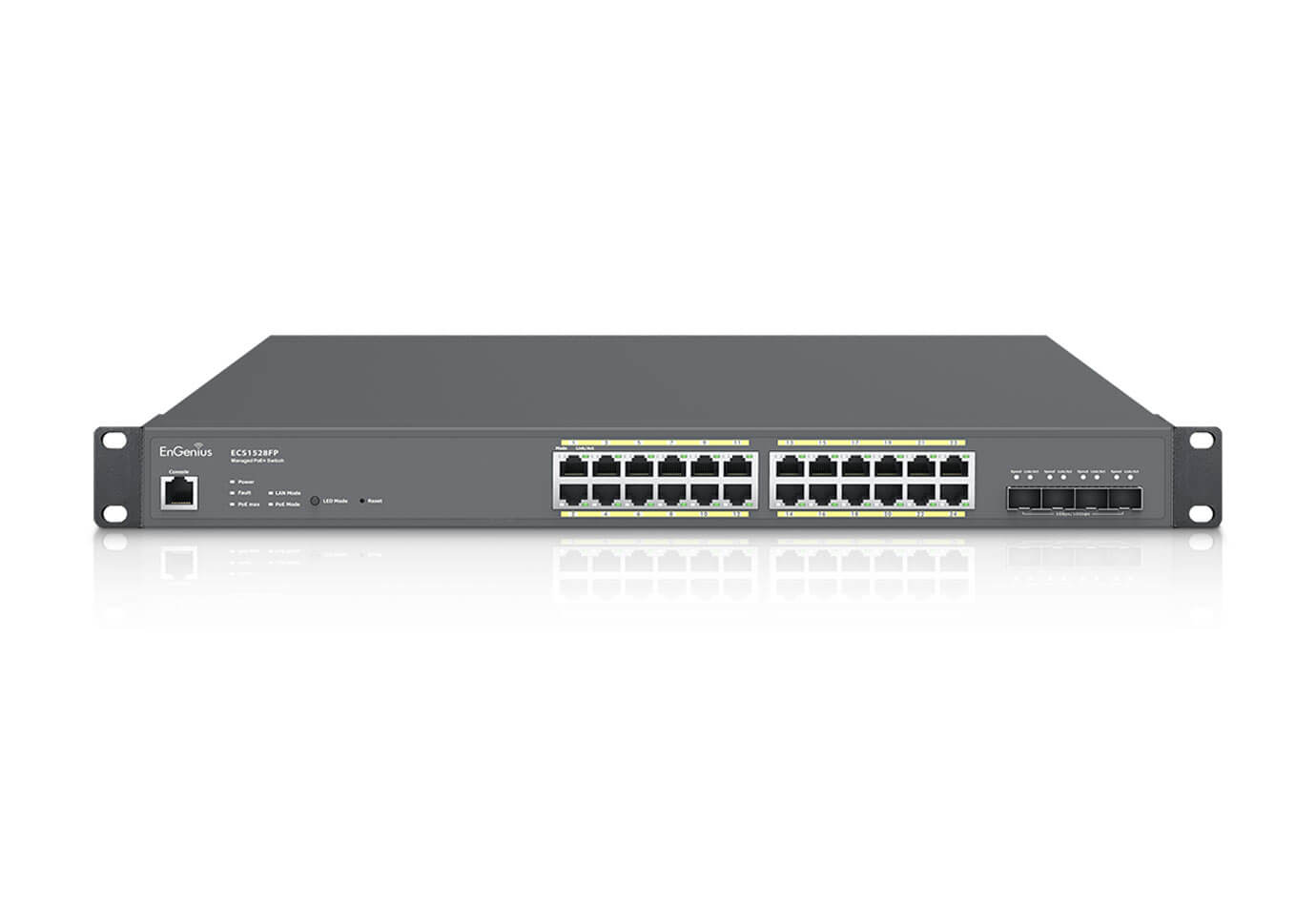

CloudSwitch L2Plus 24 Full PoE

Cloud Managed 24-Port Gigabit 410W PoE+ Switch

ECS1528FP

Product Highlight

EnGenius Cloud Managed Layer 2+ Switch ECS1528FP offers 24 Gigabit PoE+ ports, 4 10G SFP+ uplink ports, and a 410W budget, ideal for SMBs. It supports zero-touch provisioning and centralized cloud management. With advanced security features, Voice-VLAN, and PoE Extended Mode, it optimizes network efficiency for quality voice and video traffic, enabling peak performance for SMBs
  • 24 x gigabit PoE+ ports for high-speed connections
  • 4 x 10Gbps SFP+ uplink ports for bandwidth-intensive applications
  • 24 x 802.3 at/af PoE+ ports with 410W PoE budget
  • Zero touch provisioning, centralized cloud management and visualized monitoring
  • Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
  • Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
  • Optimized for quality voice and video traffic with Voice-VLAN feature
  • PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
  • PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
  • Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades

Technical Specifications

Port Standards

802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control

Network Ports

(24) 10/100/1000 Mbps Ports + 4x SFP+ Ports

Switching Capacity

128Gbps

SDRAM

512MB

Flash Memory

128MB

PoE Capable Ports

1-24

Total PoE Budget

410w

Power Source

100 ~ 240VAC, 50-60Hz

Physical Interface

System Indicators

Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud Local Web GUI

MAC Address Table

16K

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported/

Queue 8

QoS Trust Mode

Cos/802.1p DSCP CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL IPv4/IPv6 Based ACL ACL Binding

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS1528FP Device

Weight: 4.7 Kg
Width: 260 mm
Length: 440 mm
Height: 44 mm

Package Contents

1x ECS Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

CloudSwitch L2Plus 24 Full PoE

CloudSwitch L2Plus 8 PoE

CloudSwitch L2Plus 8 Full PoE

CloudSwitch L2Plus 48 Full PoE

Model Number ECS1528FP ECS1008P ECS1112FP ECS1552FP
Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ports 24 8 10 48
Multi-G Ports - - - -
SFP Ports - - 2 -
SFP+ Ports 4 - - 4
RJ45 Console Ports Yes - Yes Yes
PoE Capable Ports Ports 1 - 24 Ports 1 - 8 Ports 1 - 8 Ports 1 - 48
Power-over-Ethernet 802.3af/at 802.3af 802.3af/at 802.3af/at
Total PoE Budget 410W 55W 130W 740W
Form Factor 19”1U 9.45 (Desktop) 13”1U 19”1U
Switching Capacity 128 Gbps 16 Gbps 24 Gbps 176 Gbps
Packet Forwarding Rate - - - -
MAC Address Table Size 16K 8K 8K 32K
Packet Buffer Memory - 512KB - -
Full load Power consumption - 62.05 Watts - -
PoE Extended Mode - Yes - -
PD Lifeguard - Yes - -
Continuous PoE Power - - - -
Dimensions 440 x 260 x 44 mm 240 x 105 x 27 mm 330 x 230 x 44 mm 440 x 310 x 44 mm
Cloud Managed Mode EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud
On-premises Managed - Yes - -
Standalone Mode Yes Yes Yes Yes
