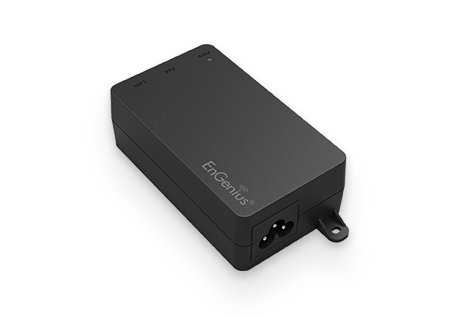

The EPA5012GP Passive PoE Adapter supports high-speed data and up to 60 Watts/54V of power to compliant devices such as APs, IP cameras or VoIP phones to 100 meters away over a single cable. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.
| File Name | Type |
|---|---|
 EPA Series Datasheet
|
Data Sheet |
|
EnGenius PoE Adapter Datasheet
|
Data Sheet |
If you are unable to find the file, please get it in the download center.
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
FCC Part 15 Class B
IEC 60950-1:2005+A1
UL60950-1 2nd
CE
ENS55032:2012/AC:2013
EN55024:2010
RCM
AS/NZS60950.1: 2011/Amdt 1: 2012
(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC 320C6 AC Connector
1 x Power on Green
Wall (anchors & screws included)
Input Voltage
100 to 240VAC
1.6A Max for 120VAC
50-60Hz
60W
Pin4(Vdc+)&Pin5(Vdc+)
Pin7(Vdc-)&Pin8(Vdc-)
10/100/1000 Mbit/s
Pin1(Rx+)&Pin2(Rx-)
Pin3(Tx+)&Pin6(Tx-)
Short-Circuit
Surge (over current/over voltage)
L-L: 2KV
L-G: 4KV
Contact: 4KV
Air: 8KV
