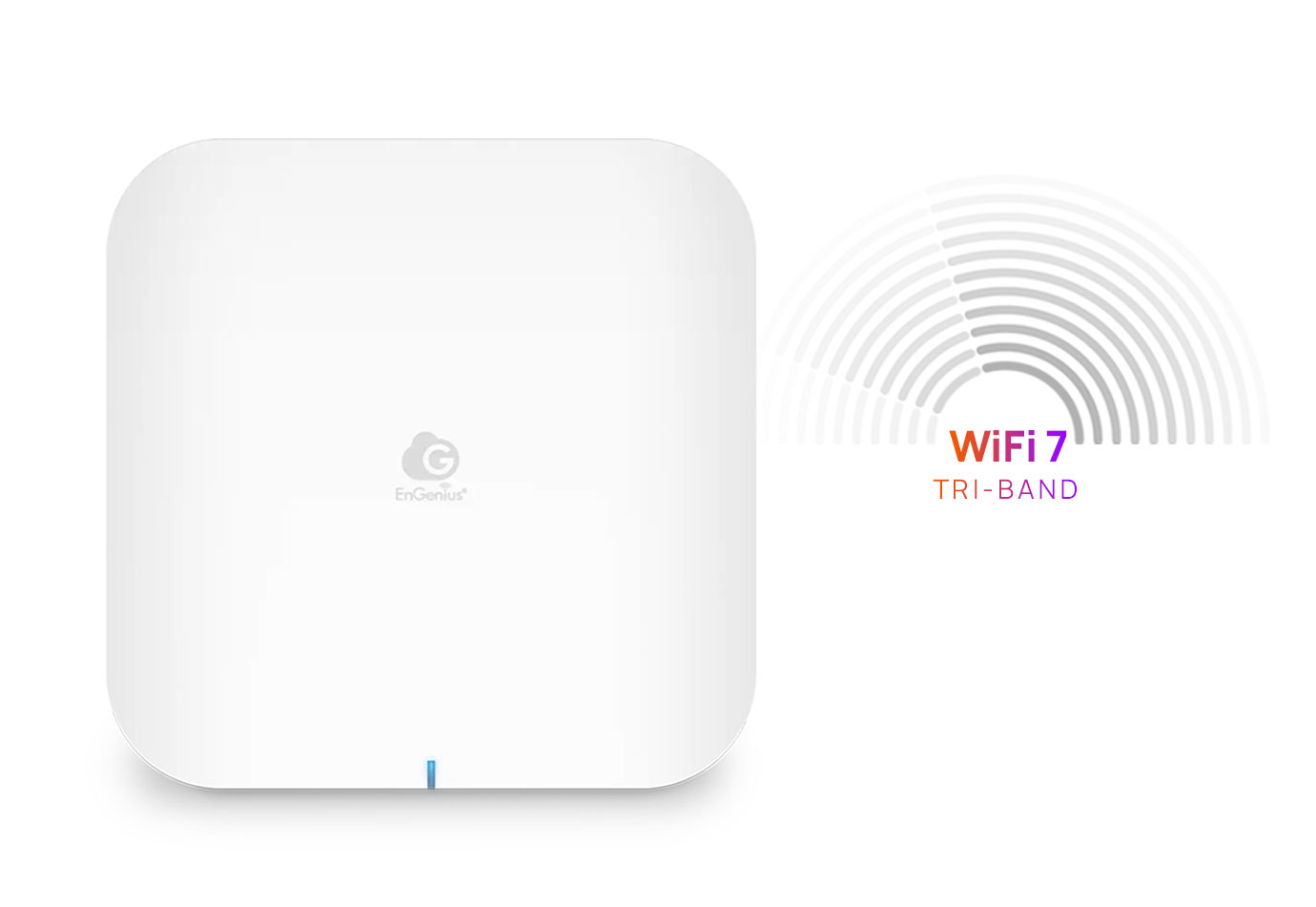

Cloud7 4x4x4
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
4 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
4 x 5 GHz: 6 dBi(Integrated Omni-Directional)
4 x 6 GHz: 5 dBi(Integrated Omni-Directional)
1 x 10GE Port (PoE++)
1 x 10GE Port
1 x DC Jack
1 x Reset Button
1 x Multi-color LED
Power-over-Ethernet: 802.3bt Input
12VDC /3A Power Adapter
38W
Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz
Managed mode: AP, AP Mesh, Mesh
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6GHz: 5925-7125MHz
Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
4 × 4:4
Four(4) spatial stream Single User (SU) MIMO for up to 1,400 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio.
Four(4) spatial stream Single User (SU) MIMO for up to 58,00 Mbps wireless data rate with HE160 bandwidth to a 4×4 wireless device under the 5GHz radio.
Four(4) spatial stream Single User (SU) MIMO for up to 11,600 Mbps wireless data rate with EHT320 bandwidth to a 4×4 wireless device under the 6GHz radio.
Four(4) spatial stream MU-MIMO for up to 1,400 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio simultaneously.
Four(4) spatial stream MU-MIMO for up to 5,800 Mbps wireless data rate with HE160 bandwidth to a 4×4 wireless device under the 5GHz radio simultaneously.
Four(4) spatial stream MU-MIMO for up to 11,600 Mbps wireless data rate with EHT320 bandwidth to a 4×4 wireless device under the 6GHz radio simultaneously.
802.11be:
2.4 GHz: Max 1,400 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: Max 5,800 (MCS0 to MCS13 NSS = 1 to 4)
6 GHZ: Max 11,600 (MCS0 to MCS13, NSS = 1 to 4)
802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 4,800 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: 18 to 4,800 (MCS0 to MCS11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)
802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
512
8 SSIDs on both 2.4GHz, 5GHz and 6GHz bands
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Supports 802.1d Spanning Tree Protocol
Complaint With IEEE 802.11e Standard
WMM
v1, v2c, v3
I/II, Private MIB
802.11r/k
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Operating: 32ºF~122ºF (0 ºC~50 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Operating: 90% or less
Storage: 90% or less
Weight: 1270g
Width: 230 mm
Length: 230 mm
Height: 39.5 mm
1 – ECW536 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base
1 – Ceiling and Wall Mount Screw Kit
1 – T-rail Mount kit
1 – Product Card
FCC
CE
IC
UKCA
VCCI
AU
Cloud7 4x4x4 |
Cloud7 2x2x2 |
|||
|---|---|---|---|---|
| Model Number | ECW536 | ECW526 | ||
| Wi-Fi Standard | 11be | 11be | ||
| Radio | 2.4 GHz & 5 GHz & 6 GHz | 2.4 GHz & 5 GHz & 6 GHz | ||
| Max. Data Rates(2.4 GHz) | 1,400 Mbps | 720 Mbps | ||
| Max. Data Rates(5 GHz) | 5,800 Mbps | 2,900 Mbps | ||
| Max. Data Rates(6 GHz) | 11,600 Mbps | 5,800 Mbps | ||
| Radio Chains | 4 × 4:4 | 2x2:2 | ||
| Transmit Power on(2.4 GHz) | 25 dBm | 23 dBm | ||
| Transmit Power on(5 GHz) | 24 dBm | 22 dBm | ||
| Transmit Power on(6 GHz) | 24 dBm | 22 dBm | ||
| Antenna | 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz); | 2 x 5 dBi Omni (2.4 GHz); 2 x 6 dBi Omni(5 GHz); 2 x 6 dBi Omni(6 GHz); | ||
| Power-over-Ethernet | 802.3bt | 802.3at | ||
| Scanning Radio | - | - | ||
| BLE | - | - | ||
| Power Consumption (Peak) | - | - | ||
| Ethernet Ports | 1x 10GE PoE++port / 1x 10GE port | 1x 10GE PoE+port | ||
| Mounting Type | Wall/ Ceiling | Wall/ Ceilling | ||
| Dimensions | 230 x 230 x 39.5mm | 190 x 190 x 39.5 mm | ||
| Mesh Technology | Yes | Yes | ||
| Cloud To-Go app | Yes | Yes | ||
| EnWiFi app | - | - | ||
|
