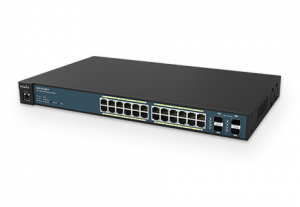

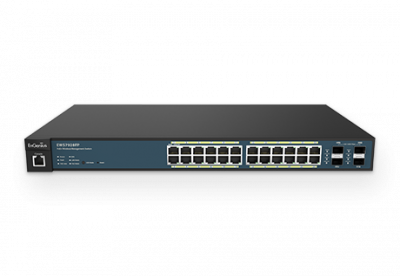

The EWS7928P管理型185W 24-port PoE交換器讓具網路配置更簡單，具備監控和管理選項以及易於使用的網頁介面。 可透過EnGenius Cloud或ezMaster集中管理有線和無線網路，支援由網路線供電(PoE)的設備，如網路攝影機、網路語音電話和無線基地台。
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
24 10/100/1000 Mbps Ports
4 10/100/1000 Mbps SFP Ports
1 RJ45 Console Port
Switching Capacity: 56 Gbps
Forwarding Mode: Store-and-Forward
SDRAM: 256 MB
Flash Memory: 32 MB
Packet Buffer Memory: 512 KB
Address Database Size: 8,000 MAC Addresses
PoE Standard: Ports 1~24 Support IEEE 802.3af/at
PoE Capable Ports: All Gigabit Ethernet Ports/Up to 30 W
240W
100 ~ 240VAC, 50-60Hz
4A
Reset Button
Desktop/Wall Mount
Device:
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
– Maximum of 8 Groups/8 Ports per Group
– One-to-One
– Many-to-One
– 802.1D Spanning Tree Protocol (STP)
– 802.1w Rapid Spanning Tree Protocol (RSTP)
– 802.1s Multiple Spanning Tree Protocol (MSTP)
– 8K Entries
– 256 Entries
– IGMP v1/v2/v3 Snooping
– Supports 4094 IGMP Groups
– IGMP per VLAN
– IGMP Snooping Query
– IGMP Snooping Fast Leave
– MDL Snooping v1/v2
– Supports 4,094 MLD Groups
– IGMP per VLAN
– Up to 9,216 bytes
802.1Q Support
– Max 4,094 Static VLAN Groups
802.1p Quality of Service
– 8 Queues per Port
– Strict
– Weighted Round Robin (WRR)
– 802.1p Priority
– DSCP
– Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)
Layer 2/3
– Supports Maximum 50 Entries (ACL)
– Supports Maximum 256 Entries (ACE)
– MAC Address
– VLAN ID
– 802.1p Priority
– Ethertype
– IP Address
– Protocol Type
– DSCP
802.1X
– Guest VLAN
– Port-Based Access Control
– Up to 256 MAC Addresses per Port
Port Statistics
System Log
RMON
Web Graphical User Interface (GUI)
Command Line Interface (CLI)
BootP/DHCP Client/DHCPv6 Client
SSH Server
Telnet Server
TFTP Client
HTTPS
– Supports v1/v2c/v3
SNMP Trap
SNTP
Configuration Restore/Backup
Dual Images
Cable Diagnostic
Ping Test
Trace Route
RFC1213
RFC1493
RFC1757
RFC2674
RFC 2863
Access Point Auto Discovery & Provisioning
Access Point Auto IP-Assignment
Access Point Group Management
Remote Access Point Rebooting
Access Point Device Name Editing
Access Point Radio Settings
Band Steering
Traffic Shaping
RSSI Threshold
Fast Roaming
Access Point Client Limiting
Client Fingerprinting
Wireless Security (WPA/WPA2 Enterprise, WPA/WPA2 PSK)
AP VLAN Management
VLANs for Access Point- Multiple SSIDs
Secured Guest Network
Capture Portal
Access Point Status Monitoring
Rogue AP Detection
Email Alert
Wireless Client Monitoring
Background Scanning
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Wireless Coverage Display
Map View
Secure Control Messaging
SSL Certificate
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import / Export
Intelligent Diagnostics
Bulk Firmware Upgrade Capability
One-Click Update
Kick/Ban Clients
Operating: 32 to 122° F/0 to 50° C
Storage: -4 to 158° F/-20 to 70 ° C
5% – 95%
(1) EWS7928P Switch
(1) Power Cord
(1) RJ45 Console Cable
(1) Rack Mount Kit
(1) Quick Installation Guide
Weight: 7.9 Ibs (3.6 kg)
Width: 17.32” (440 mm)
Length: 10.23” (260 mm)
Height: 1.73” (44 mm)
EWS7928P |
EWS2908P |
EWS5912FP |
EWS7926EFP |
EWS1200-28TFP |
EWS7952P |
EWS7952FP |
|
|---|---|---|---|---|---|---|---|
| Model Number | EWS7952P | ||||||
| 交換器等級 | Layer 2 | Layer 2 | Layer 2 | Layer 2 | Layer 2 | Layer 2 | Layer 2 |
| 千兆(Gigabit)連接埠 | 24 | 8 | 10 | 24 | 24 | 48 | 48 |
| 多兆(Multi-G)連接埠 | - | - | - | - | - | - | - |
| SFP光纖連接埠 | 4 | - | 2 | - | 4 | - | 4 |
| SFP+光纖連接埠 | - | - | - | 2 x 1G | - | 4 | - |
| RJ45網管介面連接埠 | Yes | - | Yes | Yes | Yes | Yes | Yes |
| PoE供電連接埠 | Ports 1-24 | Ports 1 - 8 | Ports 1 - 8 | Ports 1-24 | Ports 1-24 | Ports 1 - 48 | Ports 1 - 48 |
| PoE供電標準 | 802.3af/at | 802.3af | 802.3af/at | 802.3af/at | 802.3af/at | 802.3af/at | 802.3af/at |
| PoE總功率預算 | 240W | 55W | 130W | 410W | 410W | 410W | 740W |
| 安裝形式 | 19“ 1U | 9.45" (Desktop) | 13”1U | 19“ 1U | 19"1U | 19“ 1U | 19"1U |
| 交換能力 | 56 Gbps | 16 Gbps | 24 Gbps | 88 Gbps | 56 Gbps | 104Gbps | 104 Gbps |
| Packet Forwarding Rate | - | - | - | - | - | - | - |
| MAC地址大小 | 8k | 8K | 8K | 8k | 8k | 16k | 16k |
| Packet Buffer Memory | - | - | - | - | - | - | - |
| Full load Power consumption | - | - | - | - | - | - | - |
| PD Lifeguard | - | - | - | - | - | - | - |
| Continuous PoE Power | - | - | - | - | - | - | - |
| 尺寸 | 440 x 260 x 44 mm | 240 x 105 x 27 mm | 330 x 230 x 44 mm | 440 x 260 x 44 mm | 440 x 260 x 44 mm | 440 x 310 x 44 mm | 440 x 310 x 44 mm |
| 雲端管理模式 | - | - | - | - | - | - | - |
| 本地管理模式 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 單機運作模式 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
|
