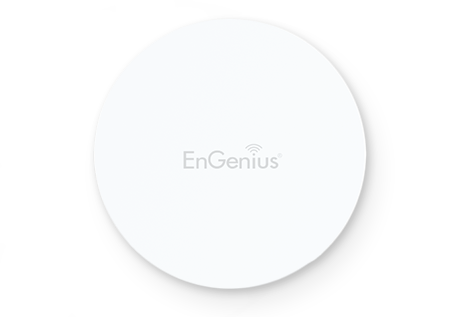

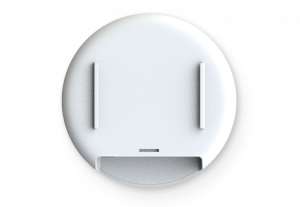

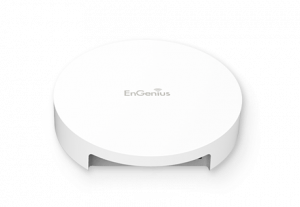

EWS330AP

Neutron EWS 11ac Wave 2 網管型室內無線基地台

Product Highlight

 EWS330AP 無線基地台是外型輕巧但功能強大的室內基地台,提供更好的覆蓋範圍,更快的連接性和更高的連線裝置容量。 EWS330AP強大的四核處理器在5 GHz時達到867 Mbps,在2.4 GHz頻段達到400 Mbps,與傳統基地台相比,傳輸量提高了30%,提高了無線性能和效率。

  • 11ac Wave 2 無線速度最高達到  867 Mbps (5 GHz); 400 Mbps (2.4 GHz)
  • 802.3af PoE 網路線口讓你在沒有電源插座的地方也能輕鬆佈建網路
  • 傳輸量與11ac Wave 1 3x3基地台相比,最高提升30%
  • MU-MIMO 多人多工模式改善了效能和連線裝置的容許量

Technical Specifications

Standards

IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz

Processor

Qualcomm® 717 MHz Quad-Core CPU
4x ARM Cortex A7

Antenna

2 x 2.4 GHz: 5 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

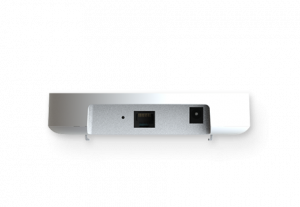

Physical Interface

1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port
1x DC Jack
1 x Reset Button

LED Indicators

1 x Power / 2.4 GHz/5GHz

Power Source

Power-over-Ethernet: 802.3af Input
IEEE 802.11e Compliant Source
12VDC /1A Power Adapter (not included)

Maximum Power Consumption

9W

Surge Protection

0.5KV

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Access Point Mode
Mesh Mode

Frequency Radio

2.4 GHz: 2400 MHz ~ 2472 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 26 dBm on 2.4 GHz
Up to 26 dBm on 5 GHz

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream

2 x 2:2

SU-MIMO

2.4 GHz – Two (2) Spatial Stream SU-MIMO up to 400 Mbps to individual 2×2 VHT40 client devices (300 Mbps for HT40 802.11n client devices)
5 GHz – Two (2) Spatial Stream SU-MIMO up to 867 Mbps to individual 2×2 VHT40 client devices

MU-MIMO

Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) MU-MIMO capable wireless devices simultaneously

Supported Data Rates (Mbps):

2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2×2 MIMO with 2 Streams

Channelization

802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: AMPDU, ASPDU
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz

Supported Modulation

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Management Features

Multiple BSSID

Supports 16 SSIDs (8 SSIDs per Band)

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliant with IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Deployment Options

Stand-Alone (Individually Managed)
Managed Mode (with Neutron Series Switch/ezMaster)

Stand-Alone Management Features

Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Band Steering
Traffic Shaping
VLANs for Access Point – Multiple SSIDs
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Default

Wireless Management Features (With ezMaster & Neutron Switch)

AP Auto Discovery & Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP – Multiple SSIDs
Secured Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler

Control Features

Managed Mode (w/Neutron Switch/ezMaster)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting (802.1x)
Power Save Mode (U-APSD Support)
CLI Support
HTTPS

Wireless Security

WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP Using TKIP or AES)
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation



Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -22 ºF~176 ºF (-30 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

EWS330AP 3-Pack

Weight: 2.53 lbs.
Width: 5.98″ (152 mm)
Length: 9.76″ (248 mm)
Height: 4.6″ (117 mm)

Package Contents

3 – EWS330AP Dual-Band AC1300 Indoor Access Points
3 – T-Rail Mounting Kits
3 – Ceiling and Wall Mount Screw Kits
3 – Mounting Brackets
3 – RJ-45 Ethernet Cables
1 – Quick Installation Guide

Certifications

FCC
CE
