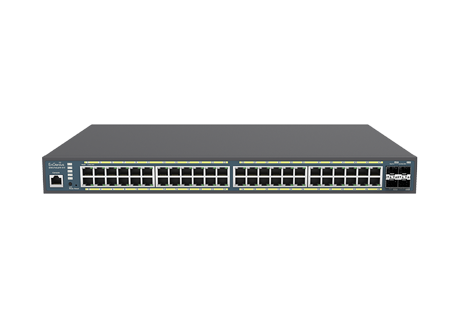

FitSwitch 48 Full PoE

Switch de Red Gestionado, 48 Puertos 740W PoE+ con 4 puertos SFP

EWS7952FP-FIT
Try FitXpress Demo

Product Highlight

EnGenius FITSwitch EWS7952FP-FIT, a 48-Port Gigabit PoE+ Layer 2+ Switch with a 740W Budget, 4 SFP Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

  • 48 x gigabit PoE+ ports for high-speed connections
  • 4 x SFP uplink ports for bandwidth-intensive applications
  • 48 x 802.3 at/af PoE+ ports with 740W PoE budget
  • Zero touch provisioning centralized cloud management, and visualized monitoring
  • Hybrid cloud switch supports flexible management options such as EnGenius FitXpress, FitController on-premises or standalone
  • Robust security that supports Port-based / MAC-based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication, and more
  • Optimized for quality voice and video traffic with Voice-VLAN feature

Technical Specifications

Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Port – Gigabit Ethernet Ports

48x GE Ports

Network Port – SFP Ports

4x SFP

Switching Capacity

104Gbps

SDRAM

256MB

Flash Memory

32MB

PoE Capable Ports

Ports 1-48

Total PoE Budget

740W

Power Source

100 to 240 VAC, 50/60Hz

Physical Interface

System Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius FITCloud
FITCON
Local Web GUI

MAC Address Table

16K

Jumbo frame size

9K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate

Certificate/Key Import

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1d Spanning tree
Loopback Detection
Multicast Filitering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Wireless Management Features

Deployment Options

Stand-Alone (Individually Managed)
FitXpress
FitController

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to50°C)

Humidity (Non-Condensing)

Operating: 5% – 95%

Dimensions & Weight

Device Dimensions & Weights

Weight: 10.5 lbs. (4.76 kg)
Width: 17.32” (440 mm)
Length: 12.20” (310 mm)
Height: 1.73” (44 mm)

Package Contents

1x FIT Managed Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

FitSwitch 48 Full PoE

FitSwitch 24 Full PoE

FitSwitch 8 PoE

FitSwitch 24 PoE

FitSwitch 48 PoE

Model Number EWS7952FP-FIT EWS7928FP-FIT EWS2910P-FIT EWS7928P-FIT EWS7952P-FIT
Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ports 48 24 8 24 48
Multi-G Ports - - - - -
SFP Ports 4 4 2 4 4
SFP+ Ports - - - - -
RJ45 Console Port 1 1 - 1 1
PoE Capable Port Ports 1 - 48 Ports 1-24 Ports 1- 8 Ports 1-24 Ports 1 - 48
Power-over-Ethernet 802.3af/at 802.3af/at 802.3af/at 802.3af/at 802.3af/at
Total PoE Budget 740W 410W 55W 240W 410W
Form Factor 19"1U 19" 1U Desktop 19"1U 19"1U
Switching Capacity 104 Gbps 56Gbps 20Gbps 56Gbps 104 Gbps
Packet Forwarding Rate - - - - -
MAC Address Table Size 16K 8K 8K 8K 16K
Continuous PoE Power - - - - -
Dimensions 440mm x 310mm x 44 mm 440mm x 260mm x 44 mm 240mm x 105mm x 27mm 440mm x 260mm x 44mm 440mm x 310mm x 44mm
Cloud Managed Mode FitXpress FitXpress FitXpress FitXpress FitXpress
On-premises Managed FitController FitController FitController FitController FitController
Standalone Mode Yes Yes Yes Yes Yes
