Cloud7 2×2

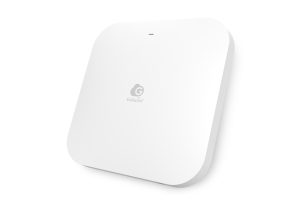

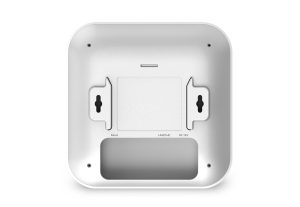

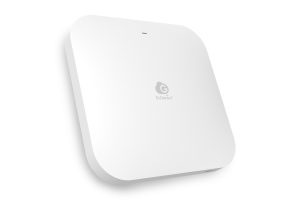

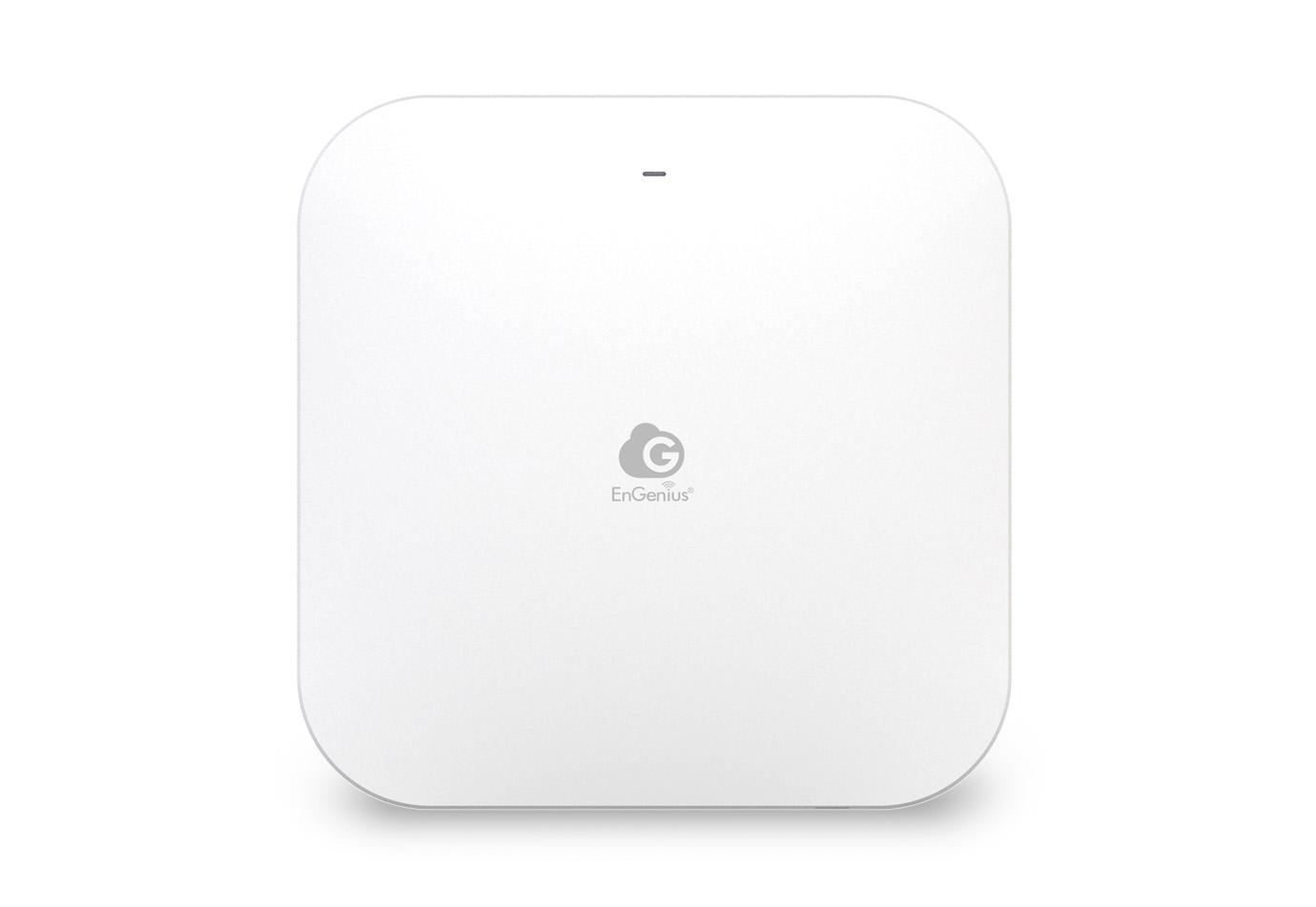

Cloud Managed Wi-Fi 7 2x2 Indoor Access Point

ECW510
Dual-Band
BE5000

Product Highlight

EnGenius Cloud Managed Wi-Fi 7 2x2 Access Point ECW510 supports dual concurrent 802.11be Wi-Fi 7 architecture, delivering supercharged speeds up to 4,300 Mbps (5 GHz), and up to 700 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

  • Dual concurrent 802.11be Wi-Fi 7 architecture & backward compatibility
  • Supercharged speeds up to 4,300 Mbps (5 GHz) & up to 700 Mbps (2.4 GHz)
  • 2.5 GbE realizes greater throughput and supports 802.3at and PoE injector input for flexible installation over 100 meters (328 feet)
  • WPA3 & WPA2-AES authentication support
  • Cloud Managed with AP & Mesh mode
  • Quick-scan device registration & configuration and remote monitoring & troubleshooting
  • Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
  • Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Technical Specifications

Standards

IEEE 802.11be on 2.4 GHz

IEEE 802.11be on 5 GHz

Backward compatible with 802.11a/b/g/n/ac/ax

IEEE 802.3 u/ab

Antenna

2 x 2.4 GHz: 3 dBi(Integrated Omni-Directional)

2 x 5 GHz: 5 dBi(Integrated Omni-Directional)

Physical Interfaces

1 x 2.5GE Port (PoE+)

1 x DC Jack

1 x Reset Button

LED Indicators​

1 x Multi-color LED

Power Source

Power-over-Ethernet: 802.3at Input

12VDC /1.5A Power Adapter

Maximum Power Consumption

18.7 W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz, 5850MHz ~ 5895MHz

Transmit Power

Up to 23 dBm on 2.4 GHz
Up to 21 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

2 × 2:2

SU-MIMO Capability

Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with EHT240* to a 2×2 wireless device under the 5GHz radio.

MU-MIMO Capability

Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with EHT240* to a 2×2 wireless device under the 5GHz radio simultaneously. *EHT 240 MHz bandwidth is available on the 5GHz band and may be supported in some regions/countries due to regulatory restrictions.

Supported Data Rates

802.11be:
2.4 GHz: Max 700 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: Max 4,300 (MCS0 to MCS13, NSS = 1 to 4)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/240/320MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent User

512

Client Balancing

Yes

Auto Channel Selection

Yes

Management Features

Multiple BSSID

8 SSIDs on both 2.4GHz and 5GHz bands

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliance With IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control

Interface

IPv4, IPv6

Local Web Access

Supports HTTP or HTTPS

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

Weight

660g

Dimensions

Width: 160 mm
Length: 160 mm
Height: 32mm

Package Contents

1 – ECW510 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card

Regulatory Compliance

FCC
CE
IC
UKCA
VCCI
AU

Model Comparison

Cloud7 2x2

Cloud7 2x2x2

Cloud7 4x4x4

Cloud7 2x3x3 Lite

Cloud7 2x2x2

Model Number ECW510 ECW526 ECW536 ECW516L ECW520
Wi-Fi Standard 11be 11be 11be Wi-Fi 7 (11be) 11be
Radio 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6GHz 2.4 GHz & 5 GHz & 6 GHz
Max. Data Rates(2.4 GHz) 700 Mbps 700 Mbps 1,400 Mbps 700 Mbps 700 Mbps
Max. Data Rates(5 GHz) 4,300 Mbps 2,900 Mbps 5,800 Mbps 4,300 Mbps 4,300 Mbps
Max. Data Rates(6 GHz) - 5,800 Mbps 11,600 Mbps 8,700 Mbps 5,800 Mbps
Radio Chains 2x2:2 2x2:2 4 × 4:4 2 x 2:2(2.4GHz), 3x 3:3(5GHz & 6GHz) 2x2:2
Transmit Power on(2.4 GHz) 23 dBm 23 dBm 25 dBm 22 dBm 23 dBm
Transmit Power on(5 GHz) 21 dBm 22 dBm 24 dBm 22 dBm 23 dBm
Transmit Power on(6 GHz) - - - 22 dBm -
Antenna 2.4 GHz:2.02 x 3 dBi Omni;5 GHz:2 x 5 dBi Omni; 2 x 5 dBi Omni (2.4 GHz); 2 x 6 dBi Omni(5 GHz); 2 x 6 dBi Omni(6 GHz); 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz); 2 x 5 dBi (2.4 GHz) ; 3 x 5 dBi (5 GHz) ; 3 x 5 dBi 6 GHz) 2.4 GHz:2 x 6 dBi Omni;5 GHz:2 x 6 dBi Omni;6 GHz:2 x 6 dBi Omni;
Power-over-Ethernet 802.3at 802.3at 802.3bt 802.3at 802.3at
Scanning Radio - - - - -
BLE - - - - -
Power Consumption (Peak) 15.5 W 21W 38W - 25.4 W
Ethernet Ports 1x 2.5GE PoE+port 1x 10GE PoE+port 1x 10GE PoE++port / 1x 10GE port 1x 2.5GE PoE+ port 1x 2.5GE PoE+port
Mounting Type Wall/ Ceilling Wall/ Ceilling Wall/ Ceiling Wall/ Ceilling Wall/ Ceilling
Dimensions 160 x 160 x 32 mm 190 x 190 x 39.5 mm 230 x 230 x 39.5mm 205 x 205 x 33 mm 158 x 158 x 35.8 mm
Mesh Technology Yes Yes Yes Yes Yes
Cloud To-Go app Yes Yes Yes Yes Yes
EnWiFi app - - - - -
