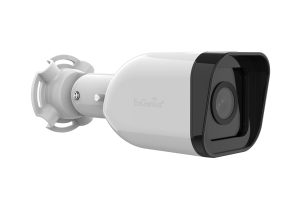

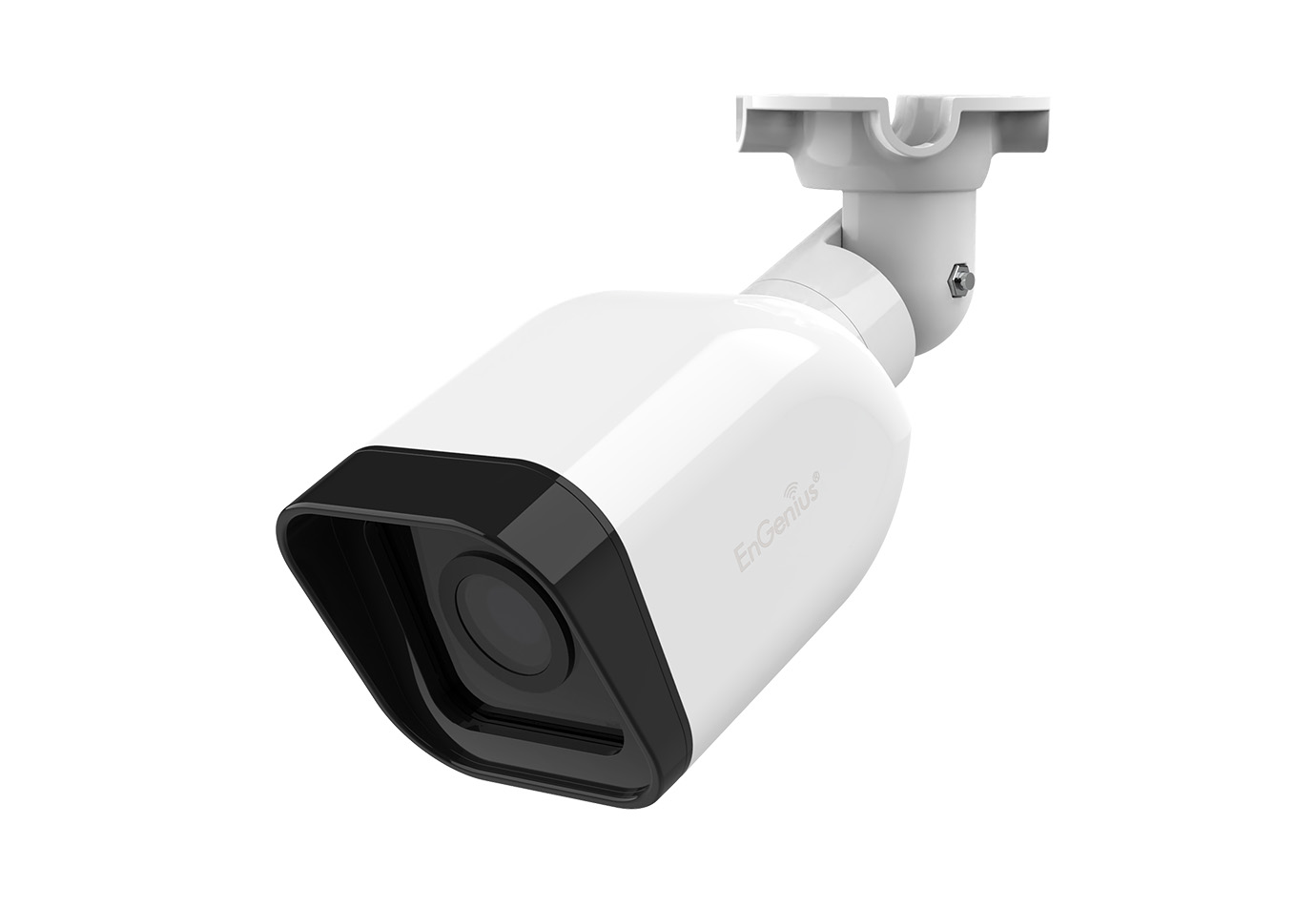

Cam5MP Bullet IP66
The EnGenius Cloud Camera Cam5MP Bullet IP66 (ECC120Z) is a cloud-managed outdoor surveillance solution for SMBs seeking scalable security. It enables seamless remote monitoring via the cloud dashboard and mobile app. This camera can backup video to EnGenius NVS for reliable HD video recording. Enhanced with a 5MP Sony Starvis sensor with HDR and a 30m IR range, it delivers crystal-clear imaging in low-light conditions. Built for durability, it is IP66-rated for harsh environments. Advanced AI technology detects unusual people and vehicles in real time, triggering instant alerts and enabling AI-powered searches to reduce footage review time from hours to minutes.
V1.3
1/2.8 “ Sony Starvis 5MP CMOS
Fixed 4mm
H: 78°, V: 56°, D: 103°
Built-in IR LED illumination and IR cut filter
30m / 98ft
Manual, Tilt: 0°~90°, Roll: 0°~180°
5MP 2592 x 1944 (4:3)
20 FPS
H.265, H.264
768Kbps ~ 2.5Mbps (Optional)
AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation
Not supported
Not supported
Built-in
History search, People counting
History search, Vehicle counting
Event alert
Event alert, Object counting
Event alert, Object counting
Support
24/7 seamless, Auto Recycling
Support EnGenius NVS and Cloud storage
System power and status indicator
Supported
External line
10/100 MbE RJ45 port
PoE 802.3af Class 3
7.5W
-20°C ~ 50°C / -4°F ~ 122°F
98％
CE, FCC
Polycarbonate
IP66
Ø76x 200 mm (Ø2.99 x 7.88″)
330g / 11.64oz
Chrome, Safari, Edge
Cloud To-Go on iOS and Android
Cam5MP Bullet IP66 |
Cam5MP Bullet IP66 256GB |
Cam5MP Dome IP67 |
Cam5MP Dome IP67 256GB |
Cam8MP Dome IP67 512GB |
Cam8MP Dome IP67 NS |
|
|---|---|---|---|---|---|---|
| Model Number | ECC120Z | ECC120 | ECC100Z | ECC100 | ECC500 | ECC500Z |
| Resolution | 5MP | 5MP | 5MP | 5MP | 4K | 4K |
| Field of View | H: 78° | H: 78° | H: 102° | H: 102° | H: 97° ~ 35.3° | H: 108.1° ~ 30.3° |
| Optical Zoom | - | - | - | - | 3x | 3x |
| IR Night Vision | 30m / 98ft | 30m / 98ft | >20m / 66ft | >20m / 66ft | 30m / 98ft | 30m / 98ft |
| Audio | - | - | Microphone | Microphone | Microphone | Microphone |
| Object Detection and Tracking | - | V | Yes | V | V | Yes |
| Object Attribute | - | - | - | - | V | Yes |
| Facial Recognition | - | - | - | - | V | Yes |
| License Plate Recognition | - | - | - | - | V | Yes |
| Storage | - | 256GB | - | 256GB | 512GB | - |
| Deployment | PoE | PoE | PoE | PoE | PoE | PoE+ |
| Weatherproofing | IP66 | IP66 | IP67 | IP67 | IP67 | IP67 |
| Resistance | - | - | IK10 | IK10 | IK10 | IK10 |
|
