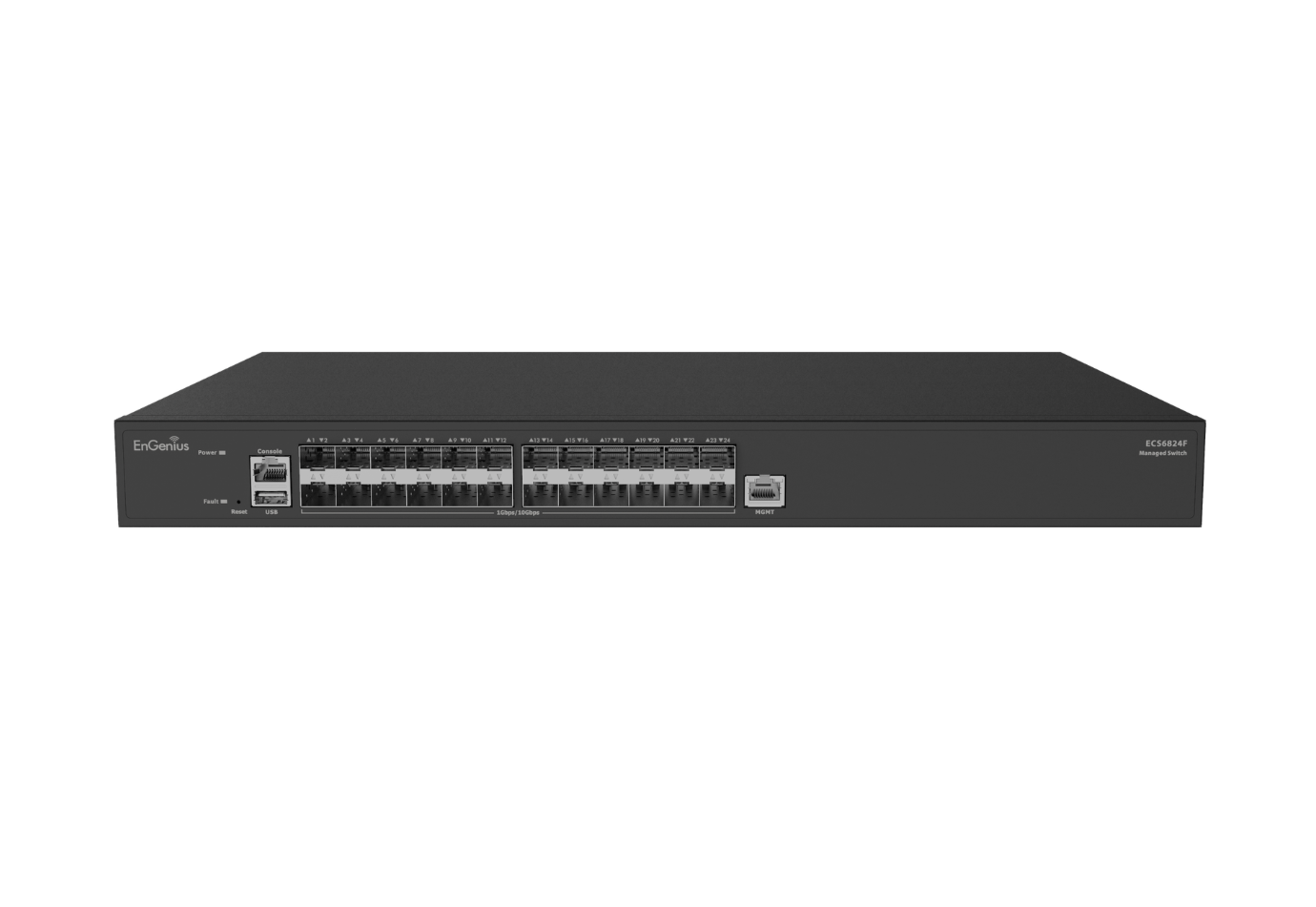

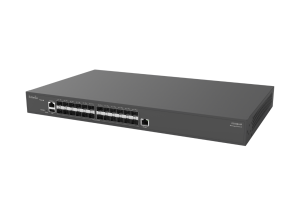

EnGenius CloudSwitch Core ECS6824F is a high-performance cloud-managed Layer 3 fiber switch for enterprise aggregation, backbone connectivity, and scalable business networks. It delivers high throughput, low latency, high availability, hybrid cloud management, full local control, and cloud-based visibility.
With 24 × 10G SFP+ fiber ports, the ECS6824F provides enterprise-class switching and routing capacity for high-density fiber environments. L3 routing with static routing, RIP, and OSPF, plus switching, QoS, ACL, and 802.1X authentication, simplifies operations and ensures reliable connectivity.
802.3z 1000Base-X
802.3ae 10GBase-X
–
24
–
RJ-45 Console x1
1
USB 2.0 x1
480Gbps
Up to 357.1 Mpps
DDR4 2GB
SPI NOR Flash: 8MB + NAND Flash: 256MB
AC in
Up to 10K bytes
Max. 16K
Support STP/RSTP/MSTP
Port Fast/ BPDU Guard/ Root Guard
Support Static / LACP
Max. 8 trunks/ Max. 8 ports per trunk
Max. 4K 802.1Q VLAN
GVRP, Voice VLAN, Surveillance VLAN
–
–
–
Yes/Yes
–
Yes
Based on Tx/Rx
–
Yes
IPv4: up to Max. 1000 entries (512 entries is for static route)
IPv6: up to Max. 1500 entries (256 entries is for static route)
128 for IPv4, 128 for IPv6
4K for IPv4, 8K for IPv6
Support ARP aging
–
Yes
–
–
–
–
Yes
L2/L3 Multicast Max. 255 entries, shared by MLD/IGMP
MLD v1/v2
MLD Snooping
L2/L3 Multicast Max. 255 entries, shared by MLD/IGMP
MLD v1/v2
MLD Snooping
–
–
–
Yes
Yes/No
Yes
–
–
–
–
–
Max.256 entries is shared by IPv4 ingress/egress, and IPv6 ingress
Max.512 entries is shared by MAC ingress/egress, and IPv6 egress
Support IPv4/IPv6 standard and extended ACL
Support MAC ACL
8
Yes (Based on 802.1q/ DSCP)
Support SP/ WRR
Based on Tx/Rx per port
Support IPv4 address
Support V1/V2c/V3
Support IPv4/IPv6 HTTP/HTTPS
Support Statistics (Group 1)/ History (Group 2)/ Alarms (Group 3)/ Events (Group 9).
Supports 3 mirroring groups
Based on One-to-One, Many-to-One
–
–
–
–
–
Support IPv4/IPv6 client address
Support IPv4/IPv6 client
Support IPv4/IPv6
Support IPv4 address
Support option 82
Support IPv4 address
Support option 82
Support IP source guard (IP Filter)
Support IPv4/IPv6 client
Support IPv4/IPv6 server
Support IPv4/IPv6 client
Support IPv4/IPv6 server
Support IPv4/IPv6 client
–
–
–
Yes
–
Support IPv4/IPv6 client
Yes
–
–
–
–
–
Yes
Support IPv4 RADIUX client
–
Support broadcast/ multicast/ unknown unicast
Based on pps (Packet per second)
Based on Port/ Mac address-based
Support MAB (MAC Authentication Bypass)
Yes
–
–
Yes
Static ARP
–
–
–
–
–
–
–
–
–
–
Operating: 32°F to 122°F (0°C to 50°C)
Operating: 10% to 90%

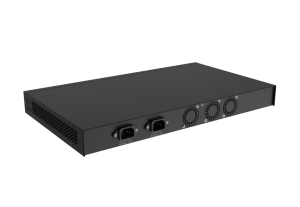

2x Internal PSU
3
–
1U, 19-inch rack-mount
260mm x 440mm x 44mm
1x Cloud Managed Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
FCC
CE EMC
CB
VCCI
CloudSwitch Core 24 |
CloudSwitch Core 30 |
CloudSwitch Core 54 |
CloudSwitch Aggregate 12 |
CloudSwitch Aggregate 8XG |
CloudSwitch Aggregate 8XG Full PoE |
|
|---|---|---|---|---|---|---|
| Model Number | ECS6824F | ECS8830F | ECS8854F | ECS5512F | ECS5512 | ECS5512FP |
| Switch Class | Layer 3 | Layer 3 | Layer 3 | Layer 2+ | Layer 2+ | Layer 2+ |
| Gigabit Ports | - | - | - | - | - | - |
| Multi-G Ports | - | - | - | - | 8 x 10G | 8 x 10G |
| SFP Ports | - | - | - | - | - | - |
| SFP+ Ports | 24 | 24 | 48 | 12 | 4 | 4 |
| QSFP28 Ports | - | 6 | 6 | - | - | - |
| MGNT Port | Yes | Yes | Yes | - | - | - |
| RJ45 Console Ports | Yes | Yes | Yes | Yes | Yes | Yes |
| PoE Capable Ports | - | - | - | - | - | Ports 1-8 |
| Power-over-Ethernet | - | - | - | - | - | 802.3af/at/bt (up to 90W) |
| Total PoE Budget | - | - | - | - | - | 410W |
| Form Factor | 19” 1U | 19” 1U | 19” 1U | Half Rack | 13"1U | 13"1U |
| Switching Capacity | 480Gbps | 1680Gbps | 2160Gbps | 240Gbps | 240 Gbps | 240 Gbps |
| Packet Forwarding Rate | Max. 810Mpps | Max. 600 Mpps | Max. 600 Mpps | 178.57 Mpps | 178.57 Mpps | 178.57 Mpps |
| MAC Address Table Size | Max. 16K | Max.32K | Max. 32K | 32k | 32k | 32k |
| Packet Buffer Memory | - | 6MB | 6MB | 2MB | 2MB | 2MB |
| Full load Power consumption | - | - | - | 43.4 Watts | 29.22 Watts | 410.35 Watts |
| PoE Extended Mode | - | - | - | - | - | - |
| PD Lifeguard | - | - | - | - | - | - |
| Continuous PoE Power | - | - | - | - | - | - |
| Dimensions | 260mm x 440mm x 44mm | 442mm×450mm×45mm | 442mm×450mm×45mm | 210mm x 230mm x 44mm | 330 x 230 x 44 mm | 330 x 230 x 44 mm |
| Cloud Managed Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| On-premises Mode | - | - | - | Yes | Yes | Yes |
| Standalone Mode | Yes | Yes | Yes | Yes | Yes | Yes |
|
