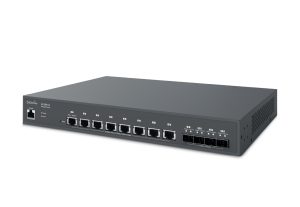

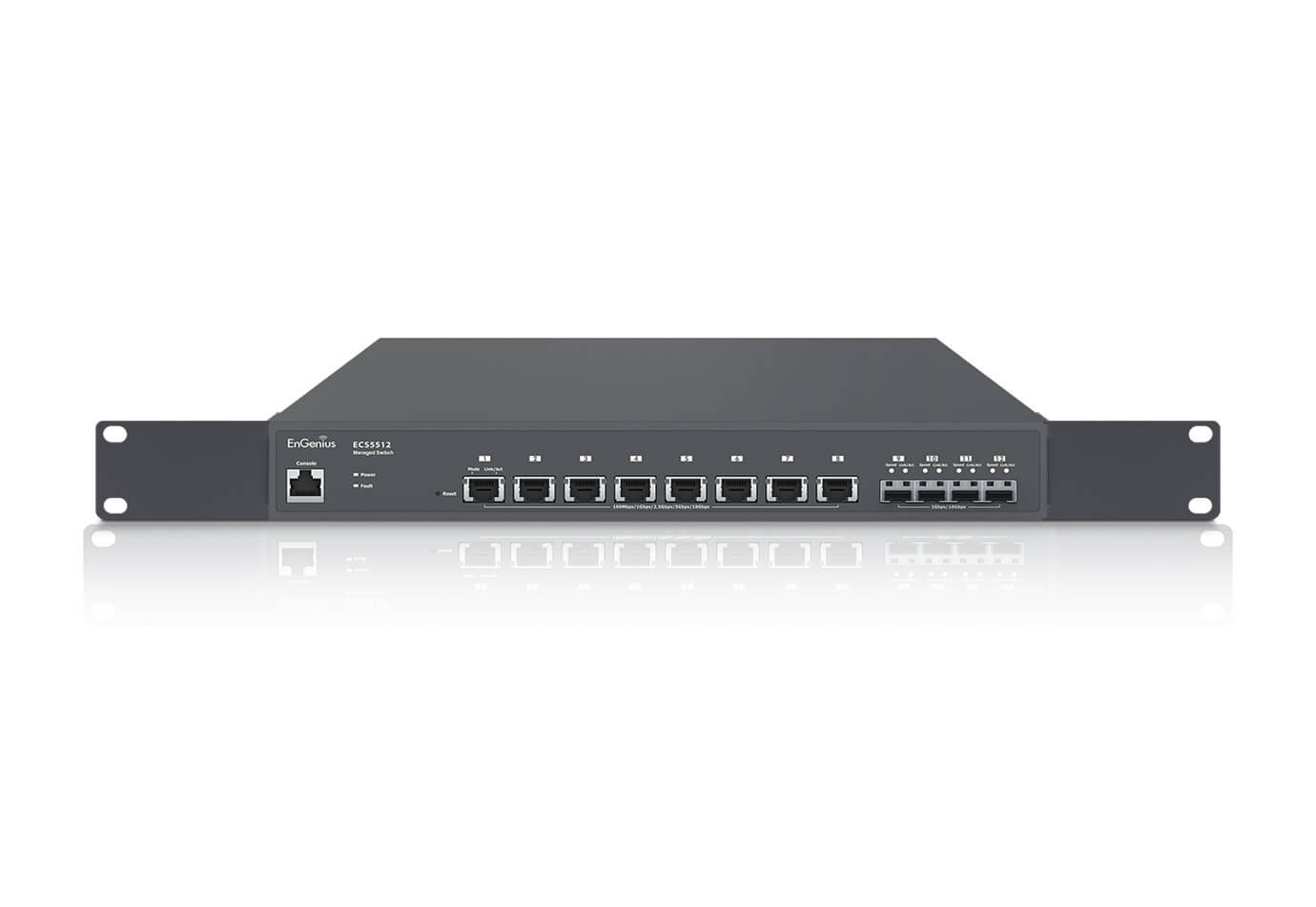

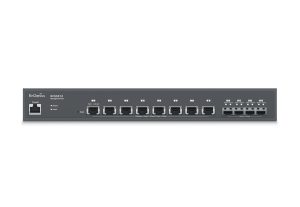

CloudSwitch Aggregate 8XG
EnGenius Cloud管理型Layer 2+アグリゲートスイッチ、ECS5512は、信頼性が高く管理が容易な8ポート10Gおよび4ポート10G SFP+アップリンクスイッチであり、ネットワークデバイスに高速接続を提供します。ゼロタッチプロビジョニングと集中型クラウド管理により、ネットワークの設定と管理をいつでもどこからでも簡単に行うことができます。Voice-VLAN機能と堅牢なセキュリティにより、音声およびビデオトラフィックの品質を確保し、悪意ある攻撃から保護します。
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
8 x 100/1000/2500/5000/10000 Mbps Ports
240 Gbps
512 MB
128 MB
100 ~ 240VAC, 50/60Hz
Power LED
Fault LED
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
EnGenius Cloud
Local Web GUI
32K
10K
Max 256 groups
MLD Snooping: v1
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Strict / WRR/ Strict + WRR
Port-based bandwidth control (Ingress/Egress)
Max. 256 Entries
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SNMP v1/v2c/v3 Support
RMON 1,2,3,9
Time Setting/Daylight saving
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
20 IPv6 address
Max. 192 ARP entries
Max. 63 entries
Max. 21 entries
Operating: 32°F to 122°F (0°C to 50°C)
5% – 95%
Weight: 5.7Ibs (2.6 kg) Width: 9.05” (230 mm) Length: 12.99” (330 mm) Height: 1.73” (44 mm)
1x Cloud Managed Gigabit Switch 1x Product Card 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit
