CloudSwitch Core 30

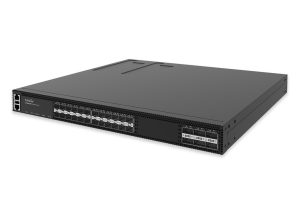

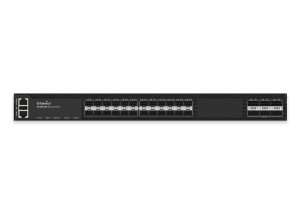

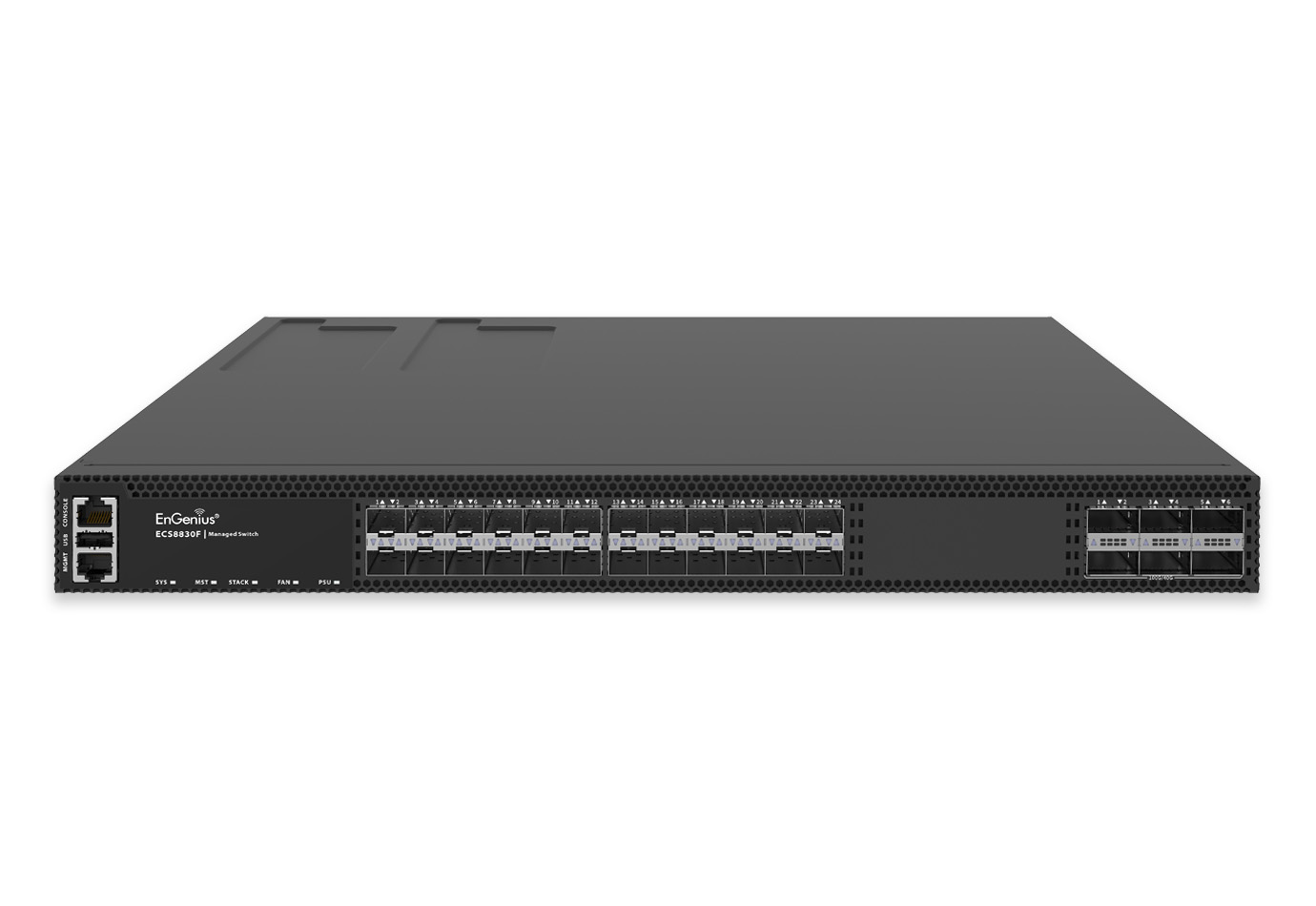

EnGenius CloudSwitch Core ECS8830Fは、企業ネットワークのバックボーン、コアおよびアグリゲーション環境向けに設計された、高性能レイヤー3スイッチです。高スループット、低遅延、高可用性に加え、クラウドによる可視化とローカル管理を組み合わせた柔軟なハイブリッドクラウド運用を実現します。 24ポートの10G SFP+と6ポートの100G QSFP28アップリンクを搭載し、VXLAN EVPN、MLAG、VSFに対応。高度なレイヤー3ルーティング、ネットワーク仮想化、ホットスワップ対応の冗長電源および冗長ファンにより、ミッションクリティカルなコアネットワークの安定運用と管理の効率化を支援します。
*VSFは、最大4台のECS8830Fスイッチを1台の論理スイッチとして統合し、管理の簡素化とポート密度の向上を実現します。システム情報および転送情報はVSFメンバー間で同期されるため、メンバースイッチに障害が発生した場合でもネットワークの可用性を維持できます。 メンバー間リンクアグリゲーションにより、帯域幅の拡張と冗長性の確保が可能です。これにより、エンタープライズのコアネットワークおよびアグリゲーションネットワーク向けに、シンプルで高可用性なアーキテクチャを構築できます。
802.3z 1000Base-X
802.3ae 10GBase-R
802.3bj 100GBase-CR4/KR4
802.3bm 100GBase-SR4
24
6
RJ-45 Console x1
1
USB 2.0 x1
1680Gbps
Up to 600 Mpps
DDR4 4GB
32M SPI+ 8G eMMC
AC in
Up to 10K bytes
Max. 32K
Support STP/RSTP/MSTP
Port Fast/ BPDU Guard/ Loop Guard/ Root Guard
Support Static / LACP
Max. 128 trunks/ Max. 8 ports per trunk
Max. 4K 802.1Q VLAN
MAC VLAN, Super VLAN, Private VLAN, Protocol VLAN, GVRP, Voice VLAN
Yes
Yes (shared with ACL entry)
Yes
Yes
Yes
Yes
Based on Tx/Rx
Support v1/v2
Yes
Up to Max. 30K, shared by IPv4/IPv6
Max. IPv4 interface : 65
Max. IPv6 interface : 32
Max. 8K, shared by IPv4/IPv6
Support ARP aging/ ARP Proxy
Max. 1K entries
Yes
Yes
Yes
Yes
Yes
Support IPv4/IPv6 (VRRPv2/v3)
Max. 4K entries, shared by MLD/IGMP
MLD v1/v2
MLD Snooping
Max. 4K entries, shared by MLD/IGMP
IGMP v1/v2/v3
IGMP Snooping
IGMP Proxy
IPv4/v6 PIM-DM/SM
IPv4/v6 PIM-SSM
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Max.1000 entries is shared by IPv4 ingress/egress, and IPv6 ingress/egress
Support IPv4/IPv6 standard and extended ACL
Support MAC ACL
Support user-defined ACL
8
Yes
Support SP/ WRR/ WDRR
Based on Tx/Rx per port
Support IPv4/IPv6 address
Support V1/V2/V3
Support IPv4/IPv6 HTTP/HTTPS
Support Statistics (Group 1)/ History (Group 2)/ Alarms (Group 3)/ Events (Group 9).
Supports 7 mirroring groups
Based on One-to-One, Many-to-One, flow-based
VLAN Mirroring
Yes
Yes
Yes
Yes
Yes
Support IPv4/IPv6 server address
Support IPv4/IPv6 client address
Support IPv4/IPv6 client
Support IPv4/IPv6
Support option 67
Support IPv4/IPv6 address
Support option 82
Support IPv4/IPv6 address
Support option 43
Support option 82
Support IP source guard
Support IPv4/IPv6 client
Support IPv4/IPv6 server
Support IPv4/IPv6 client
Support IPv4/IPv6 server
Support IPv4/IPv6 client
Support IPv4 client
Support IPv4/IPv6 client
Support IPv4/IPv6 server
Yes
Yes
Support IPv4/IPv6 client
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Support IPv4/IPv6 Radius client
Support IPv4 TACACS+ client
Support broadcast/ multicast/ unknown unicast
Based on bps (Bits per second)
Based on Port/ Port Channel/ Mac address-based
Support MAB (MAC Authentication Bypass)
Support Local database
Yes
Yes
Yes
prevent from ICMP/IP/TCP attack
Yes
MAC /IP address authentication bypass
Support HTTPS
VSF (Virtual Switch Framework)
Max. 4 units
Yes
Yes
Yes
ULSM (Uplink State Monitor)
ULPP (Upstream Link Protection Protocol)
Yes
Support VPLS/ VPWS
Yes
Yes
0-50
10 – 90% (non-condensing)

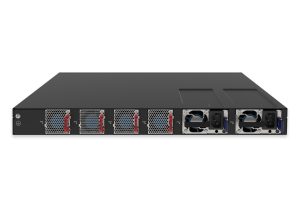

1+1 Redundant
3+1 Redundant
Front to back
1U, 19-inch rack-mount
442mm×450mm×45mm
1x Cloud Managed Switch
1x Product Card
2x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
CloudSwitch Core 30 |
CloudSwitch Core 54 |
|||
|---|---|---|---|---|
| Model Number | ECS8830F | ECS8854F | ||
| Switch Class | Layer 3 | Layer 3 | ||
| Gigabit Ports | - | - | ||
| Multi-G Ports | - | - | ||
| SFP Ports | - | - | ||
| SFP+ Ports | 24 | 48 | ||
| QSFP28 Ports | 8 | 8 | ||
| MGNT Port | Yes | Yes | ||
| RJ45 Console Ports | Yes | Yes | ||
| PoE Capable Ports | - | - | ||
| Power-over-Ethernet | - | - | ||
| Total PoE Budget | - | - | ||
| Form Factor | 19” 1U | 19” 1U | ||
| Switching Capacity | 1680Gbps | 2160Gbps | ||
| Packet Forwarding Rate | - | - | ||
| MAC Address Table Size | Max.3 2K | Max. 32K | ||
| Packet Buffer Memory | 6MB | 6MB | ||
| Full load Power consumption | - | - | ||
| PoE Extended Mode | - | - | ||
| PD Lifeguard | - | - | ||
| Continuous PoE Power | - | - | ||
| Dimensions | 442mm×450mm×45mm | 442mm×450mm×45mm | ||
| Cloud Managed Mode | Yes | Yes | ||
| On-premises Managed | Yes | Yes | ||
| Standalone Mode | Yes | Yes | ||
|
