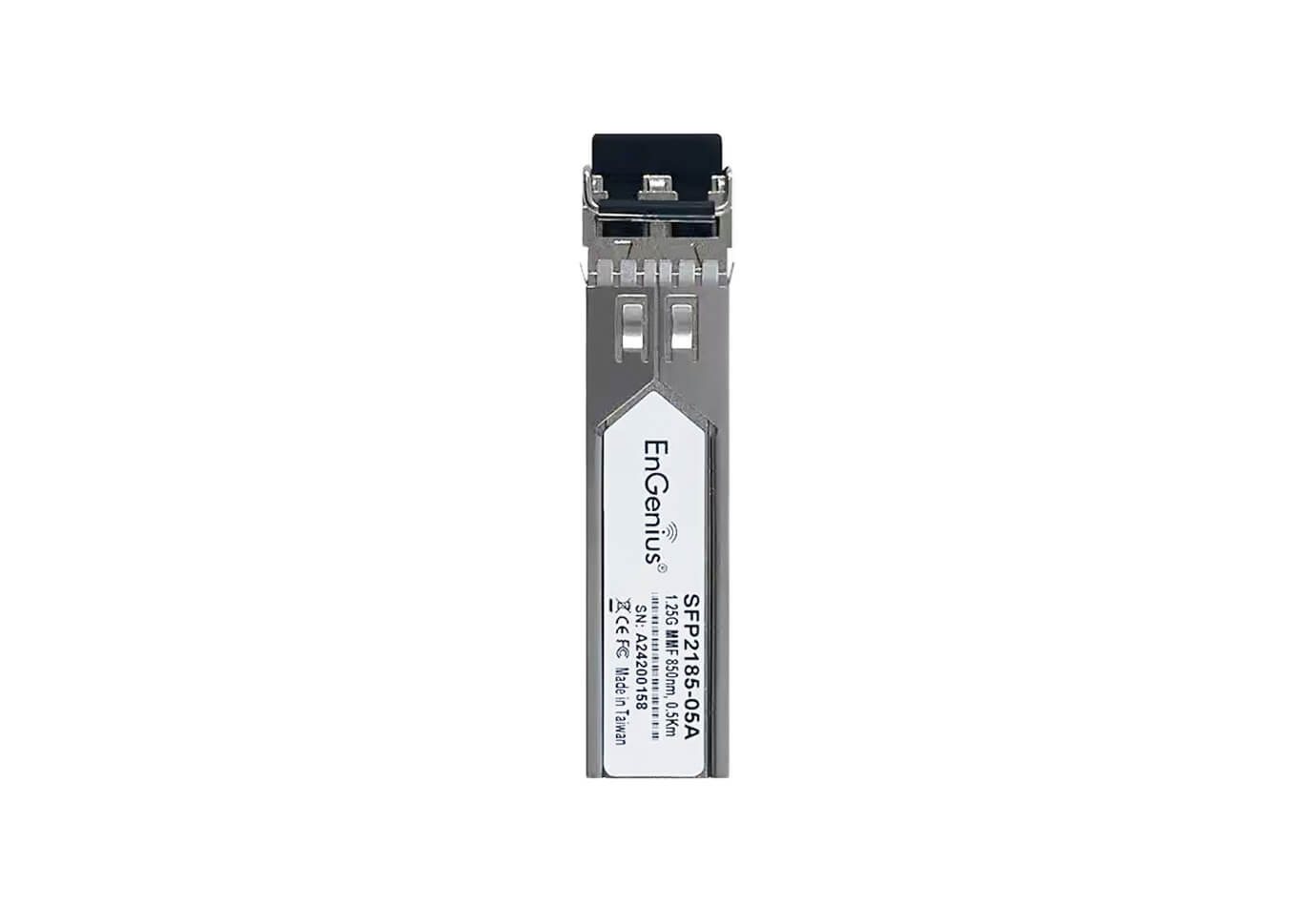

1.25Gbps マルチモード 0.5km

Standard Compliance

IEEE 802.3z

Data Rate Gigabit

1.25G

Media Type

MMF

Max Transmission Distance

0.5km

Connector

LC Connector

Average Output Optical Transmission Power

-10 ~ -3 dBm

Optical Receiver Sensitivity

-18 dBm

Wavelength

850nm

Cable Type

Multi-mode

Supply Voltage

3.15V ~ 3.45V

Max Voltage/Current

3.45V / 160mA

Maximum Receiver Power

-3 dBm

Temperature

Operating: 0°C ~ 70°C (32°F ~ 158°F)
Storage: -40°C ~ 85°C (-40°F ~ 185°F)

Humidity

5~95% (non-condensing)

Dimensions (L x W x H)

2.2” x 0.58” x 0.49” (55.9mm x 14.69mm x 12.39mm)

Weight

0.06 lb. (25g)

Certifications

Compliant with Class 1 Laser International Safety Standard with EN 60825-1
