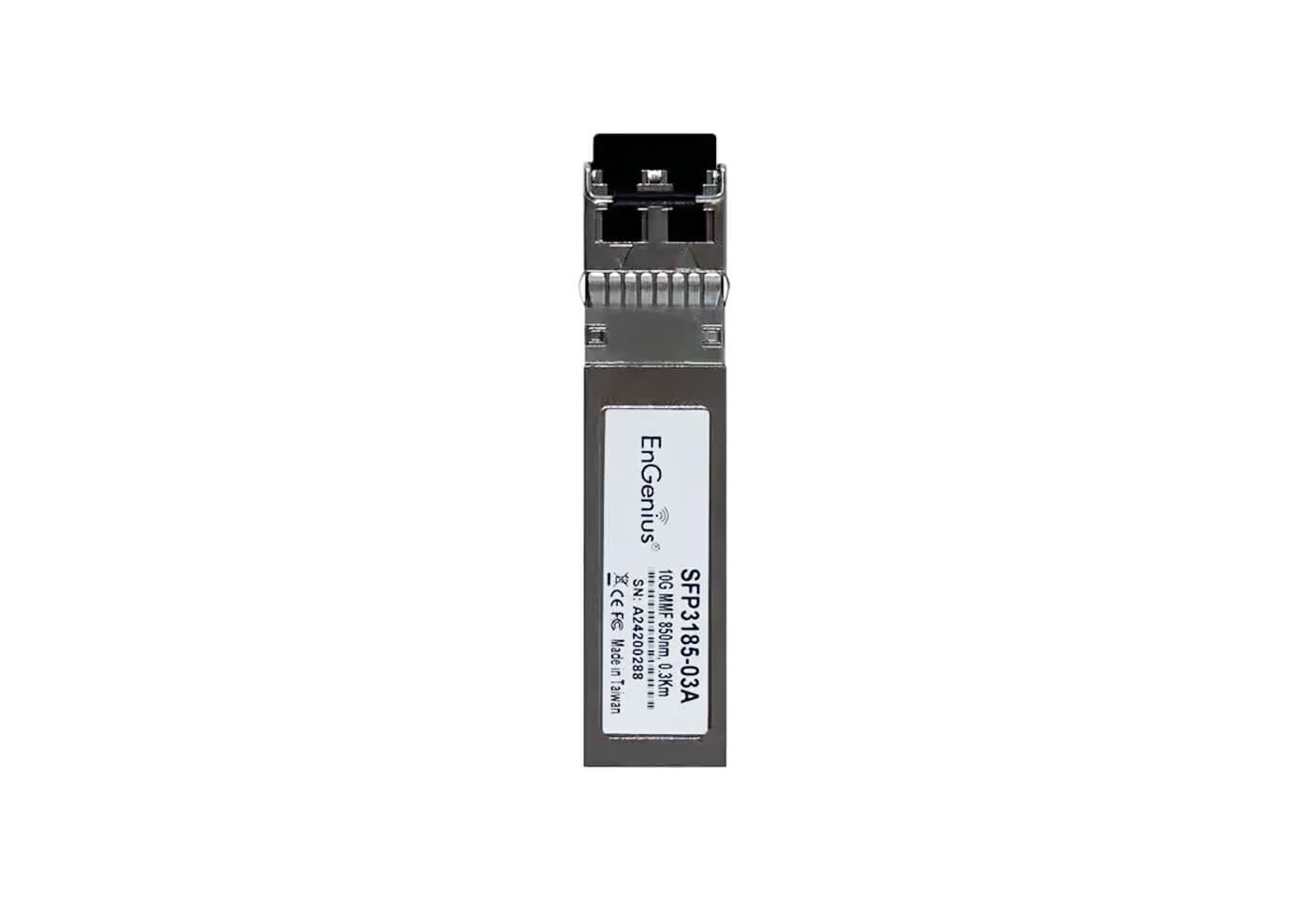

10Gbps マルチモード 0.3km

Standard Compliance

IEEE 802.3ae 10Gbase-SR

Data Rate Gigabit

10.3125G

Media Type

MMF

Max Transmission Distance

0.3km

Connector

Duplex LC Connector

Single / Bi-Directional

Single Direction

Average Output Optical Transmission Power

-6.5 ~ -1 dBm

Optical Receiver Sensitivity

-11.1 dBm

Wavelength

850nm VCSEL

Cable Type

Multi-mode (50/125μm) or (62.5/125μm)

Supply Voltage

3.13V ~ 3.46V

Max Voltage/Current

3.46V / 300mA

Maximum Receiver Power

-3 dBm

Temperature

Operating: 0°C ~ 70°C (32°F ~ 158°F)
Storage: -40°C ~ 85°C (-40°F ~ 185°F)

Humidity

5~95% (non-condensing)

Dimensions (L x W x H)

2.3” x 0.54” x 0.49” (58.4mm x 13.9mm x 12.6mm)

Weight

0.06 lb. (25g)

Certification

Compliant with Class 1 Laser International Safety Standard with EN 60825-1
