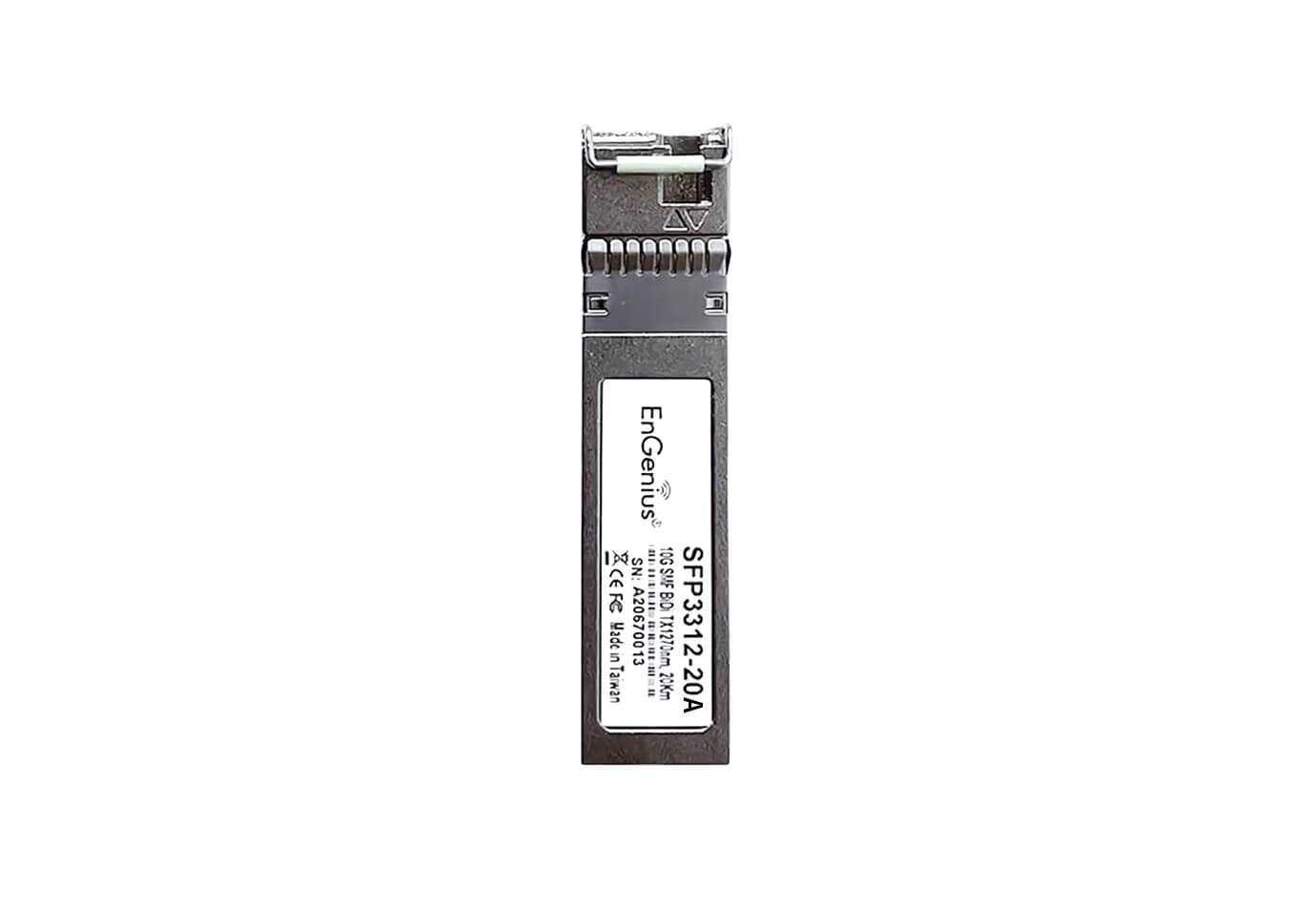

10Gbps BiDi シングルモード 20km

Standard Compliance

IEEE 802.3ae 10Gbase-LR

Data Rate Gigabit

9.95Gb/s to 10.3Gb/s

Media Type

SMF

Max Transmission Distance

20km

Connector

Simplex LC Connector

Single / Bi-Directional

Bi-Direction

Average Output Optical Transmission Power

-2 ~ 2 dBm

Optical Receiver Sensitivity

-14.5 dBm

Wavelength

TX: 1270nm
RX: 1330nm

Cable Type

Single mode

Supply Voltage

3.3V ~ 3.6V

Max Voltage/Current

3.6V / 420mA

Maximum Receiver Power

-14.5 dBm

Temperature

Operating: 0°C ~ 70°C (32°F ~ 158°F)
Storage: -40°C ~ 85°C (-40°F ~ 185°F)

Humidity

5~95% (non-condensing)

Dimensions (L x W x H)

2.26” x 0.55” x 0.43” (57.5mm x 14mm x 10.8mm)

Weight

0.05 lb. (22.6g)

Certification

Compliant with Class 1 Laser Internationa
