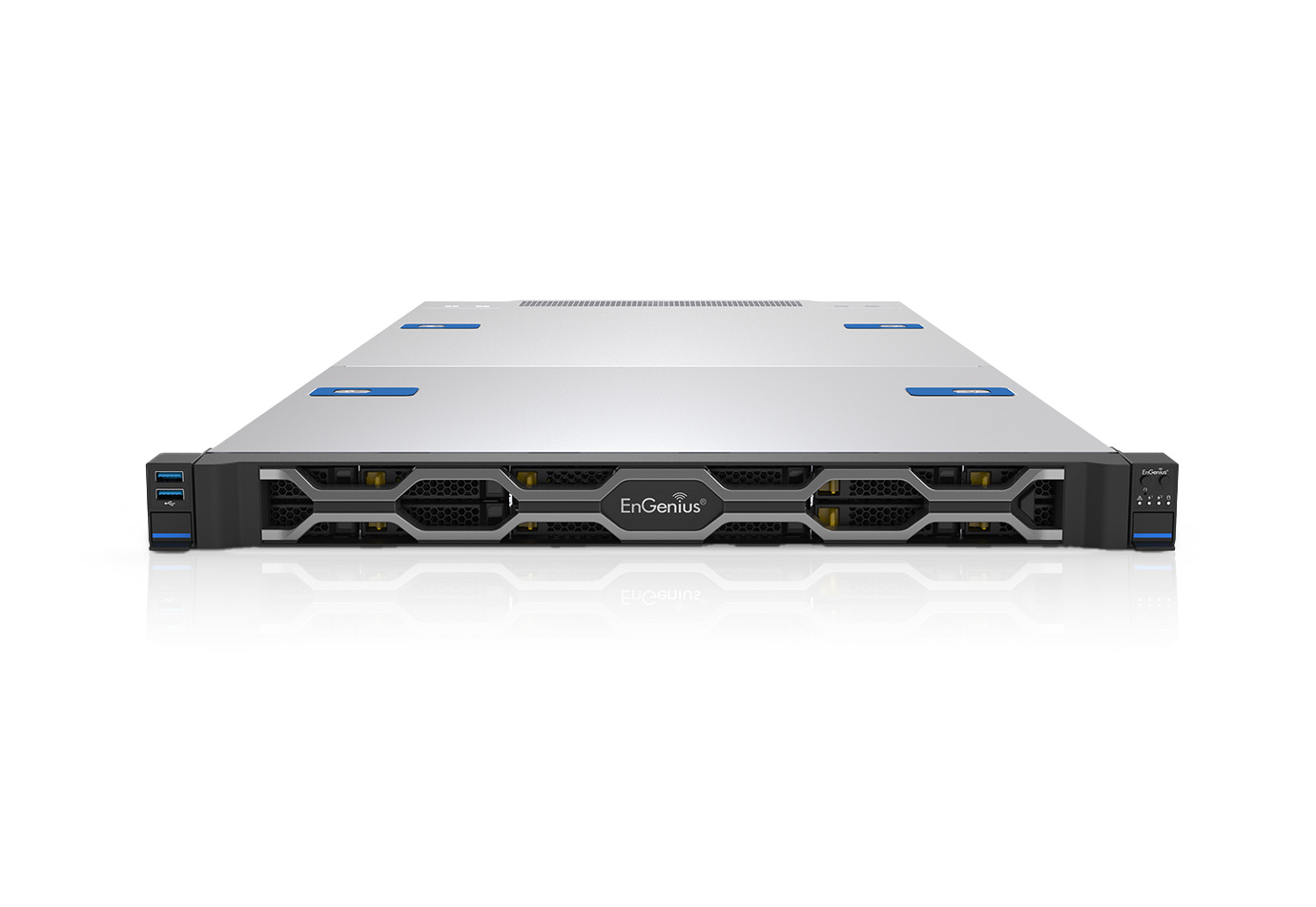

EnGenius S11 是一款 1U 高密度模組化伺服器，採用 Intel® Xeon® 第六代平台並符合 OCP DC-MHS 標準。支援最多 12 顆 NVMe 硬碟與 2 組 PCIe 5.0 擴充插槽，非常適合應用於虛擬化、AI 工作負載與私有雲部署。處理器採用 P-core/E-core 混合架構，搭配高效氣流設計與集中式 EDCC 管理，S11 為現代資料中心提供絕佳的運算密度與系統彈性。
1U 資料中心伺服器 |
2U 資料中心伺服器 |
|||
|---|---|---|---|---|
| Model Number | S11 | S21 | ||
| Form Factor | 1U Rackmount | 2U Rackmount | ||
| Processor | Intel Xeon 6 (6500/6700 Series) | Intel Xeon 6 (6500/6700 Series) | ||
| Socket Type | 2 x LGA4710 | 2 x LGA4710 | ||
| Memory | 32x DDR5 DIMM slots | 32x DDR5 DIMM slots | ||
| Drive Bays | Up to 24x 2.5”NVMe hot-swap drive | Up to 24x 2.5”NVMe hot-swap drive | ||
| SSD installed | N/A | N/A | ||
| System Cooling | Air Cooling (8 x Smart FAN) | Air Cooling (6 x Smart FAN) | ||
| Expansion Slot | 1x PCIe Gen5 x8 HHHL; 1x PCIe Gen5 x16 FHHL; 2x OCP3.0 x8 SFF | 3x PCIe Gen5 x16 FH3/4L with Double Width or 6x PCIe Gen5 x8 FH3/4L with Single Width; 1x PCIe Gen5 x8 HHHL; 1x PCIe Gen5 x16 FHHL; 2x OCP3.0 x8 SFF | ||
| I/O Port | Front: 2x USB3.0 Type A; Rear: 1x USB3.0 Type A for BMC; 1x Mini Display for BMC; 1x USB3.0 Console for BMC; 1x MGNT GE for BMC | Front: 2x USB3.0 Type A; Rear: 1x USB3.0 Type A for BMC; 1x Mini Display for BMC; 1x USB3.0 Console for BMC; 1x MGNT GE for BMC | ||
| Power Supply | M-CRPS 2000W, 80 Plus Titanium | M-CRPS 2200W, 80 Plus Titanium | ||
| Security | Trusted Platform Module(TPM) 2.0; Platform Firmware Resilience (PFR) 4.0; Intrusion Detection (Open Chassis Cover) | Trusted Platform Module(TPM) 2.0; Platform Firmware Resilience (PFR) 4.0; Intrusion Detection (Open Chassis Cover) | ||
| Dimensions | 438 x 790 x 44 (mm) | 438 x 790 x 88 (mm) | ||
| Central Management | EnGenius Data Center Controller | EnGenius Data Center Controller | ||
|
