New

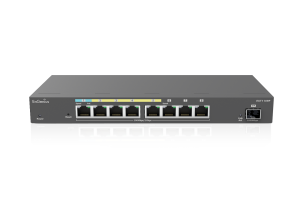

Switch Extender 3GE 4 PoE 1SFP

3埠 GE、4埠 GE PoE、1埠 GE PD 及 1埠 SFP 延展型交換器

EXT1109P

Product Highlight

EnGenius 延展型交換器 EXT1109P 是一款可靠的 4埠 GE PoE、1埠 GE PD PoE、3埠 GE 和 1個 SFP 的延展型交換器，擅長於實現網路擴展的多樣化。其 SFP 介面將數據傳輸擴展至超過傳統 100 公尺 RJ45 的限制，確保穩健的網路性能。最佳化的 Voice-VLAN 功能、零觸摸配置和易於使用的雲端管理為中小企業提供了無煩惱的網路解決方案。

1個 GE PD PoE 埠允許該設備透過 PoE 供電

4個 GE PoE 埠為其他 PD 設備供電

3個 GE 埠用於高速連接

1個 SFP 上行連接埠，用於頻寬密集型應用

零觸摸配置、集中的雲配置和可視化監控提高了網路安裝和管理的效率

Voice VLAN功能確保VoIP流量的安全性和通訊品質

使用 EnGenius Cloud App 從任何地方進行雲端管理的延展型交換器，Cloud To-Go 的專業授權提供了更多功能，以滿足進階管理的需求

EnGenius FitXpress (雲端管理) 是延展型交換器系列產品的經濟實惠的管理選擇

Downloads

檔案名稱	類型
快速入門指南_Switch Extender 3GE 4 PoE 1SFP_EXT1109P_QSG_EN	Quick Guide
規格手冊_Switch Extender 3GE 4 PoE 1SFP_EXT1109P Datasheet	Data Sheet

Product Intro Video

Technical Specifications

Port Standards

802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet

Network Port – Gigabit Ethernet Ports

8×10/100/1000 Mbps Ports

Network Port – SFP Ports

1x SFP Port

Switching Capacity

18Gbps

Flash Memory

32 MB

PoE Capable Ports

Ports 2- 5 (802.3 af/at)

Total PoE Budget

Power Input: 802.3at Type 2(30W); Power Budget: up to 15W
Power Input: 802.3bt Type 3(60W); Power Budget: up to 40W
Power Input: 802.3bt Type 4(90W); Power Budget: up to 60W

Power Source

PoE PD
Recommend EnGenius PoE adapters (EPA5060GBT, EPA5090GBT),
Optional DC-Jack (100 to 240 VAC, 50/60Hz)

Physical Interface

System Indicators

Power LED
PoE LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity (per SFP slot)

L2 Features

Network Management

EnGenius Cloud

MAC Address Table

8k

Jumbo frame size

10k

Multicast Group

Max 8 groups

QoS-number of Priority Queues Supported

8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Web Graphical User Interface (GUI)

LSP(Local status page)

System Time

Time Setting/Daylight saving

Common L2 Features

802.1w Rapid Spanning Tree
Domain Name System (DNS) settings
Multicast Filitering
IGMP Snooping
IGMPv2
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
Weighted Round Robin Queue(WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot Switch
Find Me

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

Operating: 5% – 95%

Dimensions & Weight

Device Dimensions & Weights

Weight: 620g
Length: 9,45” (240 mm)
Width: 4.13” (105 mm)
Height: 1.06” (27 mm)

Package Contents

1x EXT Switch Extender
1x Product Card
1x Wall Mount Kit
1x Adhesive label
1x Rubber Feet Cushion

Model Comparison

	Switch Extender 3GE 4 PoE 1SFP	Switch Extender 4 PoE	Switch Extender 4GE 1SFP
Model Number	EXT1109P	EXT1105P	EXT1106
交換器等級	Websmart	Websmart	Websmart
千兆(Gigabit)連接埠	8	5	5
SFP光纖連接埠	1	-	1
安裝形式	9.45” (Desktop)	Desktop	4.92” (desktop)
PoE供電標準	802.3 af/at	802.3 af/at	-
PoE總功率預算	Up to 60w	Up to 60w	-
PoE供電連接埠	Ports 2-5	Ports 2-5	-
交換能力	18Gbps	10Gbps	12Gbps
Packet Forwarding Rate	13.39 Mpps	7.44 Mpps	8.93 Mpps
MAC地址大小	8k	8k	8k
Packet Buffer Memory	512KB	512KB	512KB
Full load Power consumption	64.27 Watts	69.36 Watts	4.57 Watts
Continuous PoE Power	Yes	Yes	Yes
尺寸	240 mm x 105 mm x 27 mm	170mm x 105mm x 27mm	125 mm x 73.9 mm x 28 mm
雲端管理模式	Yes	Yes	Yes
FitXpress Managed Mode	Yes	Yes	Yes
Fitcon Mode	Future	Future	Future
