Fit6 2×2 Lite

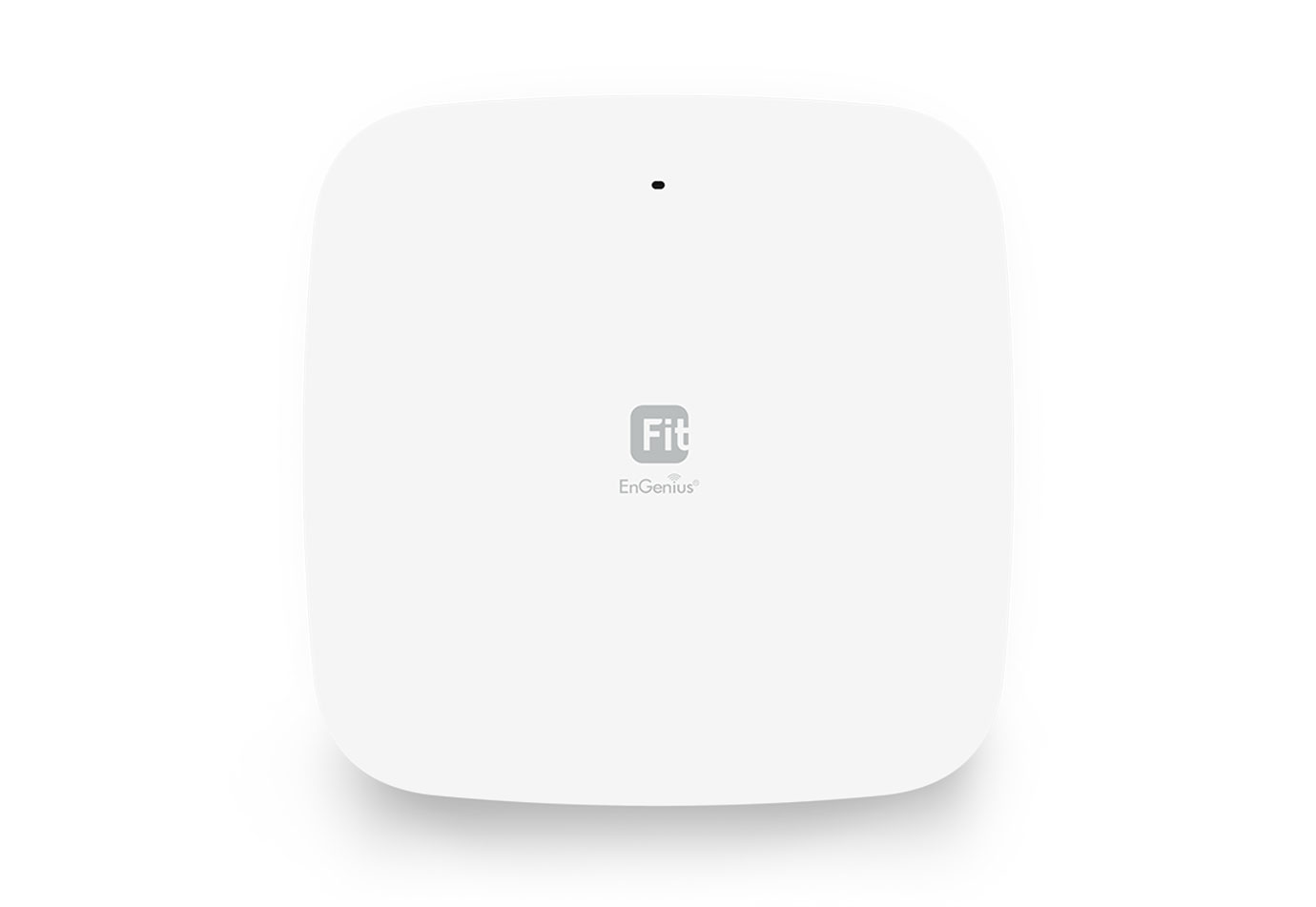

EnGenius Fit 802.11ax 2×2 雙頻室內無線基地台

EWS356-FIT

Product Highlight

EnGenius Fit6 2x2 Lite 室內無線基地台提供先進的 802.11ax 技術,為用戶提供極其迅速和高效的性能,2.4GHz 頻率的最大理論傳輸量為 574 Mbps,5GHz 頻率的驚人傳輸量為 2,400 Mbps!此外,它還受到頂級的 WPA3/WPA2PSK AES 加密協議的保護,提供無與倫比的安全性。

  • 雙發式 802.11ax 架構且向下兼容 11ac/a/b/g/n 客戶端設備
  • 支援 WPA3 和 WPA2-AES 認證
  • 5 dBi 集成 2x2 天線
  • 支援高達 2,400 Mbps 在 5GHz 頻段 & 574 Mbps 在 2.4GHz 頻段
  • 支援 5GHz DFS 頻道
  • 通過 FitController 控制器進行本地和遠端管理,無需費用
  • 1 GB 802.3af PoE 連接埠方便放置,距離電源最遠可達 328 英尺
  • 提供 AP 和 WDS 模式以滿足您的管理和部署要求

Product Intro Video

Technical Specifications

Standards

802.11a/b/g/n/ac/ax

Antenna

2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi

Physical Interface

1 x 10/100/1000 BASE-T
DC12V
Reset/Reboot button

LED Indicators

1 x Multi-color LED

Power Source

PoE 802.3af
DC12V

Maximum Power Consumption

10.7W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh


Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 21 dBm on 2.4 GHz
Up to 21 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

2 × 2:2

SU-MIMO Capability

Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio.

Two (2) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE160 to a 2×2 wireless device under the 5GHz radio.

MU-MIMO Capability

Two (2) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.

Two(2) Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):

802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent User

128 per radio

Management Features

Deployment Options

Stand-Alone (Individually Managed)
FitXpress
FitController

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

EWS356-FIT Device

Weight: 380g
Length: 160 mm
Width: 160 mm
Height: 30 mm

Package Contents

1 – EWS356-FIT Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Quick Installation Guide

Compliance

FCC
CE
IC
UCKA

Warranty

2 Year

Model Comparison

Fit6 2x2 Lite

Fit6 2x2

Fit6 4x4

Model Number EWS356-FIT EWS357-FIT EWS377-FIT
無線網路標準 802.11a/b/g/n/ac/ax 802.11a/b/g/n/ac/ax 802.11a/b/g/n/ac/ax
無線頻段 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz
2.4 GHz最大傳輸速率 574 Mbps 574 Mbps 1,148 Mbps
5 GHz最大傳輸速率 2,400 Mbps 1,200 Mbps 2,400 Mbps
6 GHz最大傳輸速率 - - -
空間串流 2 x 2:2 2 x 2:2 4 x 4:4
2.4 GHz傳輸能力 21 dBm 22 dBm 23 dBm
5 GHz傳輸能力 21 dBm 22 dBm 23 dBm
6 GHz傳輸能力 - - -
天線 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) 4 x 5 dBi (2.4 GHz); 4 x6 dBi (5 GHz)
網路線供電標準 802.3af 802.3af/at 802.3at
有線網路連接埠 1x GE Port 1x GE Port 1x 2.5GE Port
安裝方式 Ceiling / Wall Ceiling / Wall Ceiling / Wall
尺寸 160 x 160 x 30 mm 160 x 160 x 27 mm 205 x 205 x 33.2 mm
操作模式 AP/Mesh AP/Mesh AP/Mesh
網狀無線網路技術 Yes Yes Yes
MU-MIMO Yes Yes Yes
波束成形技術 Yes Yes Yes
本地管理(FitController) Yes Yes Yes
行動應用程式(FitExpress App) Yes Yes Yes
