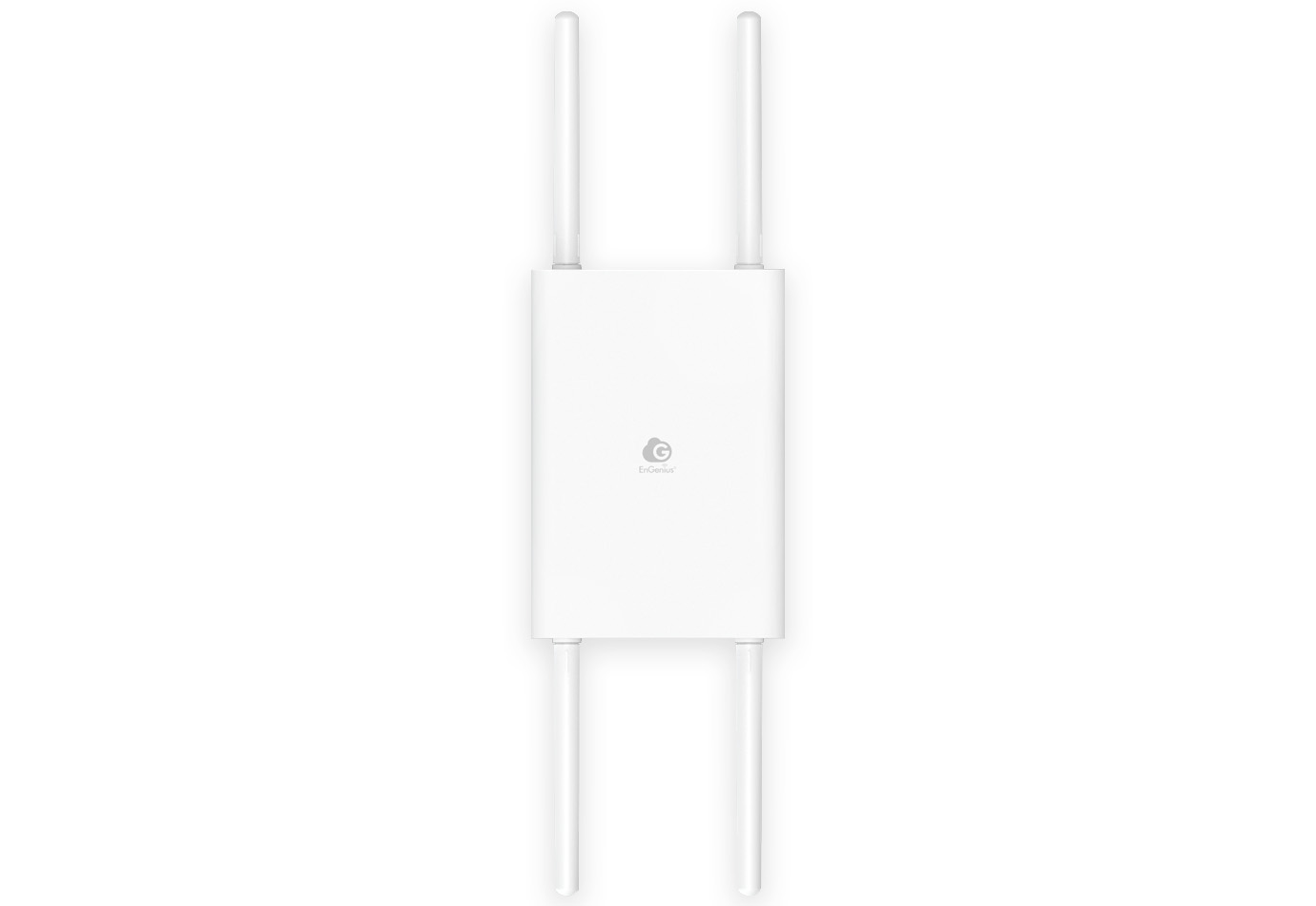

雲端管理 Wi-Fi 7 2×2 戶外無線基地台

Technical Specifications

Standards

IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab

Antenna

2 x 2.4 GHz: 5 dBi(External Omni-Directional)
2 x 5 GHz: 5 dBi(External Omni-Directional)

Scanning Radio

N/A

BLE

N/A

Physical Interfaces

1 x 2.5GE Port (PoE+)
1 x 2.5GE Port
1 x Reset Button

LED Indicators​

1 x Multi-color LED

Power Source

Power-over-Ethernet: 802.3at Input

Maximum Power Consumption

22.5w

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz, 5850MHz ~ 5895MHz

Transmit Power

Up to 26 dBm on 2.4 GHz
Up to 26 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

2 × 2:2

SU-MIMO Capability

Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 2,900 Mbps wireless data rate with EHT160 to a 2×2 wireless device under the 5GHz radio.

MU-MIMO Capability

Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream MU-MIMO for up to 2,900 Mbps wireless data rate with EHT160 to a 2×2 wireless device under the 5GHz radio simultaneously.

Supported Data Rates

802.11be:
2.4 GHz: Max 700 (MCS0 to MCS13, NSS = 1 to 2)
5 GHz: Max 2,900 (MCS0 to MCS13, NSS = 1 to 2)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1,200 (MCS0 to MCS11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

DFS Certification

CE

AirGuard (WIPS/WIDS)

N/A

Zero-wait DFS

N/A

Dedicated Scanning Radio

N/A

Max Concurrent User

512

Client Balancing

Yes

Auto Channel Selection

Yes
