ENS500EXT-AC的速度比11ac Wave 1 3x3 基地台的速度提高30％，在5 GHz高達867 Mbps，以提供更高的用戶設備容量和更高的連接可靠性。搭載EnJet技術，將不同站點的遠程傳輸，分配到不同的時間間隙中，以微小時隙讓各點在不延遲的情況下進行傳輸，實現高效的時間管理，並避免出現隱藏節點問題。
IEEE 802.11ac wave2/a/n on 5 GHz
Powerful Qualcomm® CPU
2x High-Gain Omni-Directional 5 dBi Antennas
Compatible with EnGenius SA5219 Sector Antennas
2 x 10/100/1000 Base-TX, RJ-45 Gigabit Ethernet Ports
1 x Reset Button
Power
LAN1
LAN2
WLAN
Signal
9W
Line to Line: 1 KV
Line to Ground: 2 KV
Contact: 4 KV
Air: 8 KV
5 GHz
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Support radios and channels will be varied on the configured regulatory domain
Up to 23 dBm on 5 GHz
2 x 2:2
5GHz – Two (2) Spatial Stream SU-MIMO up to 867 Mbps to individual
2×2 VHT40 client devices
5GHz – Two (2) Spatial Stream Multi User (MU) MIMO for up to 867Mbps to
two (2) MU-MIMO capable wireless devices simultaneously
5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2×2 MIMO With 2 Streams
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n/ac Packet Aggregation: AMPDU, ASPDU
802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Supports 8 SSIDs
Supports 802.1q SSID-to-VLAN Tagging
VLAN Pass-Through
Management VLAN
Supports 802.1d Spanning Tree Protocol
Complaint With IEEE 802.11e Standard
WMM
v1, v2c, v3
I/II, Private MIB
Stand-Alone (Individually Managed)
Managed Mode (w/ezMaster/Neutron Series Switch)
Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Traffic Shaping
VLANs for Access Point – Multiple SSIDs
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Users Default
Managed Mode (w/ezMaster/Neutron Switch)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting
Power Save Mode (U-APSD Support)
CLI Support
HTTPS
WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
AP Auto Discovery and Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP – Multiple SSIDs
Secured Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic & Usage Statistics
Real-time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Operating: -4 ºF~140 ºF (-20 ºC~60 ºC)
Storage: -22 ºF~176 ºF (-30 ºC~80 ºC)
Operating: 90% or less
Storage: 90% or less
IP55-Rated Enclosure
Weight: 0.65 lbs. (0.29 kg)
Width: 3.93” (100 mm)
Length: 7.20” (185 mm)
Height” 1.08” (27 mm)

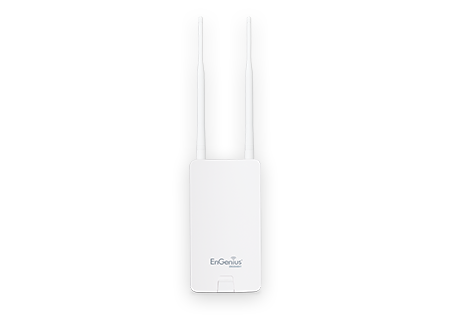

1 – ENS500EXT-AC Outdoor Access Point
1 – PoE Adapter (EPA2406GP)
2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
2 – 5 GHz 5 dBi SMA Antennas
1 – Power Cord
1 – Quick Installation Guide
FCC
CE
ENS500EXT-AC |
ENH1350EXT |
ENS620EXT |
ENS500-AC |
ENS202EXT |
EnStation5-AC |
EnStationAC |
|
|---|---|---|---|---|---|---|---|
| Model Number | |||||||
| 無線網路標準 | 802.11a/b/g/n/ac Wave 2 | 802.11a/b/g/n/ac Wave 2 | 802.11a/b/g/n/ac Wave 2 | 802.11a/b/g/n/ac Wave 2 | 802.11b/g/n | 802.11a/b/g/n/ac Wave 2 | 802.11a/b/g/n/ac Wave 2 |
| 無線頻段 | 5 GHz | 2.4 GHz & 5GHz | 2.4 GHz & 5GHz | 5 GHz | 2.4 GHz | 5 GHz | 5 GHz |
| 2.4 GHz最大傳輸速率 | - | 400 Mbps | 400 Mbps | - | 300 Mbps | - | - |
| 5 GHz最大傳輸速率 | 867 Mbps | 867 Mbps | 867 Mbps | 867 Mbps | - | 867 Mbps | 867 Mbps |
| 6 GHz最大傳輸速率 | - | - | - | - | - | - | - |
| 空間串流 | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 | 2 x 2:2 |
| 2.4 GHz傳輸能力 | - | Up to 23 dBm | Up to 27 dBm | - | Up to 26 dBm | Up to 26 dBm | - |
| 5 GHz傳輸能力 | Up to 23 dBm | Up to 23 dBm | Up to 27 dBm | Up to 26 dBm | - | - | Up to 26 dBm |
| 6 GHz傳輸能力 | - | - | - | - | - | - | - |
| 天線 | 2 x 5dBi (SMA) | 2 x 5 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) | 2 x 5 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) | 14 dBi (Integrated) | 2 x 5 dBi SMA-Type Omni (Detachable) | 19 dBi Directional (Integrated) | 19 dBi High-Gain Directional (Internal) |
| 網路線供電標準 | 24V Proprietary | 802.3af/at | 24V Proprietary | 24V Proprietary | 24V Proprietary | 24V Proprietary | PoE: 802.3at / PSE: 802.3af |
| Scanning Radio | - | - | - | - | - | - | - |
| BLE | - | - | - | - | - | - | - |
| Power Consumption (Peak) | - | - | - | - | - | - | - |
| 有線網路連接埠 | 2 x 10/100/1000 Ethernet Ports | 1 x 10/100/1000 Ethernet Port | 2 x 10/100/1000 Ethernet Ports | 2 x 10/100/1000 Ethernet Ports | 2 x 10/100 Ethernet Ports | 2 x 10/100/1000 Ethernet Ports | 2 x 10/100/1000 Ethernet Ports |
| 安裝方式 | Wall/Pole | Wall/Pole | Wall/Pole | Wall/Pole | Wall/Pole | Wall/Pole | Wall/Pole |
| 尺寸 | 186 x 100 x 29 mm | 174 x 111 x 30 mm | 192 x 114 x 48 mm | 186 x 100 x 29 mm | 100 x 186 x 29 mm | Φ190 x 38 mm | Φ190 x 38 mm |
| 網狀無線網路技術 | - | Yes | - | - | - | - | - |
| Cloud To-Go app | - | - | - | - | - | Yes | - |
| EnWiFi app | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
|
