New Lite
Cloud7 2x3x3 Lite

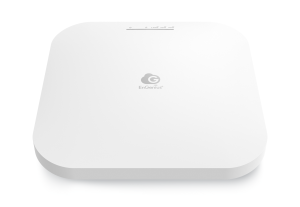

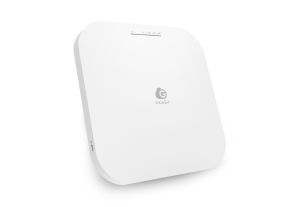

Cloud Lite 802.11be 2x3x3 Tri-Band Indoor Access Point

ECW516L
Tri-Band
BE13700

Product Highlight

EnGenius Cloud Managed Wi-Fi 7 2x3x3 Access Point ECW516L is a cost-effective model designed for small businesses. It support tri-concurrent 802.11be architecture, delivering speeds up to 700 Mbps on the 2.4GHz, 4,300 Mbps on the 5GHz, and 8,700 Mbps on the 6GHz band, providing high-performance connectivity. With seamless integration into the EnGenius Cloud platform, it offers easy management and robust security through WPA3, making it an ideal solution for businesses seeking enterprise-grade performance at an affordable price.

  • Wi-Fi 7 Technology: Tri-concurrent 802.11be architecture with backward compatibility for legacy Wi-Fi devices.
  • High-Performance Speeds: Delivers 8,700 Mbps (6GHz), 4,300 Mbps (5GHz), and 700 Mbps (2.4GHz) throughput.
  • Advanced Security: Integrated WPA3 and WPA2-AES authentication protection.
  • Professional-Grade Antenna: 5 dBi integrated system with 2x2 (2.4GHz) and 3x3 (5GHz/6GHz) configuration.
  • Versatile Connectivity: 2.5GE PoE+ port for power and high-speed networking.
  • Cloud Management: Free local and remote management via EnGenius Cloud.
  • Flexible Deployment: Multiple operating modes with AP, STA, and Mesh support.

Technical Specifications

Standards

IEEE 802.11be on 2.4 GHz

IEEE 802.11be on 5 GHz

IEEE 802.11be on 6 GHz

Backward compatible with 802.11a/b/g/n/ac/ax

IEEE 802.3 u/ab

Antenna

2 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)

3 x 5 GHz: 5 dBi(Integrated Omni-Directional)

3 x 6 GHz: 5 dBi(Integrated Omni-Directional)

Scanning Radio

N/A

BLE

N/A

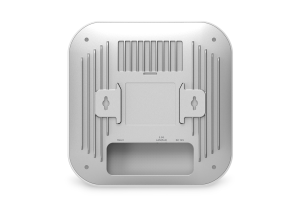

Physical Interfaces

1 x 2.5GE Port (PoE+)

1 x DC Jack

1 x Reset Button

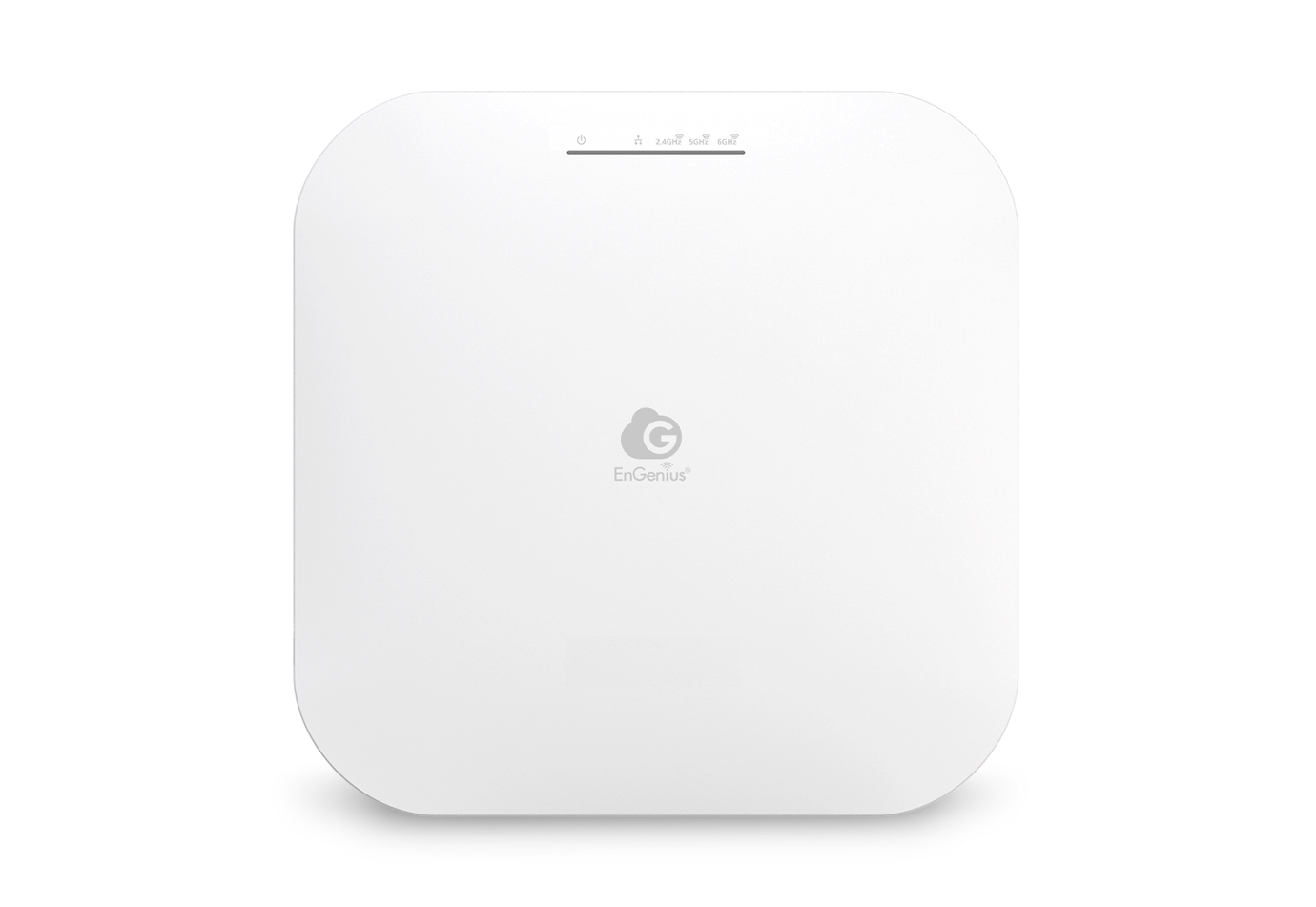

LED Indicators​

1 x Power

1 x LAN

1 x 2.4 GHz

1 x 5 GHz

1 x 6GHz

Power Source

Power-over-Ethernet: 802.3at Input

12VDC /2A Power Adapter

Maximum Power Consumption

20.7W

Wireless & Radio Specifications

Operating Frequency

Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5925-7125MHz

Transmit Power

Up to 22 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
Up to 22 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

2 x 2:2
3 x 3:3

SU-MIMO Capability

Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Three(3) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with HE160 to a 3×3 wireless device under the 5GHz radio.
Three(3) spatial stream Single User (SU) MIMO for up to 8,700 Mbps wireless data rate with EHT320 to a 3×3 wireless device under the 6GHz radio.

MU-MIMO Capability

Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Three(3) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with HE160 to a 3×3 wireless device under the 5GHz radio simultaneously.
Three(3) spatial stream MU-MIMO for up to 8,700 Mbps wireless data rate with EHT320 to a 3×3 wireless device under the 6GHz radio simultaneously.

Supported Data Rates

802.11be:
2.4 GHz: Max 700 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: Max 4,300 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: Max 8,700 (MCS0 to MCS13, NSS = 1 to 4)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 1,800 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: 18 to 3,600 (MCS0 to MCS11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256- QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

DFS Certification

FCC/CE/IC

AirGuard (WIPS/WIDS)

N/A

Zero-wait DFS

N/A

Dedicated Scanning Radio

N/A

Max Concurrent User

128 Per radio

Client Balancing

Yes

Auto Channel Selection

Yes

Management Features

Multiple BSSID

8 SSIDs on both 2.4GHz and 5GHz bands

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliance With IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK
WPA3-PSK
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control

Interface

IPv4

Local Web Access

Supports HTTP or HTTPS

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

Weight

TBD

Dimensions

Width: 205mm
Length: 205mm
Height: 33mm

Package Contents

1 – ECW516L Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card

Regulatory Compliance

FCC
CE
IC
UKCA
UK PSTI
AU

Model Comparison

Cloud7 2x3x3 Lite

Cloud6 2x2 Lite

Cloud6 4x4 Lite

Cloud7 2x2x2

Cloud7 4x4x4

Model Number ECW516L ECW210L ECW212L ECW526 ECW536
Wi-Fi Standard Wi-Fi 7 (11be) Wi-Fi 6 (11ax) Wi-Fi 6 (11ax) 11be 11be
Radio 2.4 GHz & 5 GHz & 6GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6 GHz
Max. Data Rates(2.4 GHz) 700 Mbps 600 Mbps 1200 Mbps 700 Mbps 1,400 Mbps
Max. Data Rates(5 GHz) 4,300 Mbps 2400 Mbps 2400 Mbps 2,900 Mbps 5,800 Mbps
Max. Data Rates(6 GHz) 8,700 Mbps - - 5,800 Mbps 11,600 Mbps
Radio Chains 2 x 2:2(2.4GHz), 3x 3:3(5GHz & 6GHz) 2 × 2:2 4 × 4:4 2x2:2 4 × 4:4
Transmit Power on(2.4 GHz) 22 dBm 21 dBm 23 dBm 23 dBm 25 dBm
Transmit Power on(5 GHz) 22 dBm 21 dBm 23 dBm 22 dBm 24 dBm
Transmit Power on(6 GHz) 22 dBm - - 22 dBm 24 dBm
Antenna 2 x 5 dBi (2.4 GHz) ; 3 x 5 dBi (5 GHz) ; 3 x 5 dBi 6 GHz) 2 x 4 dBi (2.4 GHz) ; 2 x 5 dBi (5 GHz) 4 x 5 dBi (2.4 GHz) ; 4 x 5 dBi (5 GHz) 2 x 5 dBi Omni (2.4 GHz); 2 x 6 dBi Omni(5 GHz); 2 x 6 dBi Omni(6 GHz); 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz);
Power-over-Ethernet 802.3at 802.3af 802.3at 802.3at 802.3bt
Scanning Radio - - - - -
BLE - - - - -
Power Consumption (Peak) - - - - -
Ethernet Ports 1x 2.5GE PoE+ port 1x GE PoE port 1x 2.5GE PoE+ port 1x 10GE PoE+port 1x 10GE PoE++port / 1x 10GE port
Mounting Type Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceiling
Dimensions 205 x 205 x 33 mm 160 x 160 x 30 mm 205 x 205 x 33 mm 190 x 190 x 39.5 mm 230 x 230 x 39.5mm
Mesh Technology Yes Yes Yes Yes Yes
Cloud To-Go app Yes Yes Yes Yes Yes
EnWiFi app - - - - -
View
View
View
View
View
Videos
  • Manage & Visualize Your Network in EnGenius Cloud

    Sign up/sign in to the EnGenius Cloud portal here: https://cloud.engenius.ai/

  • How to Register Accounts & Connect Devices on EnGenius Cloud

    Sign up/sign in to the EnGenius Cloud portal here: https://cloud.engenius.ai/

  • How to Build Company Networks in EnGenius Cloud

    Visualize your networks with the AI-Driven EnGenius Cloud here: https://www.engenius.ai/cloud

  • EnGenius Cloud Solution Video

    Experience unprecedented ease and efficiency in network management

chat-icon
Type
Name
Version
Release Date
Download
Checksum
Data Sheet Cloud7 2x3x3 Lite_ECW516L Datasheet v1.2 April 23, 2025
Firmware Cloud7_2x3x3_Lite_ECW516L_firmware_v1.1.0-24.bin v1.1.0 November 20, 2024
Firmware Cloud7_2x3x3_Lite_ECW516L_firmware_v1.1.1-9.bin v1.1.1 January 15, 2025
Firmware Cloud7_2x3x3_Lite_ECW516L_firmware_v1.1.2-10.bin v1.1.2 March 27, 2025
Data Sheet Cloud Managed Access Points Datasheet v5.5 June 05, 2025
Quick Guide Cloud7 2x3x3 Lite_ECW516L_QSG_EN v1.0 April 17, 2025
Firmware Cloud7_2x3x3_Lite_ECW516L_firmware_v1.1.3-2.bin v1.1.3 May 12, 2025
Firmware Cloud7_2x3x3_Lite_ECW516L_firmware_v1.1.4-1.bin v1.1.4 May 15, 2025
Firmware Cloud7_2x3x3_Lite_ECW516L_firmware_v1.1.11-3.bin v1.1.11-3 July 04, 2025
