Broadband Outdoor CPE

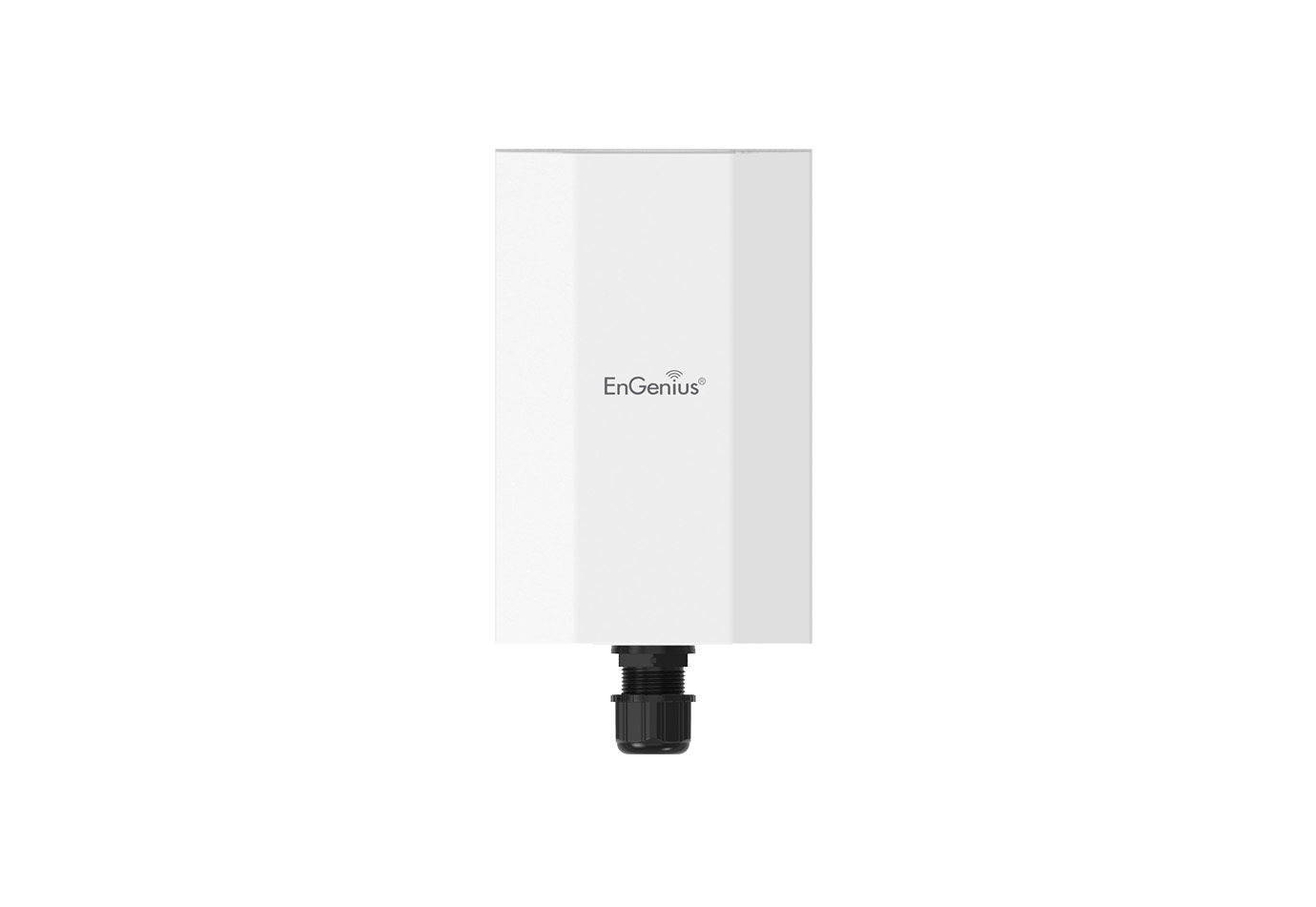

Outdoor 5GHz 2x2 CPE with SMA Connectors

EOC620

Product Highlight

The EnGenius EOC620 802.11 ax 2x2 5GHz Broadband Outdoor Long Range mobile CPE offers reliable and efficient outdoor wireless connectivity with EnGenius proprietary MAC and polling protocal. It features high 26 dBm transmit power with SMA connectors to attach external antenna. It's IP67 weatherproof device suitable for transportation application.

  • Single 5GHz Radio: Offers Upto 1,200 Mbps link capacity, ideal for Dual Sector and repeater mode PtP and PTMP setups deployments, and supports up to 16 devices in PtMP setups.
  • Automatic RF Corrections: Enhance network resilience by improving stability and reducing interruptions.
  • Dynamic Data Rates: Adjusts transmission speeds based on signal quality for reliable and efficient connections.
  • Auto & Dynamic Channel Selection: Automatically chooses optimal channels to avoid interference and enhance signal quality.
  • Superior QoS over RF Links: Prioritizes critical traffic to ensure high service quality and better user experience.
  • Mobile App Radio Tuning: Integrates a 2.4GHz radio with a mobile app for easy PtP/PtMP setup, efficient antenna alignment, and streamlined troubleshooting.
  • Enhanced Connectivity: Employs 802.11ax technology with OFDMA, Beamforming, and MU-MIMO for improved throughput and coverage.
  • Multi-Tenant Network Efficiency: Utilizes VLAN, Q-in-Q, and filtering to manage multi-tenant networks effectively and reduce congestion.
  • Centralized NMS: Offers a comprehensive web-based platform for network performance, health, and security management.
  • Auto Provisioning: Streamlines large-scale network deployments with easy, centralized control.
  • Uncompromised Security: Ensures top-tier data protection with AES-256 encryption.
  • IP67-rated weatherproof & dustproof housing.

Technical Specifications

Chipset

IPQ6010+QCN5052, QCA8081

Standards

IEEE 802.11ax on 5 GHz

Memory

DDR3 512MB, Flash 128MB

Antenna

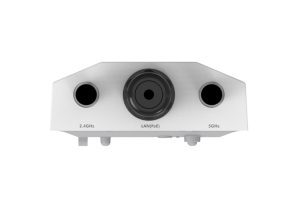

2x 2.4GHz: 5 dBi External SMA

2x 5GHz : 5 dBi External SMA

Physical Interfaces

1 x 2.5GE Port (PoE+)
Proceed reset and reboot when pushing this button

Power Source

Proprietary 54V (EPA5006GR)

Wireless & Radio Specifications

Operation Modes

Base station(BSU)/Subscriber(SU)

Max Subscribers

4

MAC Protocol

Proprietary polling based OFDMA Scheduling Protocol

Frequency Bands

5 GHz: 5150 MHz ~ 5850 MHz

Channel Bandwidth

20 / 40 / 80 MHz

Channel Spacing

5 MHz

Max Transmit Power

Up to 26 dBm (Combined)

Dynamic Data Rate Selection (DDRS)

Automatically detect optimal data rate for given link

Dynamic Channel Selection(DCS)

Selects optimal channel to operate to maintain SLAs (CIR & MIR)

Auto Transmit Power Control ( ATPC)

Automatically adapt the transmit power

Interference Mitigation

Auto Channel Selection(ACS), Dynamic Channel Selection(DCS), Background Scan(BG Scan) features aid to adapt to varying RF medium

Encryption

AES 256

Spectrum Analyzer

Provides RF medium statistics

Radio Chains

2x 2:2

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Ethernet

1 x 2.5GE Port (PoE+)

Speed

10/100/1000/2500Mbps, Half/Full Duplex, Auto Negotiation

Jumbo Frame

9K bytes

PoE Source

Passive 54V / 0.6A

Cable Length

STP Cat5e: MAX 130 meters
FTP Cat6: MAX 180 meters

Surge Protection

1KV

Maximum Power Consumption

PoE: Max. 15.9W

Management Features

SNMP

v1, v2c, v3

Authentication

Internal MAC Address Control List

Traffic Shaping

Downlink and Uplink traffic shaping

Remote

SSH, Web, TFTP, HTTP, HTTPS, Syslog

Smart Phone

Android & IOS based Application for Radio Management

Antenna Alignment

Alignment aid provided via variable audible tone generation algorithm

Operating Mode

Bridging

IP Stack

IPv4

VLAN Tagging

802.1Q: Transparent, Access, Trunk, Q-in-Q

Gateway Features

DHCP Server

MAC-in-MAC

To improve the multicast traffic performance, IGMP Snooping

Ethernet-OAM

N/A

Packet Filtering

MAC, IP, Protocol, Port

NTP Server

Stratum 1 NTP Server using external server – less than 1msec accuracy

Asymmetric Bandwidth Control

Asymmetric UL/DL committed and maximum information rate per Service Flow

Packet Classification Capabilities

802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s

Scheduling

Real Time priority-based services

Environmental & Physical

Temperature Range

Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40º~176ºF/-40ºC~80ºC

Humidity (Non-condensing)

Operating: 90% or less
Storage: 90% or less

IP Rating (Outdoor only)

IP67

Wind loading

165 Kmph

ESD Protection (Outdoor only)

Contact: 4KV Air: 8KV

Weight

720 g

Dimensions

Width: 124 mm
Length: 190 mm
Height: 52.5 mm

Package Contents

1 – EOC620
2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
2 – 2.4GHz 5dBi SMA Antennas
2 – 5GHz 5dBi SMA Antennas
1 – Product Card
1 – EPA5006GR PoE Injector

Safety Compliance

CB

WEEE

Yes

RoHS

Yes

Regulatory Compliance

FCC
CE
IC
UKCA
VCCI

MTBF

100K hours

Model Comparison

Broadband Outdoor CPE

Broadband Outdoor CPE

Broadband Outdoor CPE

Model Number EOC620 EOC610 EOC600
Chipset IPQ6010+QCN5052, QCA8081 IPQ5018+QCN6102, QCA8337 IPQ5018+QCN6102, QCA8337
Radio 5GHz 5GHz 5GHz
Management Radio 2.4GHz 2.4GHz 2.4GHz
Data Rate (2.4 GHz) - - -
Data Rate (5 GHz) 1200 Mbps 1200 Mbps 1200 Mbps
Radio Chains 2 x 2:2 2 x 2:2 2 x 2:2
Tx Power (2.4 GHz) 23 dBm 15dBm 9dBm
Tx Power (5 GHz) 25 dBm 26dBm 26dBm
Antennas (2.4 GHz) 2 x 5 dBi External Omni 3.9dBi 2.12dBi
Antennas (5 GHz) 2 x 5 dBi External Omni 19 dBi (Port1: 25°x20°; Port2: 17°x24°) 16dBi (Port1: 40°x20°;Port2: 40°x20°)
Antenna Beamwidth 360 ° Azimuth:25°, Elevation:24° Azimuth:40°, Elevation:20°
Power-over-Ethernet Proprietary 54V Proprietary 54V Proprietary 54V
Ethernet Ports 1x 2.5GE PoE+ port 1x GE Proprietary PoE Port ; 1x GE Port 1x GE Proprietary PoE Port 1x GE Port
Mounting Type Wall/Pole mount Wall/Pole mount Wall/Pole mount
IP Rating IP67 IP55 IP55
Dimensions 124 x 190 x 52.5 mm Φ190 x 38 mm 260 x 84 x 55 mm
Operating Modes Base station(BSU)/ Subscriber(SU) Base station(BSU)/Subscriber(SU) Base station(BSU)/Subscriber(SU)
MU-MIMO Yes Yes Yes
GPS N/A - -
Compass N/A - -
Dying Gasp N/A - -
Mobile app Yes(SkyConnect) Yes(SkyConnect) Yes(SkyConnect)
