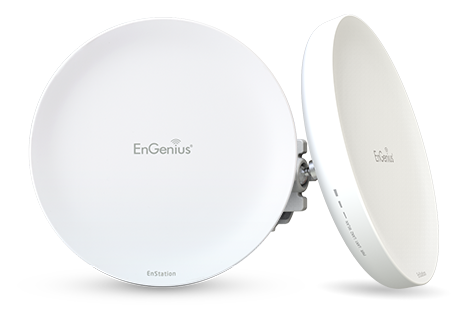

When used with another EnStation2 in a Point-to-Point deployment, internal 13 dBi directional antennas are ideal for point-to-point applications that need to cover short or long distances, up to 5 miles, where Ethernet or even Fiber cabling is not possible or practical.
IEEE 802.11b/g/n on 2.4 GHz
Memory: 64 MB
Flash Memory 16 MB
Internal Directional Antennas
13 dBi on 2.4 GHz
Horizontal Beam Width: 67°
Elevation Beam-Width: 33°
2 x 10/100 Fast Ethernet Ports
1 x Reset Button
1 x Power
WLAN (Wireless Connection)
2.4 GHz
2 x LAN
PoE injector (EPA2406GP)
100V~240V AC, 50-60Hz
0.4A @ 120V AC
Surge Protection: 1KV
ESD Protection
Contact: 4KV
Air: 8 KV
Wall Mount
Pole Mount
IP55-Rated Enclosure
2.4GHz
Access Point
Client Bridge
Client Router
WDS: AP, Bridge
2.4GHz: 2400MHz ~ 2835MHz
Up to 15 dBm on 2.4 GHz
Max transmit power is limited by regulatory power
2 x 2:2
2.4 GHz: Max 300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11n: Orthogonal frequency-division Multiplexing (OFDM)
802.11n with 5/10/20/40 MHz channel width
802.11b/g with 5/10/20 MHz channel width
802.11b: BPSK, QPSK, CCK
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
AP Client Limiting
VLANs for AP – Multiple SSIDs
Wi-Fi Scheduler
Traffic Shaping
Client Traffic Status
RADIUS Accounting
Distance Control (Ack Timeout)
Multicast Supported
Supports up to 4 SSIDs
Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
Compliant with IEEE 802.11e Standard
WMM
v1, v2c, v3
I/II, Private MIB
Standalone (Individually Managed)
Web Interface (HTTP)
CLI (Telnet)
Auto Reboot
Firmware Upgrade
WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C
Operating: 90% or less
Storage: 90% or less
Weight: 1.11 lbs. (460 g)
Depth: 7.48” (190 mm)
Height: 1.50” (38 mm)
– EnStation2 Outdoor AP
– PoE Injector (EPA2406GP)
– Pole Mount Ring
– Mounting Screw Set
– Quick Installation Guide
FCC
IC
