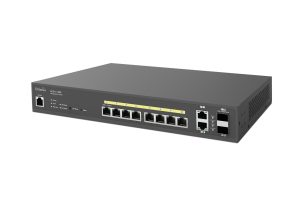

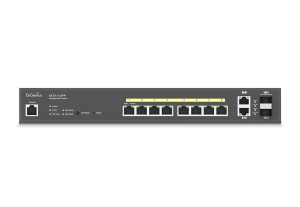

CloudSwitch L2Plus 8 Full PoE
EnGenius クラウド管理型レイヤー2+ スイッチ ECS1112FP は、8つのギガビットPoE+ポートに加え、2つの10/100/1000BASE-Tアップリンクポートと2つのSFPアップリンクスロットを搭載しており、これらは同時に独立して利用できます。また、130WのPoEバジェットを備え、中小企業に最適です。ゼロタッチプロビジョニングとクラウド集中管理に対応し、高度なセキュリティ機能、Voice-VLAN、PoE拡張モードを備え、高品質な音声およびビデオトラフィックのネットワーク効率を最適化して、中小企業のピークパフォーマンスを実現します。
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
10×10/100/1000 Mbps Ports + 2x SFP Ports
24 Gbps
256 MB
32 MB
1-8
130w
100 ~ 240VAC, 50-60Hz
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
EnGenius Cloud
Local Web GUI
8K
10K
Max 256 groups
MLD Snooping: v1
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Strict / WRR/ Strict + WRR
Port-based bandwidth control (Ingress/Egress)
Max. 256 Entries
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SNMP v1/v2c/v3 Support
RMON 1,2,3,9
Time Setting/Daylight saving
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
20 IPv6 address
Max. 192 ARP entries
Max. 63 entries
Max. 21 entries
Operating: 32°F to 122°F (0°C to 50°C)
Operating: 5% – 95%
Weight: 1.9 Kg
Width: 330 mm
Length: 229 mm
Height: 44 mm
1x Cloud Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
CloudSwitch L2Plus 8 Full PoE |
CloudSwitch L2Plus 8 PoE |
CloudSwitch L2Plus 24 Full PoE |
CloudSwitch L2Plus 48 Full PoE |
CloudSwitch MGPlus 8 Full PoE |
|
|---|---|---|---|---|---|
| Model Number | ECS1112FP | ECS1008P | ECS1528FP | ECS1552FP | ECS2510FP |
| Switch Class | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ |
| Gigabit Ports | 10 | 8 | 24 | 48 | - |
| Multi-G Ports | - | - | - | - | 8 |
| SFP Ports | 2 | - | - | - | - |
| SFP+ Ports | - | - | 4 | 4 | 2 |
| RJ45 Console Ports | Yes | - | Yes | Yes | Yes |
| PoE Capable Ports | Ports 1 - 8 | Ports 1-8 | Ports 1 - 24 | Ports 1-48 | Ports 1-8 |
| Power-over-Ethernet | 802.3af/at | 802.3af | 802.3af/at | 802.3af/at | 802.3af/at |
| Total PoE Budget | 130W | 55W | 410W | 740W | 240W |
| Form Factor | 13"1U | 9.45 (Desktop) | 19"1U | 19"1U | 13" 1U |
| Switching Capacity | 24 Gbps | 16 Gbps | 128 Gbps | 176 Gbps | 80Gbps |
| Packet Forwarding Rate | - | - | - | - | - |
| MAC Address Table Size | 8k | 8k | 16k | 32K | 16k |
| Packet Buffer Memory | - | 512KB | - | - | - |
| Full load Power consumption | - | 62.05 Watts | - | - | - |
| PoE Extended Mode | - | Yes | - | - | - |
| PD Lifeguard | - | Yes | - | - | - |
| Continuous PoE Power | - | Yes | - | - | - |
| Dimensions | 330 x 230 x 44 mm | 240 x 105 x 27 mm | 440 x 260 x 44 mm | 440 x 310 x 44 mm | 330 x 230 x 44 mm |
| Cloud Managed Mode | EnGenius Cloud | Yes | EnGenius Cloud | EnGenius Cloud | EnGenius Cloud |
| On-premises Managed | - | - | - | - | - |
| Standalone Mode | Yes | Yes | Yes | Yes | Yes |
|
