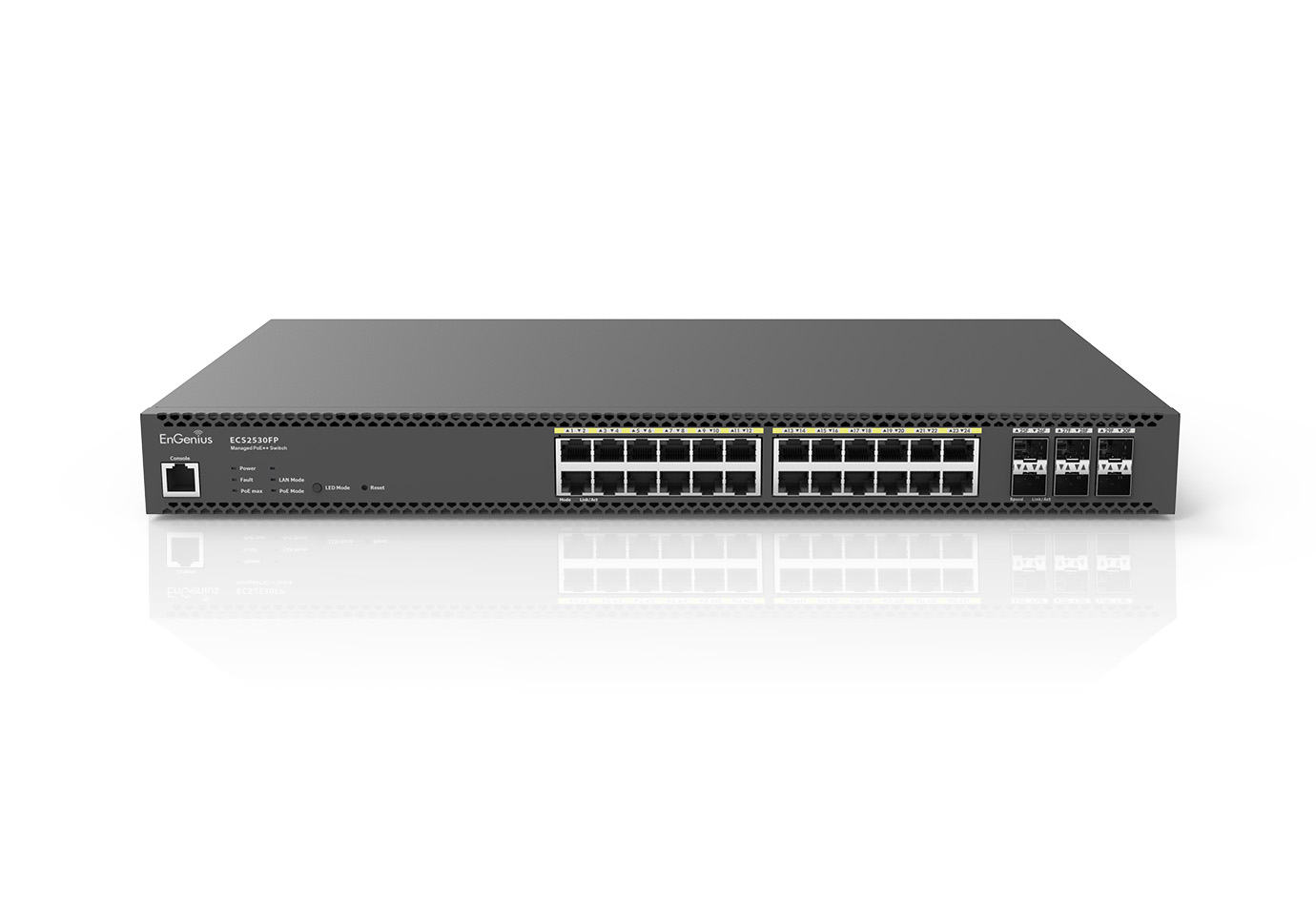

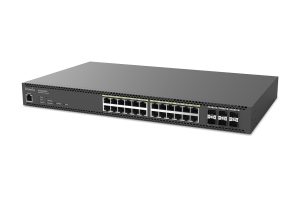

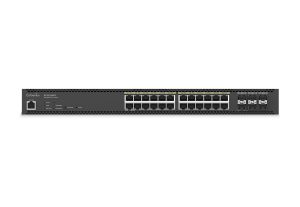

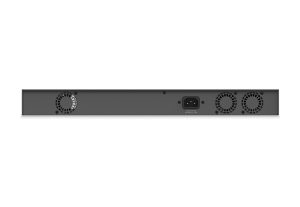

CloudSwitch MGPlus 24 Full PoE 6 SFP+
EnGeniusクラウド管理型 L2+ 2.5ギガマルチギガビットスイッチ「ECS2530FP」は、中小規模ビジネス（SMB）向けに、使いやすくコスト効率に優れたネットワークソリューションを提供します。 本製品は、2.5GbE PoEポート×24（最大給電容量740W）と10ギガSFP+アップリンクポート×6を搭載し、大容量通信を必要とするアプリケーションに対して高速かつ安定したデータ転送を実現します。 ゼロタッチプロビジョニングおよびクラウドを活用した一元管理に対応し、ネットワークの構築・運用を大幅に簡素化し、管理者の作業時間を削減します。
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control
24x 100/1000/2500 Mbps Ports
6x SFP+ Ports
240Gbps
512MB
128MB
Ports 1-16 (802.3af/at), Ports 17-24 (802.3af/at/bt:90w)
740w
100 to 240 VAC, 50/60Hz
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
20 IPv6 address
Max. 192 ARP entries
Static 192 ARP entries
Max. 63 entries
Max. 21 entries
EnGenius Cloud
Local Web GUI
16k
10K
Max 256 groups
MLD Snooping: v1
Queue 8
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Strict / WRR/ Strict + WRR
Port-based bandwidth control (Ingress/Egress)
Max. 256 Entries
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SNMP v1/v2c/v3 Support
RMON 1,2,3,9
Time Setting/Daylight saving
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast/Unknown Unicast Storm Control
Operating: 32°F to 122°F (0°C to 50°C)
Operating: 5% – 95%
Weight: 4 kg
Width: 260mm
Length: 440mm
Height: 44mm
1x Cloud Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
CloudSwitch MGPlus 24 Full PoE 6 SFP+ |
CloudSwitch MGPlus 8 Full PoE |
|||
|---|---|---|---|---|
| Model Number | ECS2530FP | ECS2510FP | ||
| Switch Class | Layer 2+ | Layer 2+ | ||
| Gigabit Ports | - | - | ||
| Multi-G Ports | 24x 2.5G | 8 | ||
| SFP Ports | - | - | ||
| SFP+ Ports | 6 | 2 | ||
| QSFP28 Ports | - | - | ||
| MGNT Port | - | - | ||
| RJ45 Console Ports | Yes | Yes | ||
| PoE Capable Ports | Ports 1-16 at ; Ports 17-24 bt | Ports 1-8 | ||
| Power-over-Ethernet | 802.3af/at/bt | 802.3af/at | ||
| Total PoE Budget | 740w | 240W | ||
| Form Factor | 19” 1U | 13" 1U | ||
| Switching Capacity | 240Gbps | 80Gbps | ||
| Packet Forwarding Rate | 178.57 Mpps | 59.52 Mpps | ||
| MAC Address Table Size | 16k | 16k | ||
| Packet Buffer Memory | 1.5MB | 512KB | ||
| Full load Power consumption | - | 270.47 Watts | ||
| PoE Extended Mode | - | - | ||
| PD Lifeguard | Yes | - | ||
| Continuous PoE Power | Yes | - | ||
| Dimensions | 440mm x 260mm x 44mm | 330 x 230 x 44 mm | ||
| Cloud Managed Mode | Yes | Yes | ||
| On-premises Managed | Yes | Yes | ||
| Standalone Mode | Yes | Yes | ||
|
