Gateway5 4mG

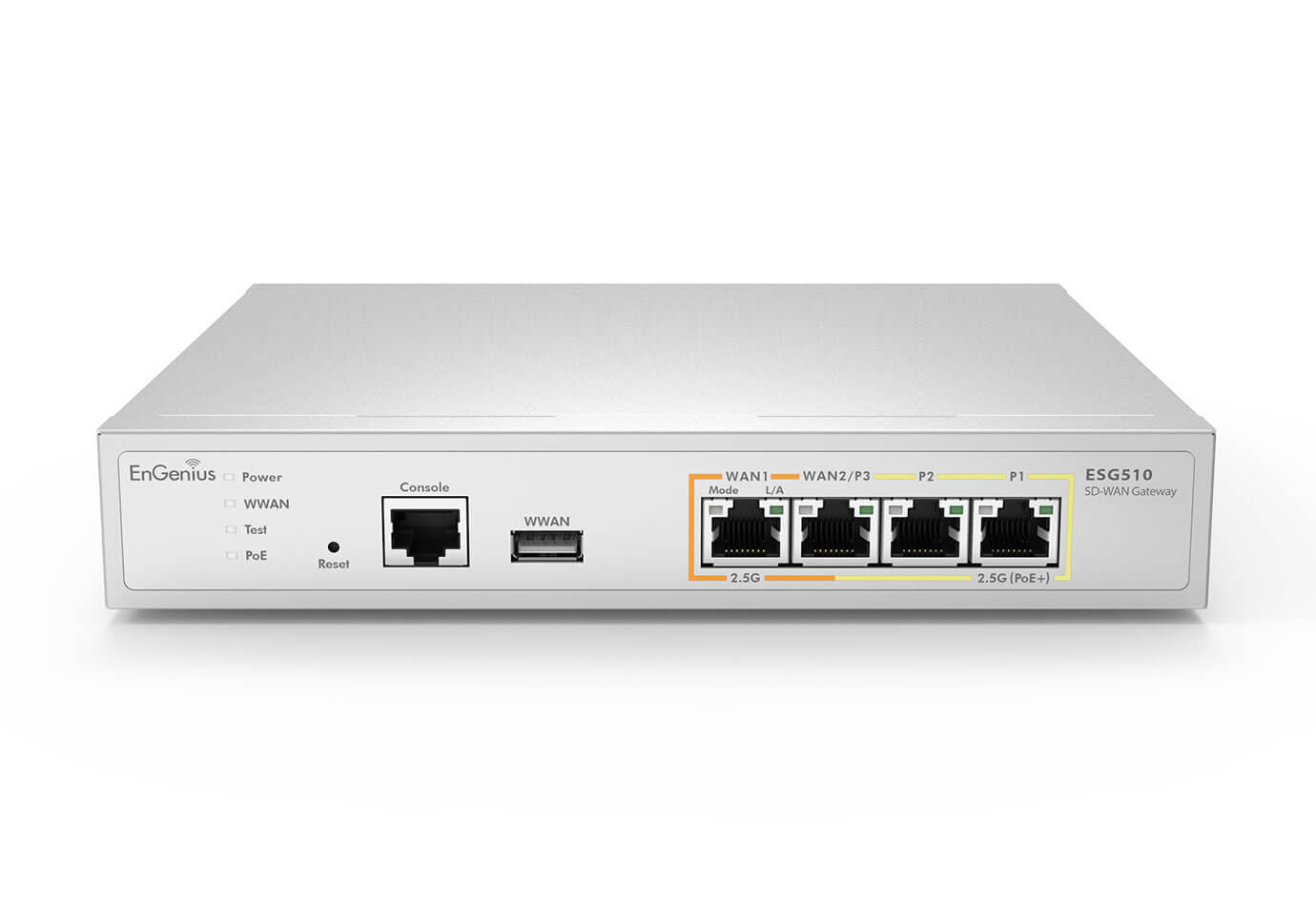

EnGenius ESG510 クラウド管理型VPNファイアウォールは、ロードバランシング、デュアルWAN、サイト間VPNなどの高度な機能を備えた高性能ネットワークソリューションを提供します。EnGenius Cloudを通じて統合管理が可能で、どこからでも簡単に設定および管理できます。ネットワークパフォーマンスとセキュリティを強化したい企業に、包括的なエンドツーエンドソリューションを提供します。
Quad Core
1.6GHz
4GB
8GB
4×2.5G
–
1
802.3 af/at
1 x RJ-45 console
1 x USB 3.0
Wall mount
TPM
4G
970M
200
250
1,000,000
96
Stateful Packet Inspection
Policy Rules
Port Forwarding
1:1 NAT
Allow Inbound Services
Layer 7 Application Firewall
Mesh VPN/ Hub-and-Spoke
3DES, AES (256/192/128-bit)
MD5, SHA1, SHA2 (256-bit)
IKEv1 (x-auth, mode-config),
IKEv2 (EAP, configuration payload)
Site-to-Site VPN
Client VPN(IPsec/SecuPoint SSL)
Policy-based VPN
IPSec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal
Routed / Passthrough
Dual
Per client/ Per Interface
WAN load balancing with WRR
Static Route
Multiple WANs
USB Cellular
User Authentication
PPPoE
VLAN Tagging
Captive Portal
Custom Splash Page
Dynamic Routing
Bandwidth Limit
Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support
Policy Based Routing
CloudBrink
54V/1.2A
0°C to 40°C
5 to 95% non-condensing
Weight: 2.14 lbs. (0.97k g)
Length: 8.27” (210 mm)
Width: 7.07” (179.5 mm)
Height: 1.38” (35 mm)
Power adapter
Power cord
RJ-45 Console Cable
Wall Mount Kit
Product Card
FCC Part 15 (Class B)
IC
CE EMC
CB
UL
Gateway5 4mG |
Gateway6 8mG 2SFP+ |
|||
|---|---|---|---|---|
| Model Number | ESG510 | ESG620 | ||
| CPU Processor | Quad Core | Quad Core | ||
| Operating Frequency | 1.6GHz | 2.2GHz | ||
| Memory | 4GB | 8GB (v1);4GB (v2) | ||
| Flash Storage | 8GB | 16GB | ||
| RJ-45 Interface | 4 x 2.5G | 8 x 2.5G | ||
| PoE Standard | - | - | ||
| SFP Interface | - | 2 x SFP+ | ||
| PoE ports | - | - | ||
| Security Chip | TPM | TPM | ||
| Firewall (SPI Throughput) | 4G | 7.7G | ||
| Power | 54V/1.2A | Internal 300w power | ||
| VPN throughput | 970M | 1.5G | ||
| Max. Concurrent VPN Tunnels | 200 | 300 | ||
| Mounting Method | Wall mount | Rack mount | ||
| Dimensions | 210 x 179.5 x 35 mm | 330 x 230 x 44 mm | ||
|
